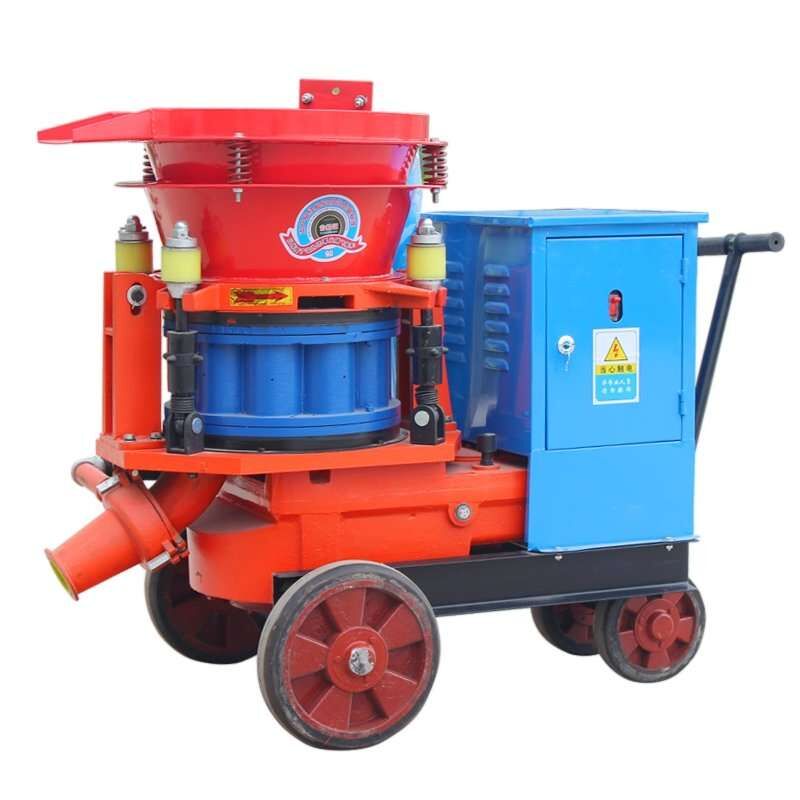

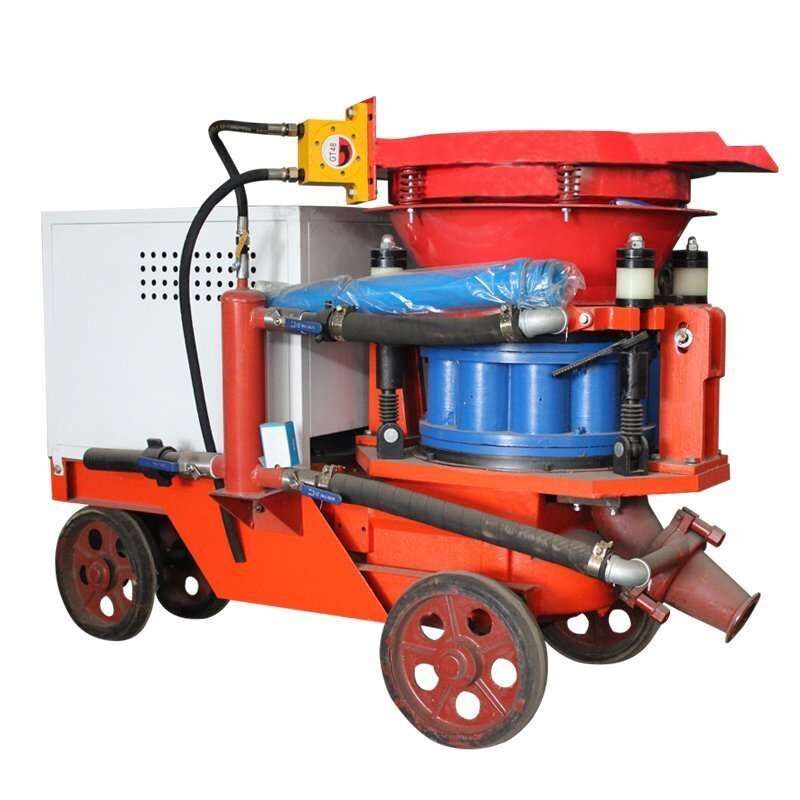

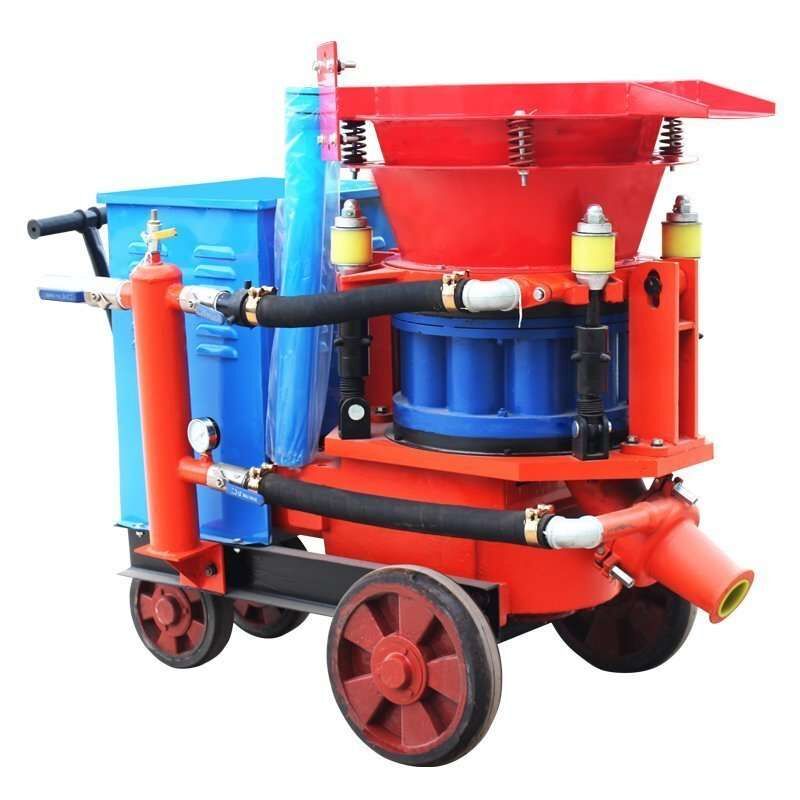

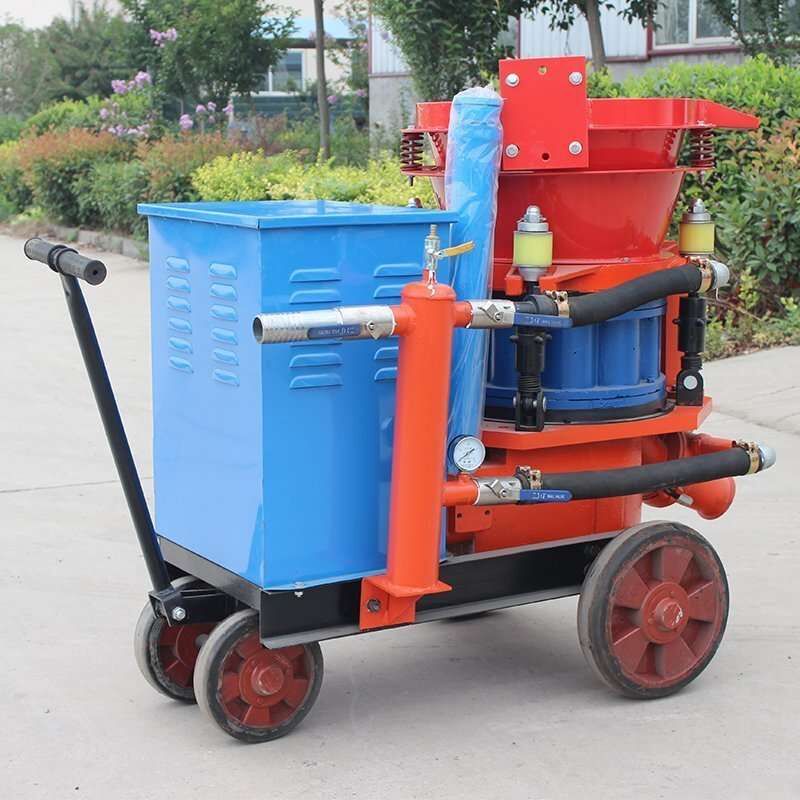

Wet Shotcrete Machine Price

  • Several hosen and nozzle options are available to meet the demands of every gunite/shotcrete spraying application.
  • Driven by electric motor, with ABB frequency converter, flow could be adjustable according to needs
Weight700 kg
Dimensions160 × 75 × 120 cm
Max. conveying distance

200M

Max. aggregate size

20M

Rotor body diameter

440M/480M

Clear

Details about Wet Shotcrete Machine Price

ModelPZ-6PZ-7
Production efficiency6m3/h7m3/h
Water cement ratio applicable materials<0.4<0.4
Max. conveying distance200M200M
Max. aggregate size20m20m
Rotor body diameter440mm480mm
Working pressure0.4-0.6mpa0.6-0.8mpa
Air consumption6-8m3/h7-8m3/h
Motor power5.5kw7.5kw
Size1300*705*1300mm1600*750*1200mm
Weight600kg700kg
