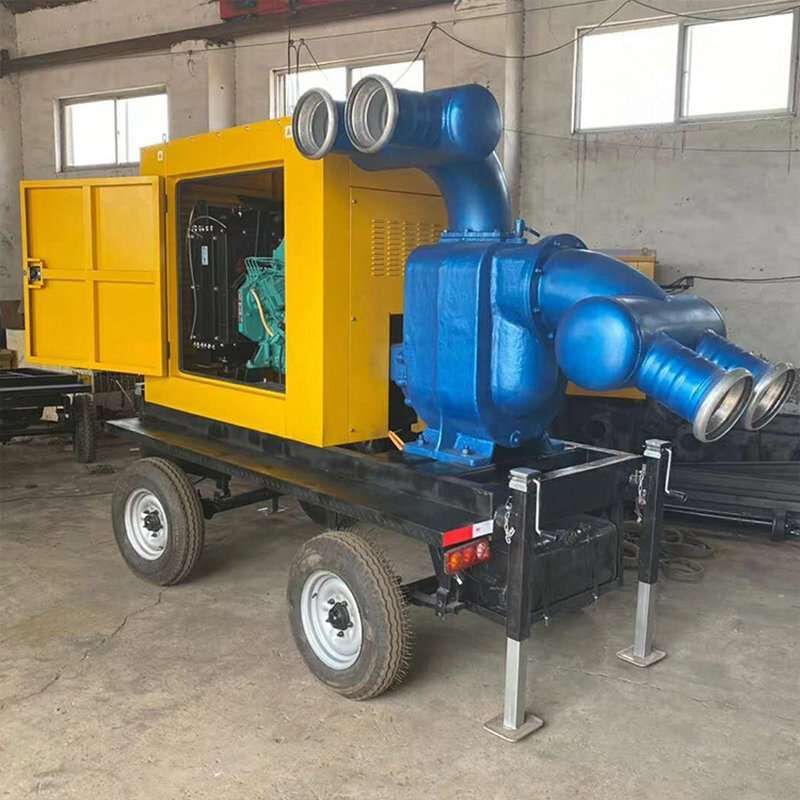

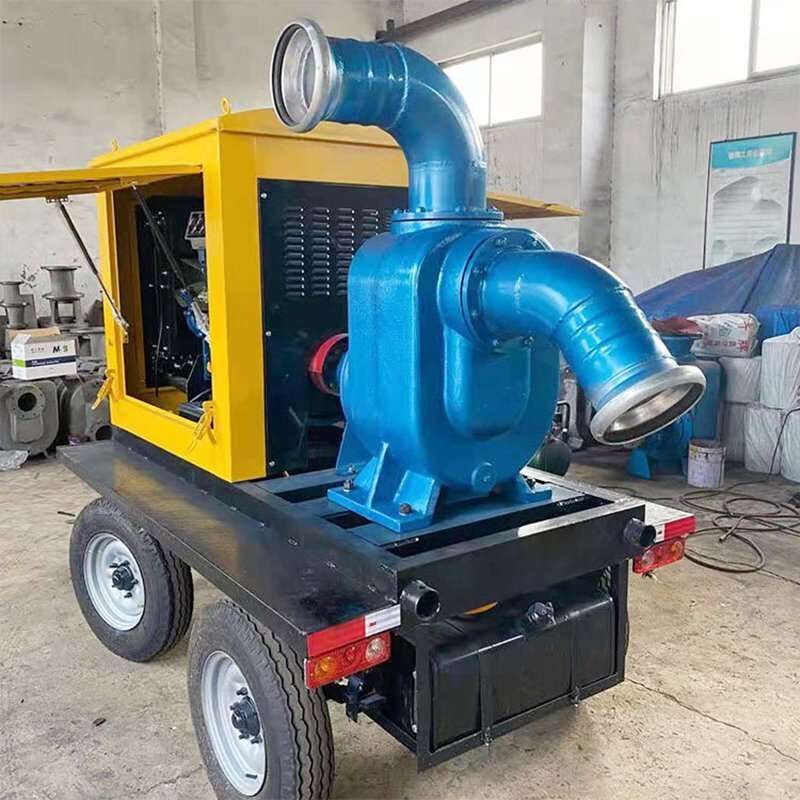

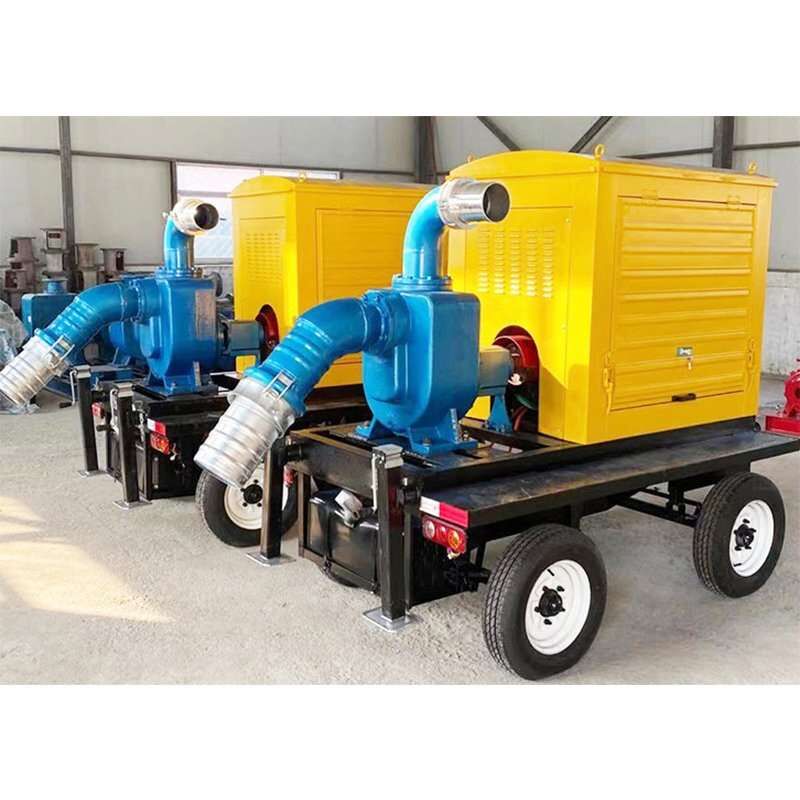

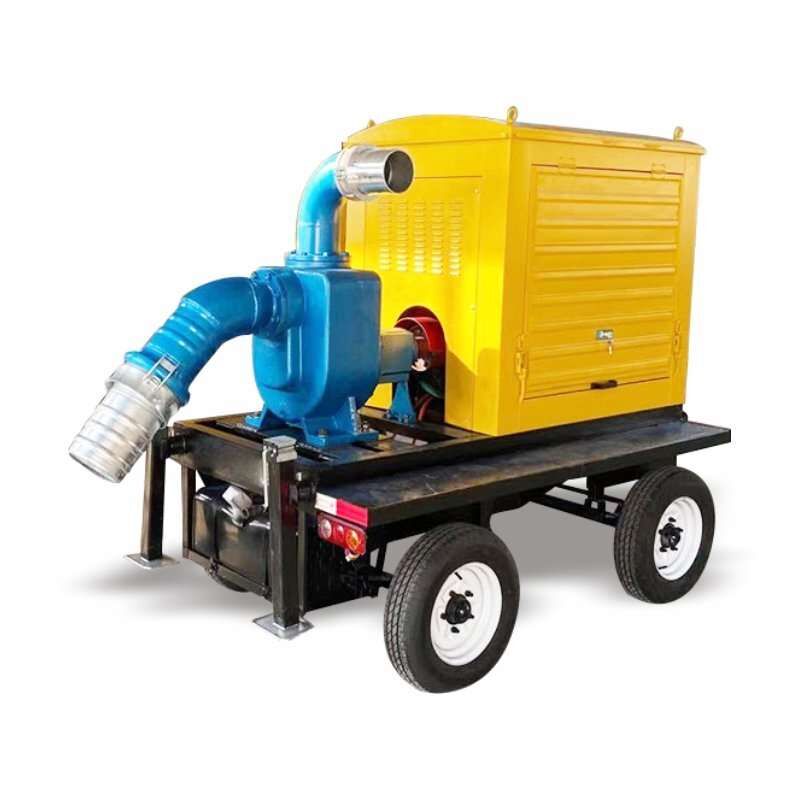

Self-priming diesel flood control water pump
As a set of independent equipment, the diesel engine has a driven pump is equipped with automatic control and emergency functions of the control cabinet, which makes the start and operation process of the diesel engine get rid of the traditional electric pump operation mode, and is more and more favored by customers.
Weight | 200 kg |
---|---|
Dimensions | 100 × 90 × 120 cm |
Max. lift | 40m |
Power | 15KW |
Speed | 2900r/min |
Efficiency | 52% |
Self-priming height | 5.5m |
You may also like
Details about Self-priming diesel flood control water pump
Self-priming non-clogging sewage pump is a new type of pump that integrates self-priming and sewage. It can not only need to install a bottom valve like a general clear water self-priming pump, but also does not need to irrigate and divert water, but also can suck out soil, sediment, etc. containing large particles with a diameter of 60%. The outlet diameter and fiber length are 1.5 times the impeller diameter. Waste ore impurities, excrement treatment, and all engineering sewage and colloidal liquid, completely reduce the labor intensity, easy installation and use, less maintenance, performance has reached the international advanced level, and has a broad application market and development prospects.
Model
|
Flow
|
Max. lift
|
Power
|
Speed
|
Efficiency
|
Self-priming height
|
Weight
|
ID40-25
|
40m³/h
|
25m
|
7.5KW
|
1450r/min
|
50%
|
5.5m
|
200KG
|
ID65-25
|
65m³/h
|
25m
|
7.5KW
|
2900r/min
|
52%
|
5.5m
|
240KG
|
ID40-16
|
40m³/h
|
16m
|
4KW
|
1450r/min
|
50%
|
5.0m
|
240KG
|
ID40-25
|
40m³/h
|
25m
|
7.5KW
|
1450r/min
|
50%
|
5.5m
|
200KG
|
ID25-40
|
25m³/h
|
40m
|
7.5KW
|
2900r/min
|
50%
|
5.5m
|
200KG
|
ID65-25
|
65m³/h
|
25m
|
5.5KW
|
2900r/min
|
52%
|
5.5m
|
240KG
|
ID80-35
|
80m³/h
|
35m
|
15KW
|
2900r/min
|
45%
|
5.5m
|
285KG
|
As a set of independent equipment, the diesel engine has a driven pump is equipped with automatic control and emergency functions of the control cabinet, which makes the start and operation process of the diesel engine get rid of the traditional electric pump operation mode, and is more and more favored by customers.
