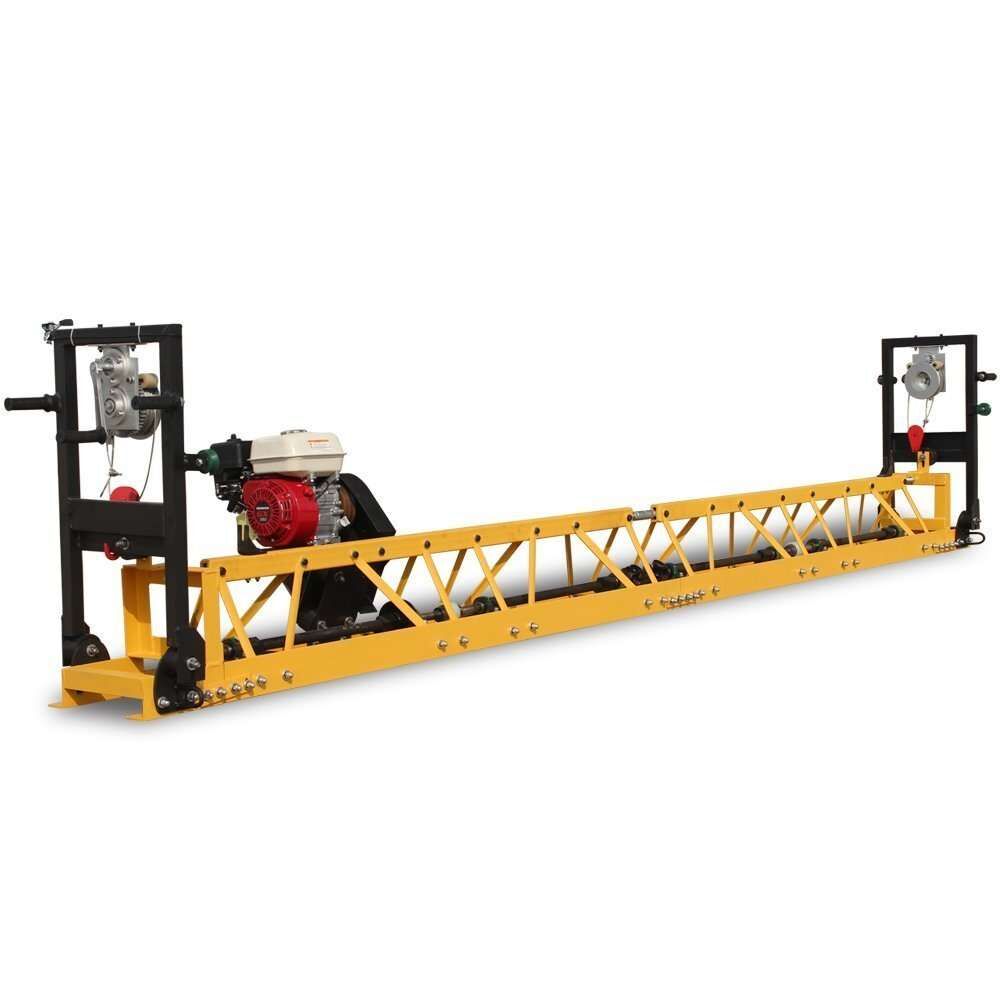

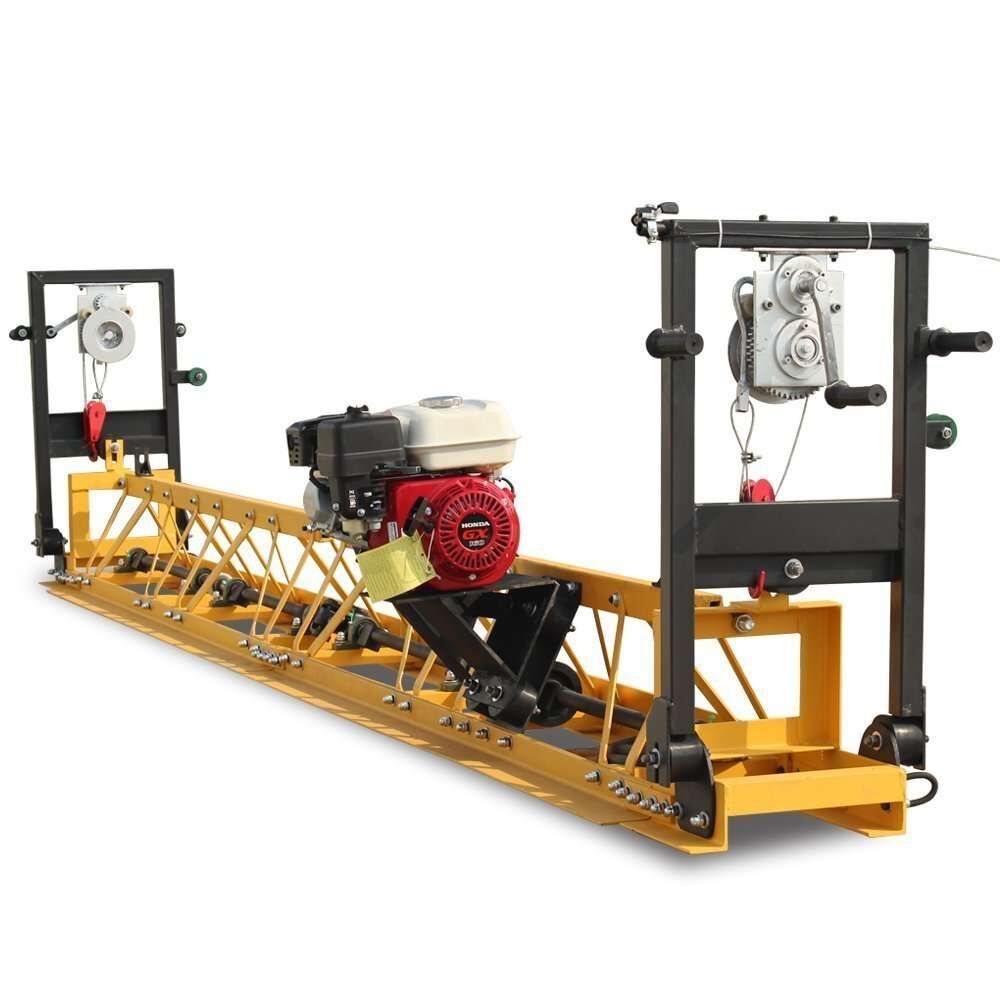

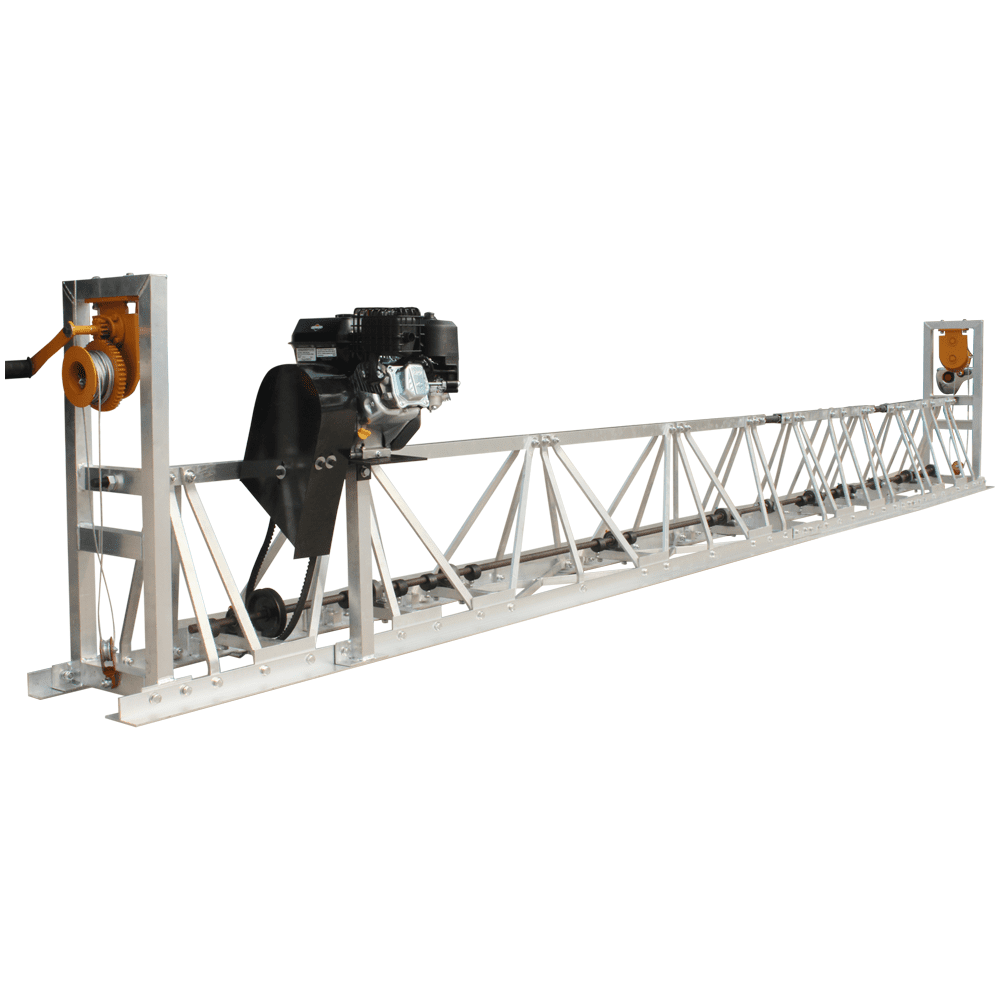

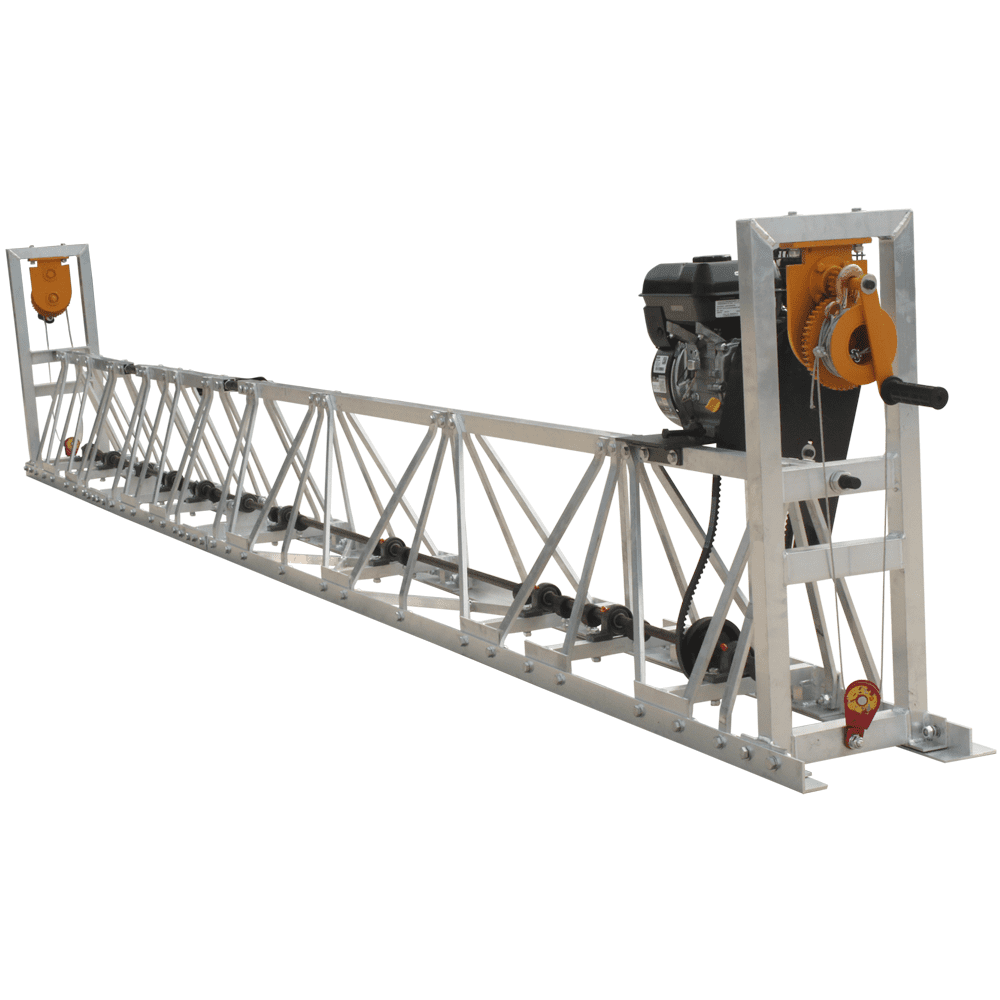

Road concrete vibratory concrete truss screed

Wide working range and high efficiency.

A fully self-contained unit will run on any form such as pipe, wood, block, or metal.

Weight235 kg
Dimensions150 × 100 × 50 cm
Power

5.5hp

Travel Speed

8-10mm

Screed Length

4-18m

Clear

Details about Road concrete vibratory concrete truss screed

ModelTS600ATS600B
Engine ModelAir Cooled,4-cycle, gasolineAir Cooled,4-cycle, gasoline
Engine TypeHonda GX160Honda GX160
Power5.5(hp)5.5(hp)
Max.Rotate Speed3600(rpm)3600(rpm)
Screed Length4-18(m)4-18(m)
Material Of BodyAluminumSteel
Overall SizeL*400*960(mm)L*400*960(mm)
Travel Speed8-10(m/min)8-10(m/min)
Max.Paving Thickness260(mm)260(mm)

Concrete vibratory truss screed is mostly used to pave vibrating impact the concrete surface, bridges concrete surfaces, large parking slurry, and other large of factory concrete surfaces. This is designed with an exact paving system, suitable and perfect for large concrete surfaces. The Max depth of impaction can be up to 20 centimeters.
