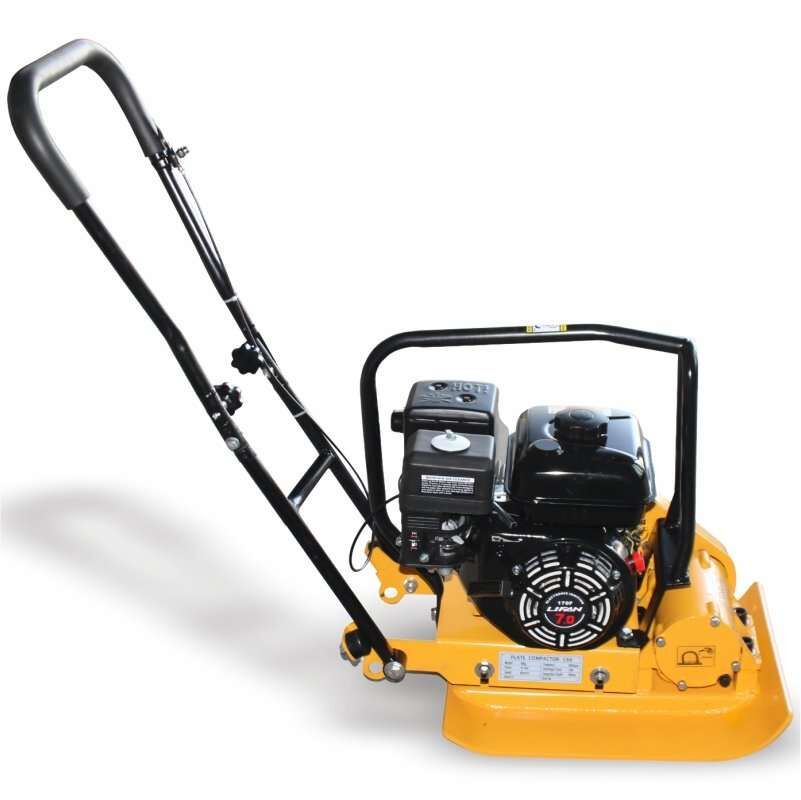

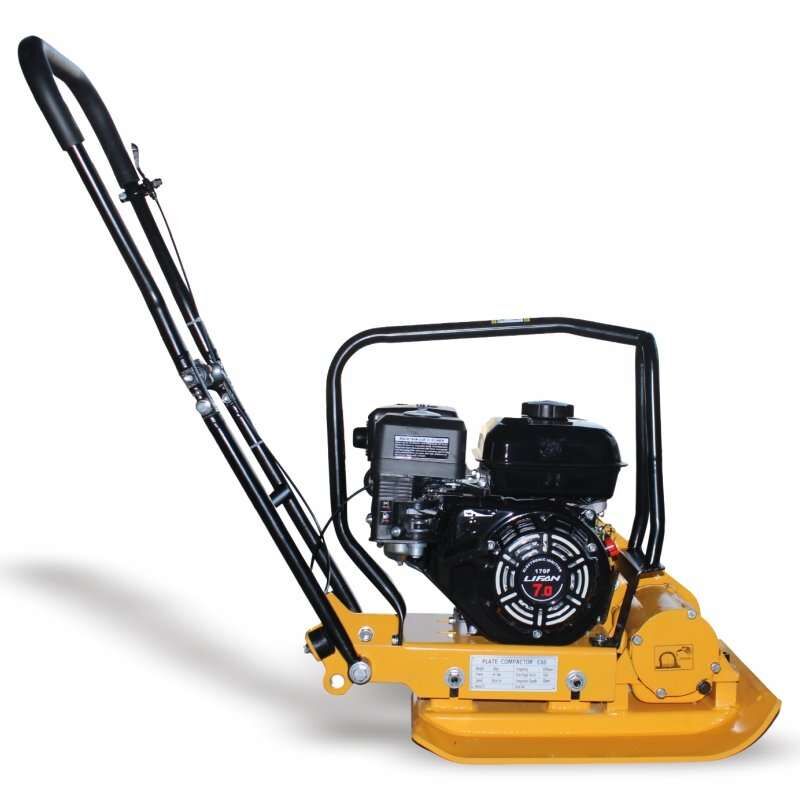

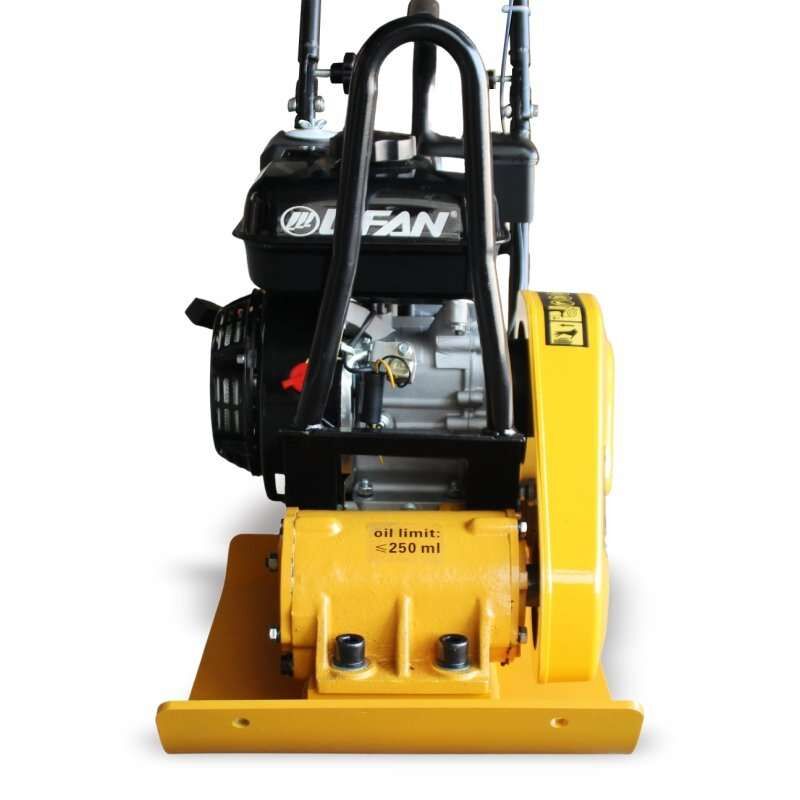

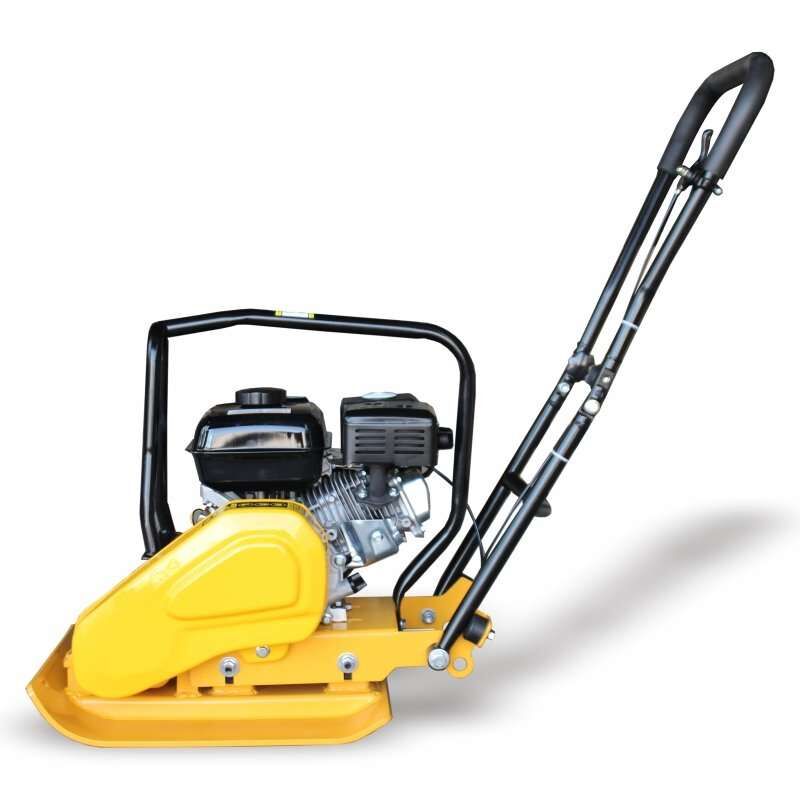

Gasoline engine 5.5hp plate compactor
- A variety of gasoline engines, HONDA, ROBIN, LOCIN can be selected.
- The use of one-piece cast steel baseplate, strong and more durable
- Thickened damping block, natural rubber material, better damping effect
- Seales belt cover to prevent sand and soil in
- The V-belt drive is fully enclosed for better safety and trouble free use.
- Foldable handle for easy transportation and storage.
| 重量 | 65 公斤 |
|---|---|
| 尺寸 | 62 × 49 × 75 厘米 |
| Plate size | 370*510mm |
| Thickness of plate | 8mm |
| Centrifugal force | 12kn |
Details about Gasoline engine 5.5hp plate compactor
|
Model |
PC60
|
PC90
|
HZR160
|
HZR150
|
|
Plate size(mm)
|
550*370
|
510*550
|
650*500
|
420*590
|
|
Centrifugal force
|
10.5KN
|
15KN
|
30KN
|
20KN
|
|
Vibrating frequency
|
5600rpm(95hz)
|
5500rpm(92hz)
|
5500rpm(92hz)
|
5600rpm(95hz)
|
|
Walking speed
|
20-23m/min
|
20-23m/min
|
20-23m/min
|
6-16m/min
|
|
Engine type
|
Honda GX160
|
Honda GX160
|
Honda GX160
|
3phase 380v
|
|
Max. output
|
5.5hp
|
5.5hp
|
5.5hp
|
3kw
|
|
Max. motor speed
|
3600rpm
|
3600rpm
|
3600rpm
|
3600rpm
|
|
Overall size(mm)
|
800*410*650
|
1000*650*750
|
865*500*1120
|
1100*500*950
|
|
Weight
|
63kgs
|
90kgs
|
160kgs
|
125kgs |
Plate compactor can prevent various structural problems such as cracking and leaking walls, foundation erosion, slab issues, and breakage in pipes and improve construction quality. The machine is often used in the small building foundation, various backfill construction, and earth foundation compaction. Suitable for materials with low adhesion and friction between rammed particles, especially for non-viscous sand. The compaction effect of crushed stone is remarkable.
