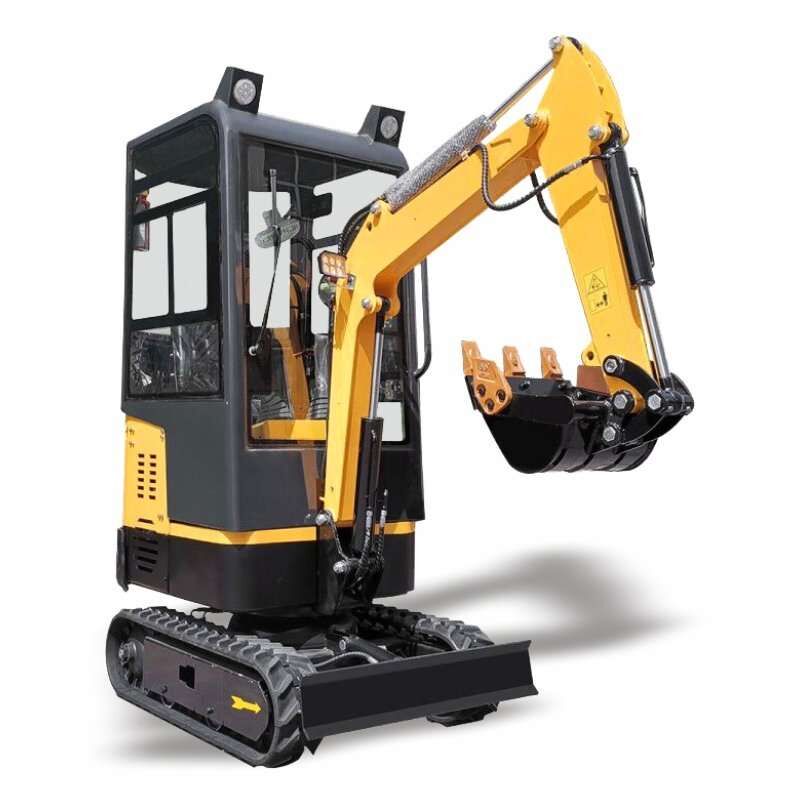

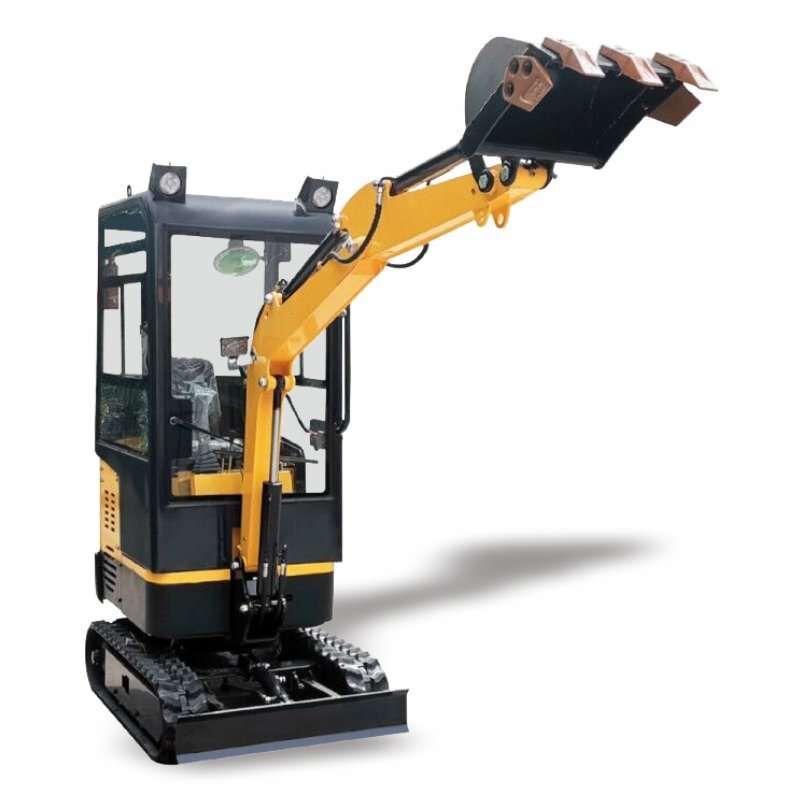

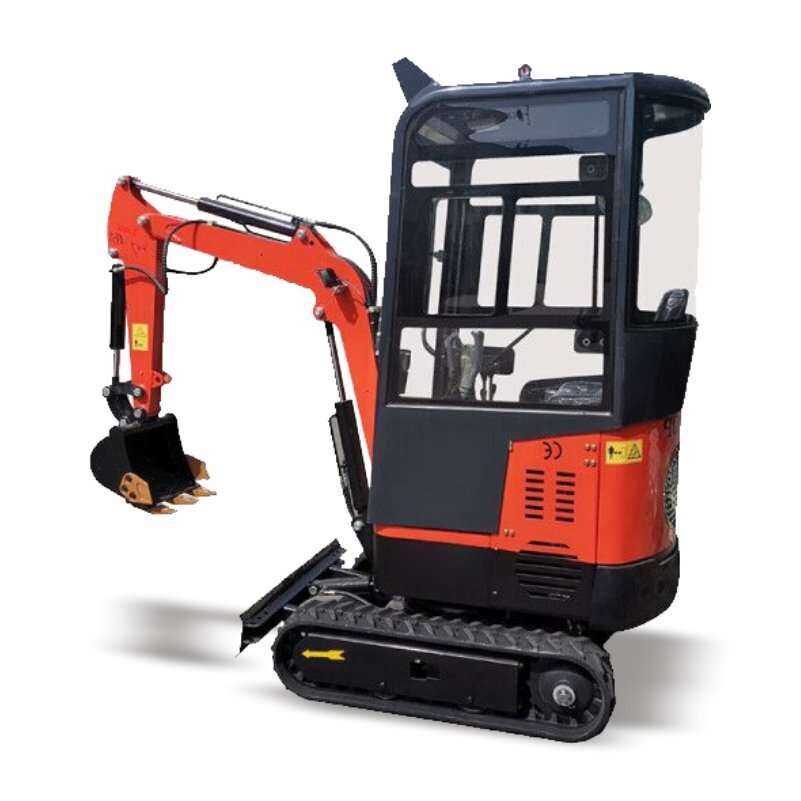

Mini farm cab 1ton excavator

  • Use domestic well-known brand Changchai 192F engine, strong power, and stable working, or popular Koop Engine to meet Europe emission demand.
  • The operation front pipeline is clear. The protective cover protects the pipeline from being destroyed.
  • The boom cylinder adopts a well-known brand. The cylinder is designed integrated, which is more advanced than the welding technology.





Weight1000 kg
Dimensions278 × 93 × 222 cm
Bucket capacilty

0.025cbm/120kg

Bucket width

380mm

Rated power

8.2 kw/3600r/min

Travel speed

1.5kmv/h

Price Range: $4,299.00 - $1000,Stock:More than 100 units in stock

Details about Mini farm cab 1ton excavator

Main Features:

The ID-10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

  1. Engine: CHANGCHAI-192 engine, single-cylinder air-cooled, 12HP, 9KW
  2. Hydraulic pump (gear pump) is easy to maintain, long life
  3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
  4. Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
  5. Rubber track no damage to cement, tile floor
  6. Diesel level gauge: Check engine oil when it is not easy to start
Model
ID-10
Weight
1000kg
Digging bucket capacilty
0.025cbm/120kg
Bucket width
380mm
Engine
CHANGCHAI (192FAM)
Optional Engine
BRIGGS & STRATTONYANMAR, Koop, Yanmar
Bore stroke
Single cylinder, fan cool
Rated power
8.2 kw/3600r/min
Main pump
G5-6
Displacement
6.8ml/r
Swing motor
SANYANG (BMRS -250)
Traveling motor
SANYANG (BMT-245)
Travel speed
1.5kmv/h
Overall dimension( LxWWxH)
2775 x 930 x 2219 mm
Wheelbase
910 mm
Total length of track
1230mm
Platiorm ground dearance
380 mm
Platform back tuming radius
784mm
Chassis widh
896mm
Track width
180 mm
Chassis ground clearance
132mm
Track height
320 mm
Max. Digging depth
1650 mm
Max. Vertical digging depth
1375 mm
Max. Digging height
2610 mm
Max. Dumping height
1850 mm
Max. Digging radius on ground
2850 mm
Min. Rotation radius
1330 mm
Max. Upgrade height of bulldozer blade
345 mm
Max. Digging depth of bulldozer blade
255 mm

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.

Compact Dimensions
With an overall width of only 930mm, the ID-10 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.
Convenient repairs and maintenances.
Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces maintenance costs.

Packing & Shipping

If you need 1-3 units would be a Wooden box package, More than 4 units will loading by the container.

After 3-7 days we will ship your goods when we received the advance payment.

The 20GP can hold 4 (ID-08)mini excavators
