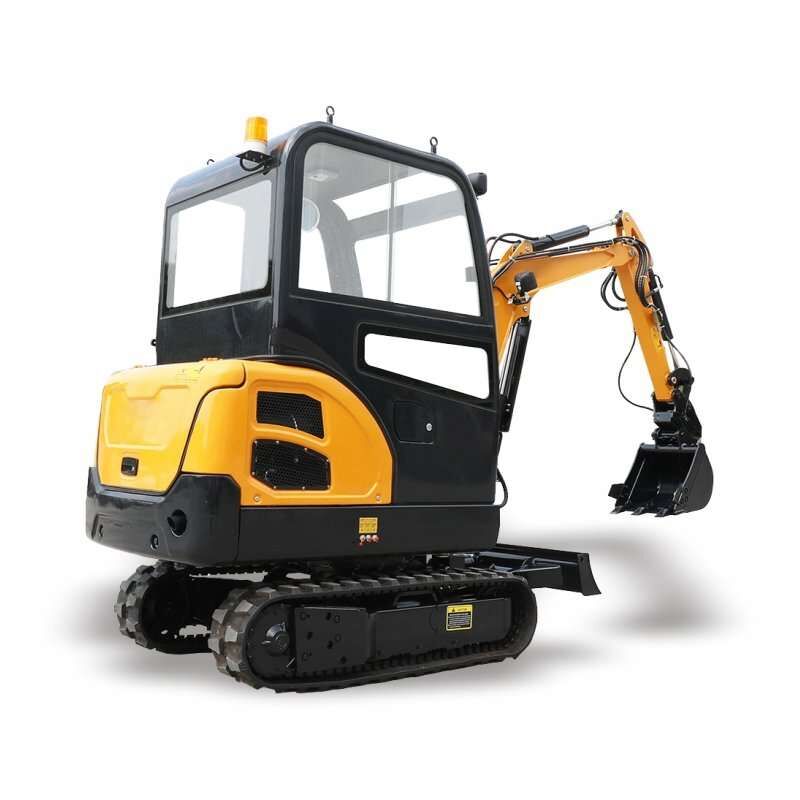

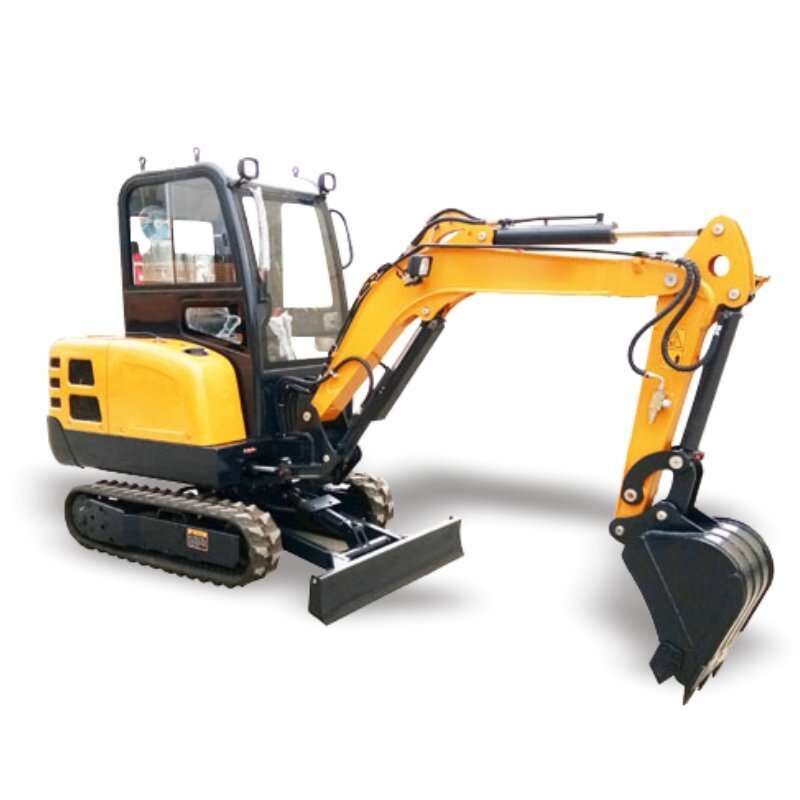

Mini Excavator With CE/EPA/EURO5
- Unique big arm structure design, not easy to break.Thickened steel plate, stronger bearing capacity.
- Flexible work, adapt to a variety of working conditions, especially the construction of narrow areas.
- The machine adds a pressure-reducing valve device, which makes it easier to start when the machine starts.
| Weight | 2200 kg |
|---|---|
| Dimensions | 417 × 130 × 228 cm |
| Bucket capacity | 0.1m³ |
| Max. Grade ability | 30° |
| Travel speed | 3.5km/h |
| Arm length | 1000mm |
You may also like
Details about Mini Excavator With CE/EPA/EURO5
Main Features:
The ID-22 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
- Engine: LAIDONG engine, single-cylinder air-cooled, 25HP, 18.4KW
- Hydraulic pump (gear pump) is easy to maintain, long life
- Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
- Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
- Rubber track no damage to cement, tile floor
- Diesel level gauge: Check engine oil when it is not easy to start
| Model | ID-22 |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on the ground) | 1230mm |
| Track gauge | 1070mm |
| Min. Ground clearance | 230mm |
| Swing radius at the tail | 1180mm |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe | 230mm |
| Number of track shoes per side | 38pcs |
| Number of upper rollers per side | 0 |
| Number of bottom rollers per side | 4 |
| Standard bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Max. Grade ability | 30° |
| Max. Bucket digging force | 15.3KN |
| Max. Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2200kg |
| Arm length | 1000mm |
| Engine Model | Laidong 3TE30 |
| Emission Standard | Euro 5 |
| Power/Rotation speed | 18.4kw(25HP)2000rmp |
| Number of cylinders | 3 |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2290mm |
| Max. Digging depth | 2450mm |
| Max. Vertical digging depth | 2160mm |
| Max. Digging radius | 4370mm |
| Min .swing radius | 2020mm |
| Max. Lifting height of the blade | 240mm |
| Max. Cutting depth of the blade | 310mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.
Compact Dimensions
With an overall width of only 1300mm, the ID-22 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 2200 kg (4,850 lb) weight making easy trailer transportation between sites possible.
Convenient repairs and maintenances.
Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces maintenance costs.
Packing & Shipping
If you need 1-3 units would be a Wooden box package, More than 4 units will loading by the container.
After 3-7 days we will ship your goods when we received the advance payment.
The 20GP can hold 4 (ID-08)mini excavators.
