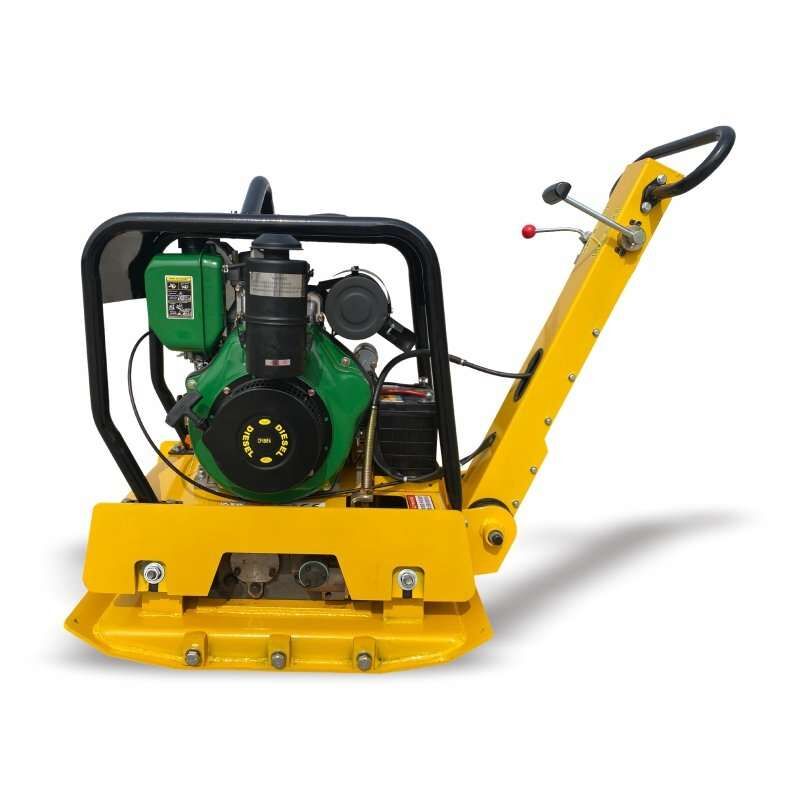

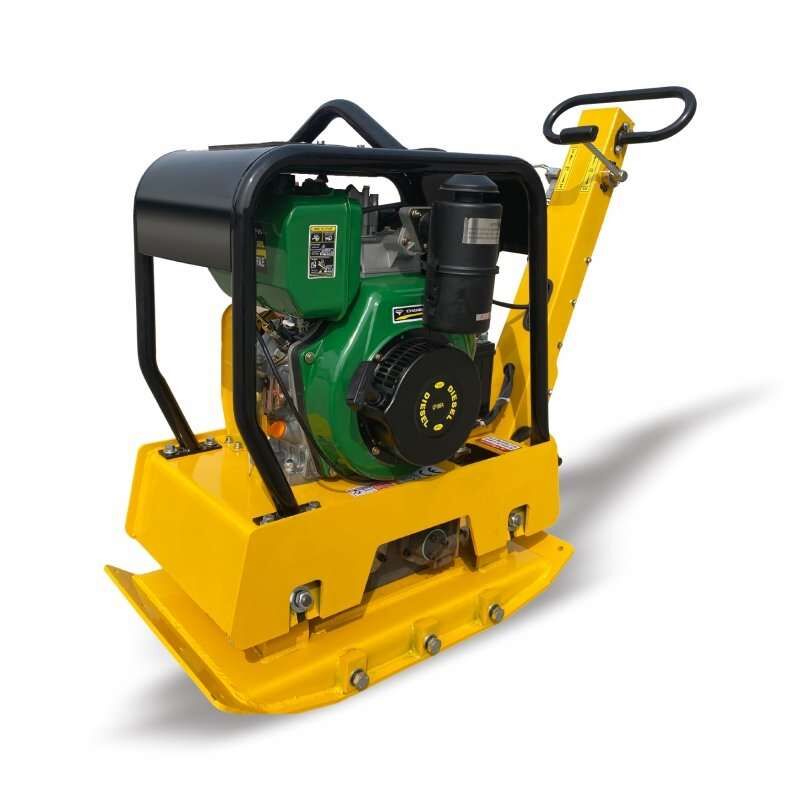

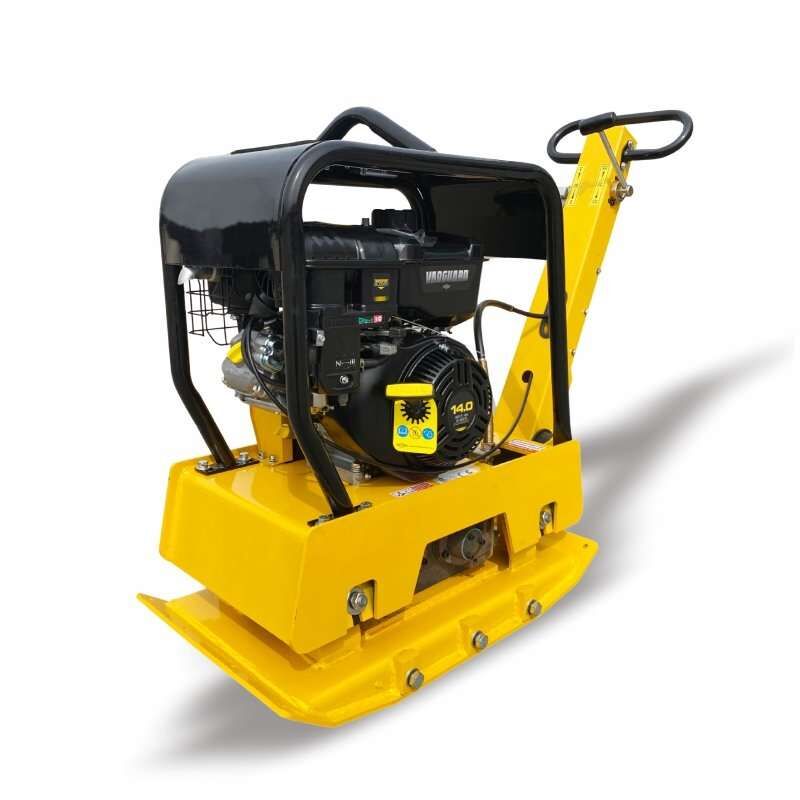

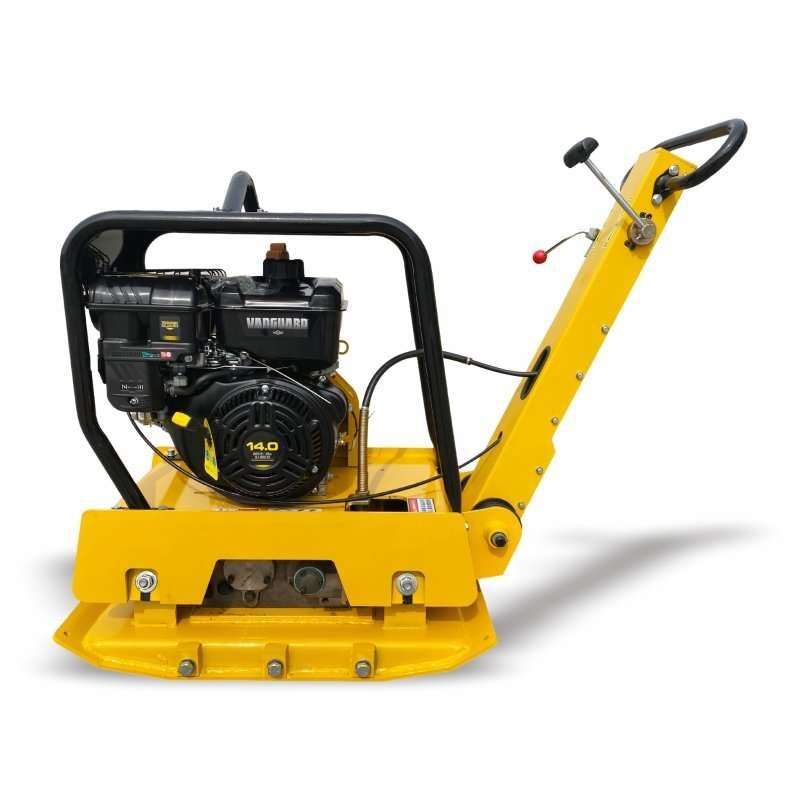

Reversible vibrator plate compactor

  • More utilization. Properly curved edges for easy access to corners during compaction.
  • Comfortable operation. Heavy-duty shock buffer mounts to reduce vibration toward the upper deck and handle.
  • A two-way plate compactor, forward and backward can be used.
Weight 220 kg
Dimensions 80 × 50 × 100 cm
Max.speed

3600rpm

Max.output

13HP

Speed

20-23m/min

Details about Reversible vibrator plate compactor

Model
HZR220
Dimension
800*500*1000mm
Plate size
600*450mm/640*600mm
Centrifugal force
34KN
Working diameter rpm
4000HZ
Speed
20-23m/min
Engine
Air-cooled, 4-cycle, Gasoline
Type
Honda GX390/Changfa 186
Max. output
13hp
Max. speed
3600rpm
Fuel tank
6.5L

Diesel engine: A variety of diesel engines, CHANGFA, CHANGCHAI, BAIRUN can be selected.
Gasoline engine: A variety of gasoline engines, HONDA, ROBIN, LOCIN can be selected.
Thicken plate: The use of a one-piece cast steel baseplate, a strong and more durable
Natural rubber damper: Thickened damping block, natural rubber material, better damping effect
Sealed belt cover: Seales belt cover to prevent sand and soil. The V-belt drive is fully enclosed for better safety and trouble-free use.
Reversible compacting: The handlebar can adjust the direction and can move forward and backward.
