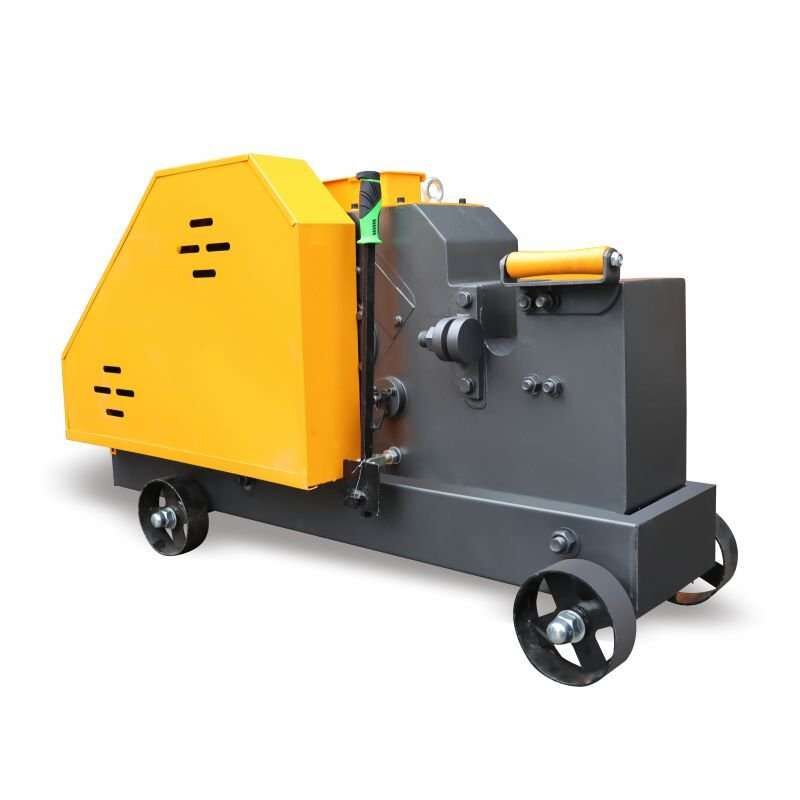

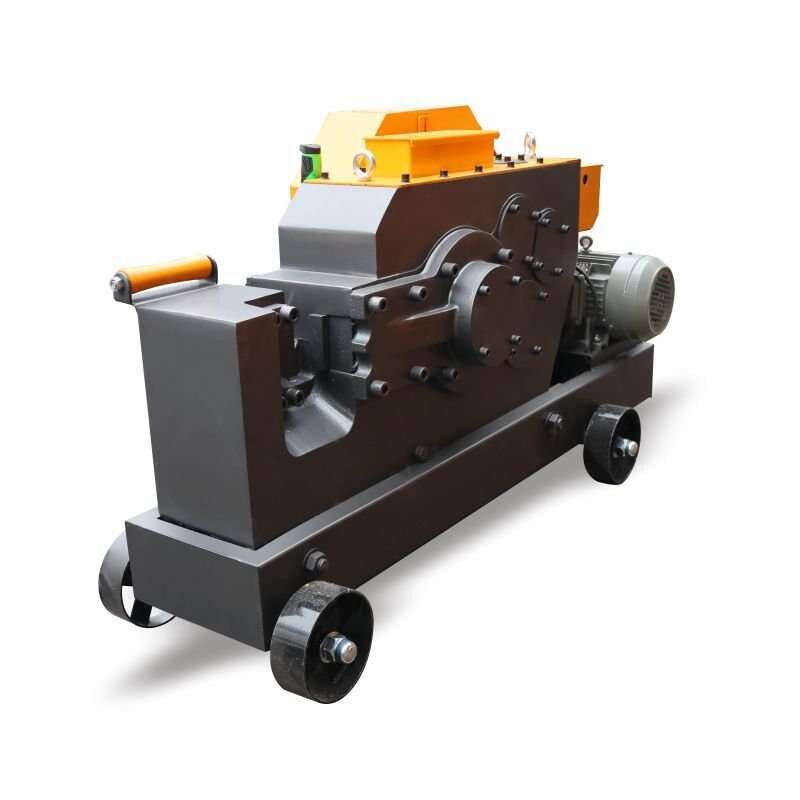

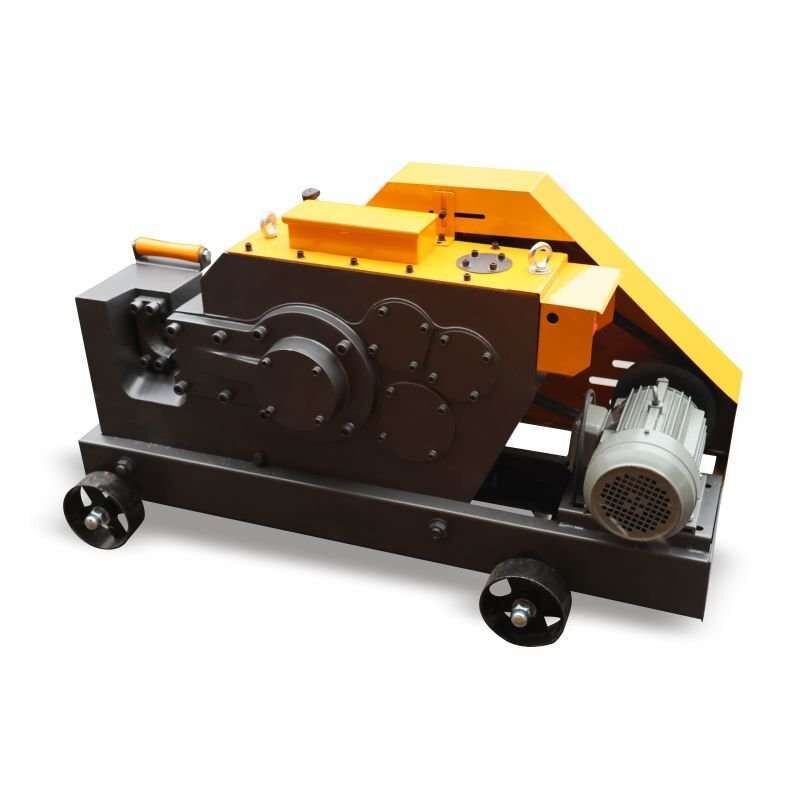

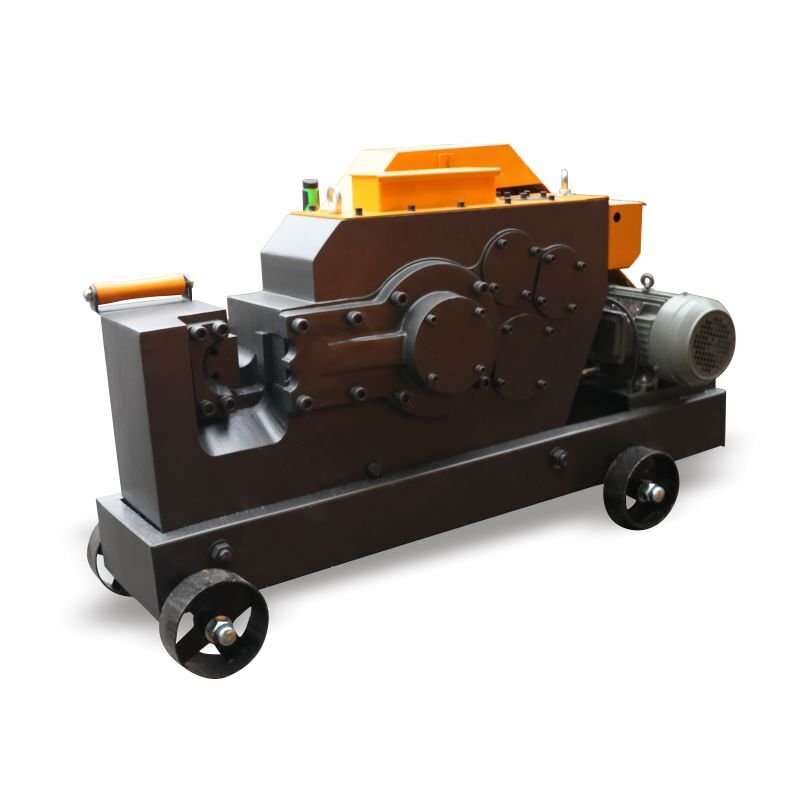

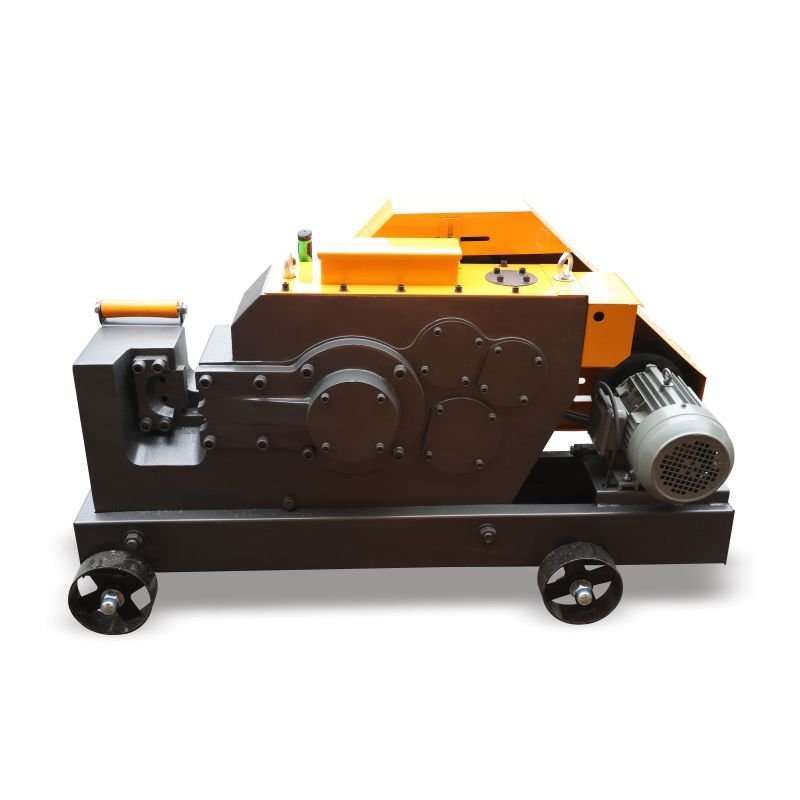

GQ40 40mm steel bar cutting machine

  • High speed: it can cut 32 times per minute.
  • High load-bearing capacity.
  • Durable structure.
  • Heavy-duty cast iron shell.
  • Low noise:lower than 80dB
  •  easy to replace.
Voltage

380VAC

Certification

CE ISO

Power

3KW

Warranty

1 Year

Clear

Details about GQ40 40mm steel bar cutting machine

GQ40 steel bar cutting machine is metal-cutting equipment, which is dedicated to cutting the short section, It is mainly used for fixed-length cutting of steel bar in civil engineering, and it is indispensable equipment in reinforcement processing. The mini rebar cutting machine is made up of the motor, gearbox, reducer, steel bar discharge port, and the machine frame and other components. The scrap mini steel bar cutting machine is driven by a motor and driven by a V-belt to rotate the reducer, and then the reducer is driven by a gearbox to continuously operate the cutter, so as to cut off the reinforcing steel.

ModelGQ40AGQ40BGQ40CGQ40D
Cutting range
(mm)
round bar:6-28
class bar:6-25
round bar:6-32
class bar:6-28
round bar:6-40
class bar:6-32
round bar:6-28
class bar:6-25
Cutting frequency32t/m32t/m32t/m28t/m
Motor power2.2kw3kw3kw3kw
Motor speed2800rpm2800rpm2800rpm2800rpm
Blade size(mm)83*83*1683*83*2683*83*2683*83*26
Overall size(cm)112*33*62135*40*72135*45*75135*45*75
weight300kg320kg350kg380kg
