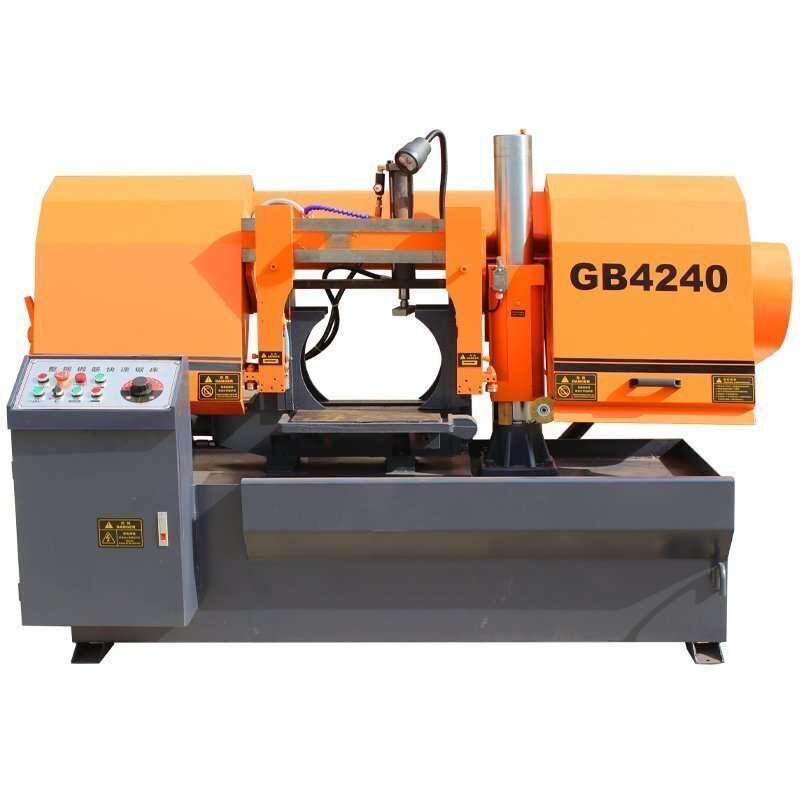

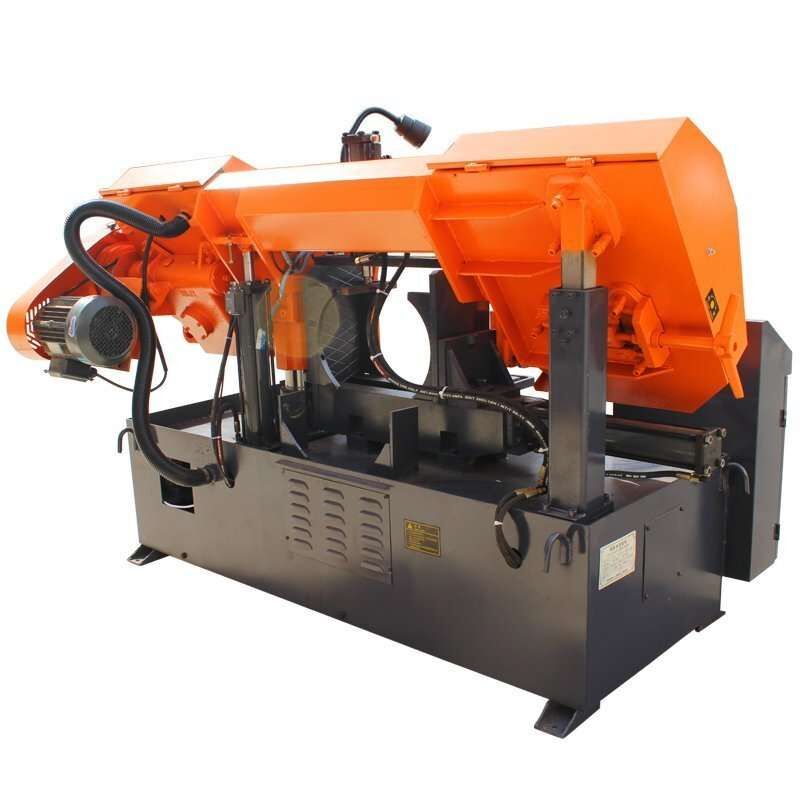

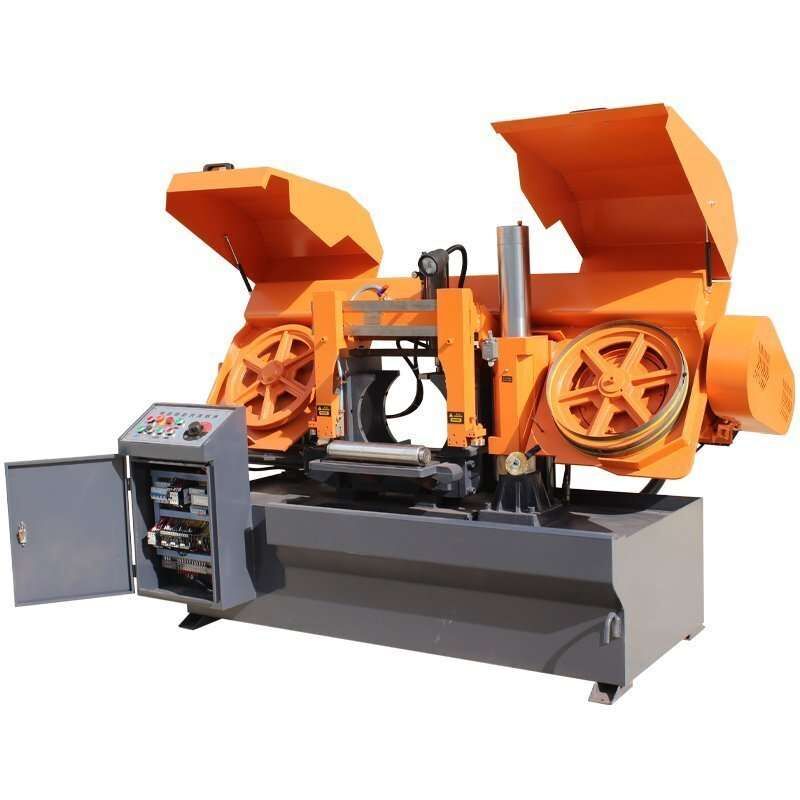

Full Automatic Metal Band Saw Machine
Material feed in by auto, feeding length measured by liner scale, feeding tolerance within 0.2mm. Can do OEM as customers requests.
| Weight | 1300 kg |
|---|---|
| Dimensions | 225 × 100 × 155 cm |
| Motor Power | 4KW-4P |
| Certification | CE ISO |
| Warranty | 1 Year |
Details about Full Automatic Metal Band Saw Machine
Cutting Range | 400*380mm |
Hacksaw Size | 4320*34*11mm |
Linear Speed Of Saw Blade | 26,45,55,72m/min |
Feed Rate | Hydraulic Speed Regulation |
Feeding Mode | Manual Feed/Roller Assist |
Clamping System | Hydraulic Clamping |
Main Motor Power | 4KW-4P |
Hydraulic Motor Power | 0.75KW |
Cooling Pump Power | 0.04KW |
Oil Pump Motor | 1.1KW |
Volume Of Hydraulic Oil Tank | 70L |
Coolant Volume | 60L |
Table Height | 650MM |
Weight | 1300KG |
Dimensions | 2250*1100*1550mm |
With you Full Automatic Metal Band Saw Machine
