Factory Supply Mini Wheel Loader Skid Steer
It can carry 1460kgs/3218lbs/16cu ft and will climb up a hill with ease.
The new electric Power Barrow 4WD is Ideal Macinery’s latest invention which features a four-wheel drive that makes it easy to maneuver and the bucket tips electronically by a touch of a button.
| Weight | 730 kg |
|---|---|
| Dimensions | 180 × 130 × 150 cm |
Details about Factory Supply Mini Wheel Loader Skid Steer
Ideal machinery showcases a wide range of tracked mini dumpers, compact machines that are ideal for construction work, renovations, landscaping, work on uneven, muddy, sandy, or sloping ground, and where wheels cannot be used because they sink or lose grip. The models produced by Ideal Machinery are agile and sturdy with a loading capacity of between 700 kg and 2,900 kg. One of the keys to the success of this small, but powerful machine is its range of functions, strength, and compact design. Ideal has also invested heavily in technological innovation in the dumper range, the driving force behind all projects, with the goal of producing increasingly high-tech models with the best performance which respects the environment and ensures operator safety.

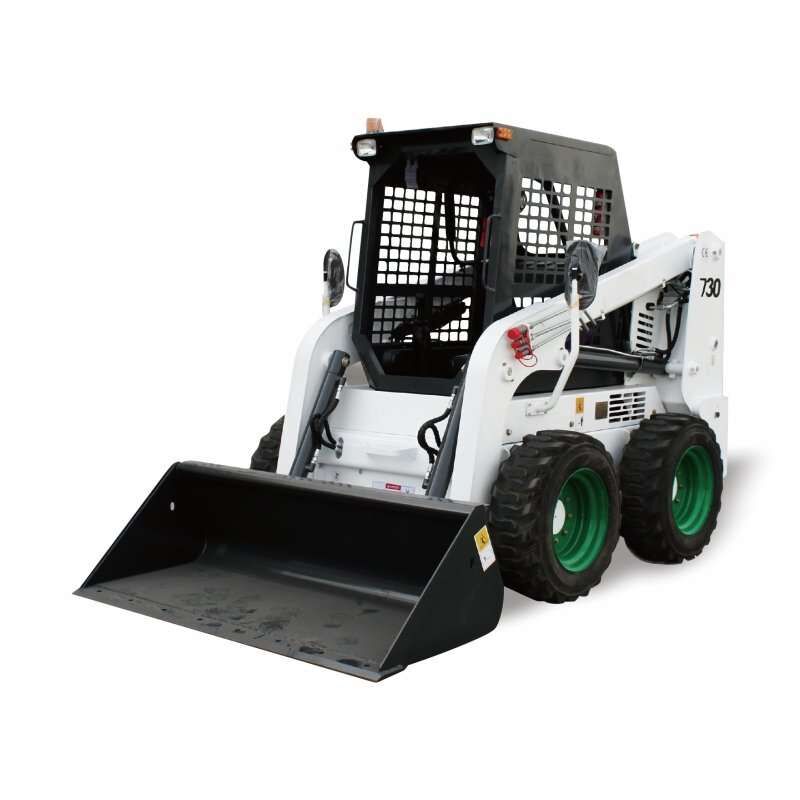

| Model | HY730 | HY830 |
| Engine model | XINCHAI, QUANCHAI, Japan, Yanmar, Misubishi | |
| Rated power | 39KW | 45KW |
| Rotating speed | 2500rpm | 2300rpm |
| Max. speed | 11km/h | 11km/h |
| Tubeless tire | 10-16.5 | 10-16.5 |
| Operating load | 730KGS | 830KGS |
| Max. loading | 1460KGS | 1660KGS |
| Lifting type | Radial | Radial |
| Total cycling time | 10.2s | 10.2s |
| Bucket capacity | 0.47m3 | 0.47m3 |
| The pressure of working system | 180bar | 180bar |
| Rated flux | 80L/min | 80L/min |
| High flow flux | without | without |
| Fuel tank capacity | 81L | 81L |
| Self-weight with bucket | 2850KGS | 3010KGS |
| HY730/HY830 Optional Configuration | |
| Optional engine | XINCHAI, QUANCHAI, Japan, Yanmar, Misubishi |
| Optional air filter | Standard Air Filter, China 3-stage Air Filter, Donaldson 3-stage Air Filter |
| Optional Air-conditioner | Cool Air-conditioner, Cool and Heat Air-conditioner, Heater |
| Optional Tire | Ground TpubelessTire 10-16.5; Small Pattern Pneumatic Tire 10-16.5, Toyo Solid Tire 31X10-16 |
| Forklift 250-15 Solid Tire. With Steel Track | |
| Optional Motor | France Poclain MSE02, Germany Rexroth MCR3 |
| Optional Fuel System | Antifreezing Fuel System for Cold Region |
FEATURE:
1. Easy access points for maintenance work thanks to a smart hood design.
2. Greater power (39kw-45kw) is provided by a three-cylinder, liquid-cooled brand diesel engine.
3. Increased efficiency and productivity, through lower fuel consumption, because you can adjust your speed as required (transmission)
4. Improvements in operator safety by providing levers within easy reach when driving (control panel)
5. Compact and flexible: Small skid steer loaders are small in size and light in weight, making them easy to operate in narrow construction sites or indoor spaces.
6. Strong versatility: The small skid steer loader can be configured with different accessories and interfaces according to needs to achieve multiple functions, such as excavating, leveling, pushing soil, pile driving, tamping, etc., which can be easily replaced.
