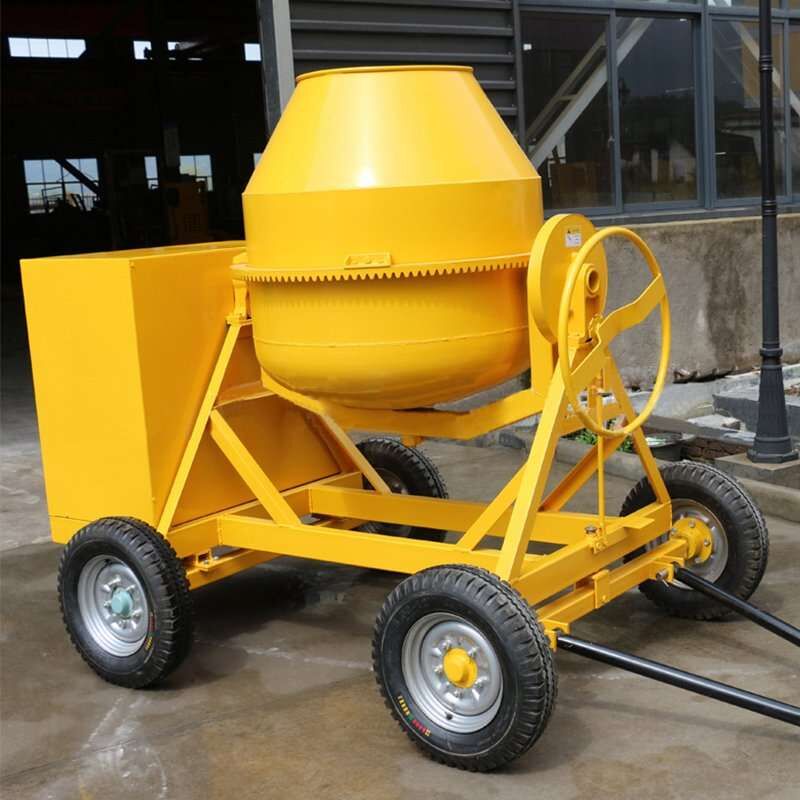

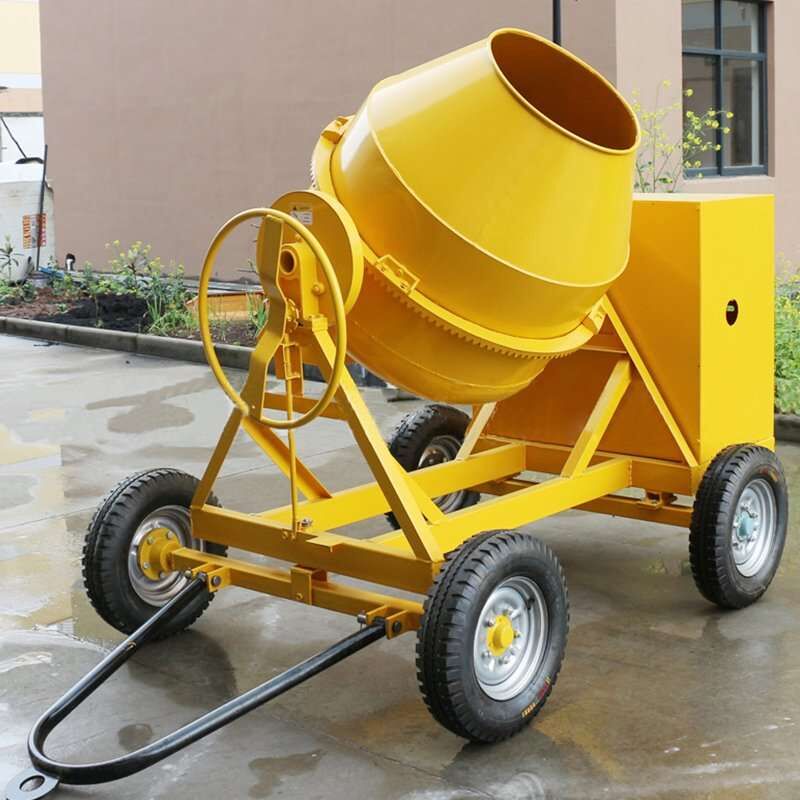

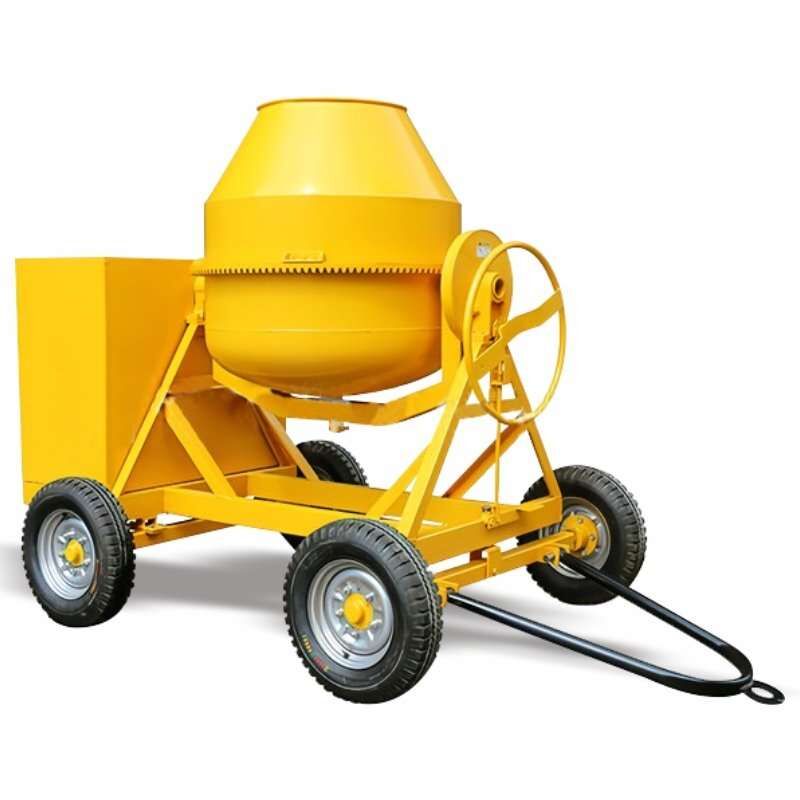

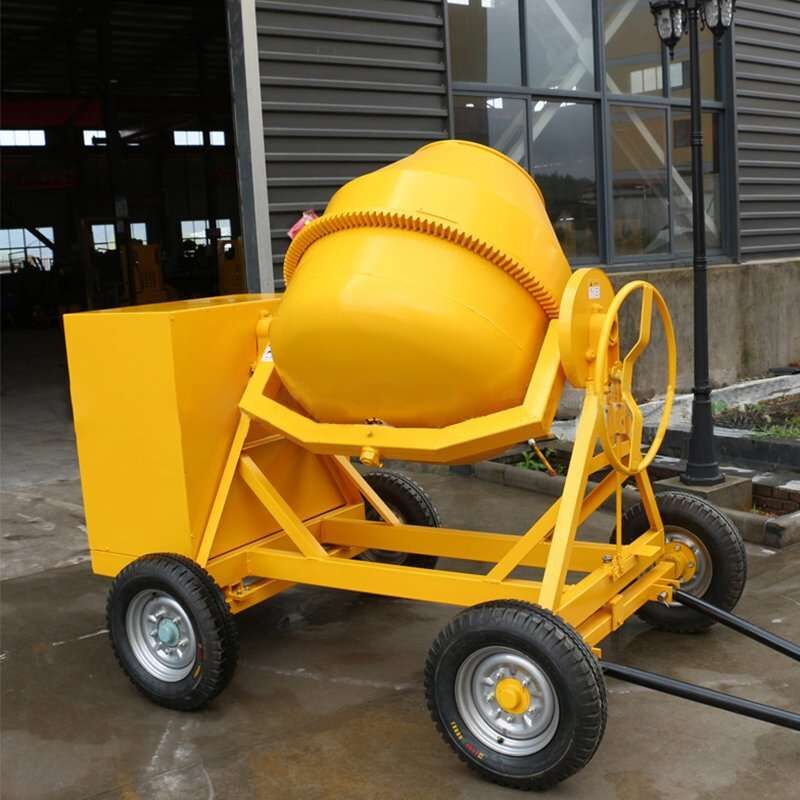

elf Loading Mobile Gasoline 700L Concrete Mixer
- One-piece cast iron ring gear for longer life cement mixer for big cement mixer
- Equipped with 17inch large wheels cement mixer for big cement mixer
- A towable handle ensures easier transportation
| Weight | 620 kg |
|---|---|
| Dimensions | 220 × 106 × 130 cm |
| Drum capacity | 700L |
| Mixing capacity | 560L |
| Productivity | 8-10m³/h |
| Drum size | Φ950*1050mm |
You may also like
Related products
Details about elf Loading Mobile Gasoline 700L Concrete Mixer
A concrete mixer can be used for mixing plastic and semi-dry concrete. The mixing drum rotates forward to stir and reverse to discharge, and it can produce 4 to 5 cubic meters per hour. It is suitable for construction sites, roads, bridge projects, and small and medium-sized concrete component factories without electricity.
|
Model
|
ID700-4D
|
|
Drum capacity
|
700L
|
|
Mixing capacity
|
560L
|
|
Productivity
|
8-10m³/h
|
|
Bags of cement per batch
|
2 Bag cement(50KG/BAG)
|
|
Drum rotation speed
|
20-22rpm
|
|
Drum thickness
|
3mm/4mm(Upper/Bottom)
|
|
Drum size
|
Φ950*1050mm
|
|
Tyre size and QTY
|
4x(5.00-12)
|
|
Overall size
|
2200x1500x1950 mm
|
|
Packing size
|
2200x1060x1300 mm
|
|
Container Loading Plan
|
5 Sets Assembled in 20GP Container, 20 Sets Assembled in 40HQ Container
|
|
Power Option
|
ID500-4C weight
|
|
Water-cooled CHANGCHAI Diesel Engine ZS1100 (16HP)
|
610 kg
|
|
Water-cooled CHANGCHAI Diesel Engine CF1100 (16HP)
|
620 kg
|
|
Electric Motor (5.5 kW)
|
580 kg
|
Advantage:
1. The drum mixer has a novel structure and a beautiful appearance.
2. It has high production efficiency, good mixing quality, and is lightweight.
3. The type of gasoline/diesel drum mixer.
4. Easy to move, simple to operate, and small in size.
