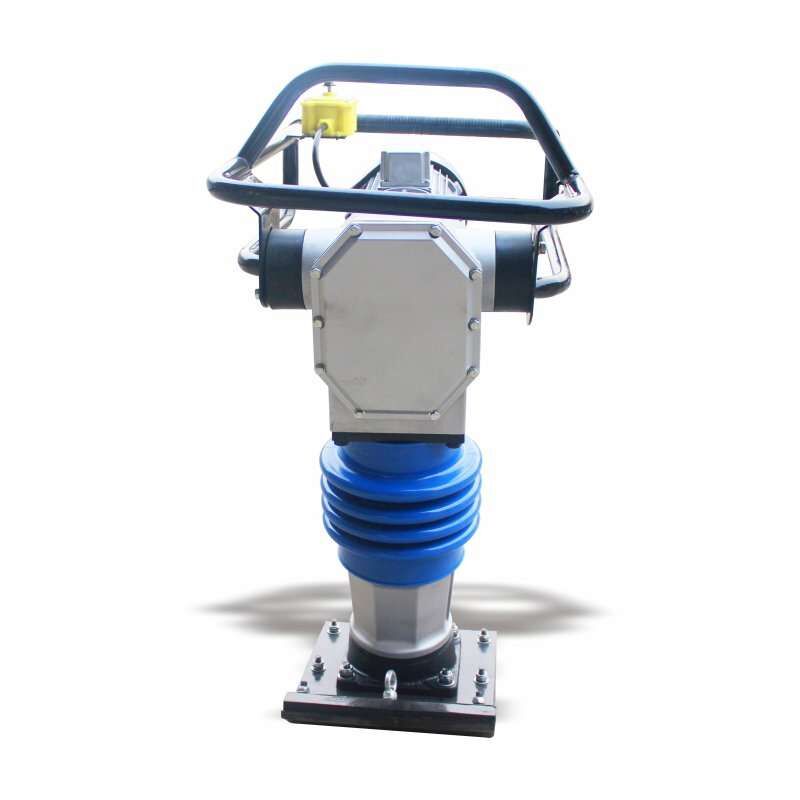

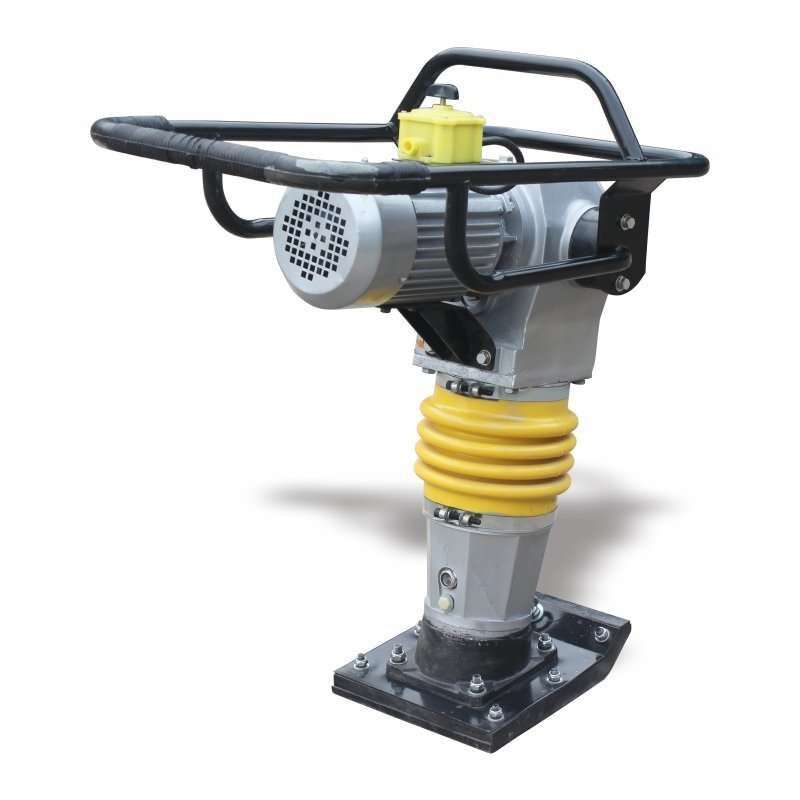

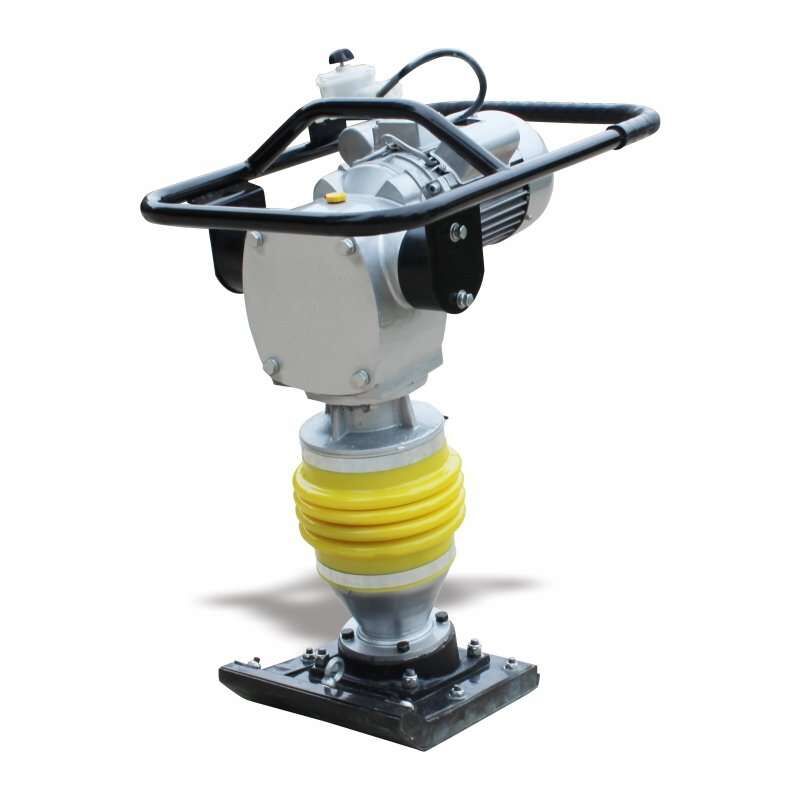

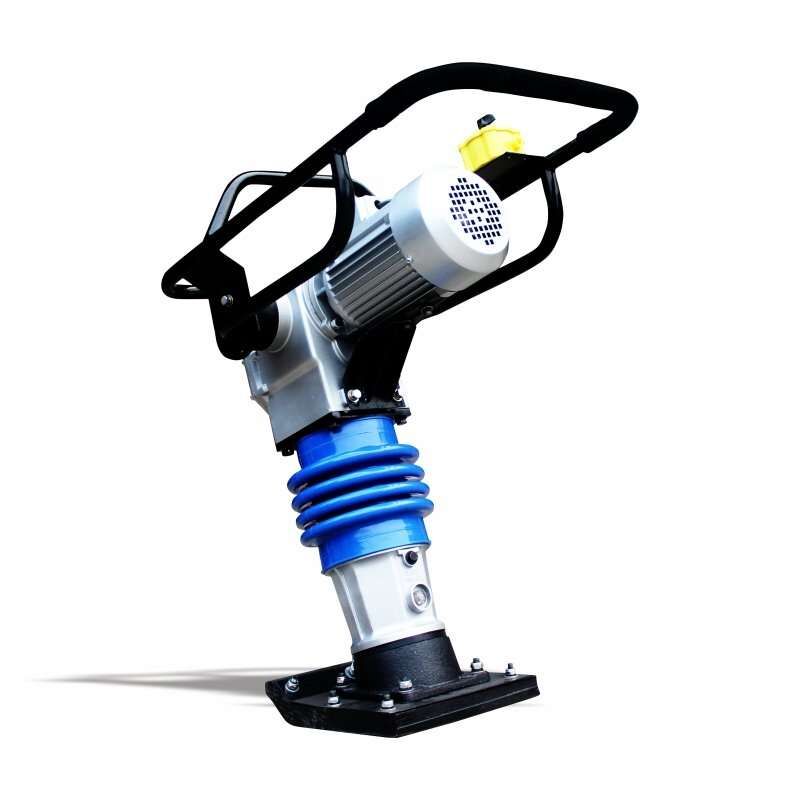

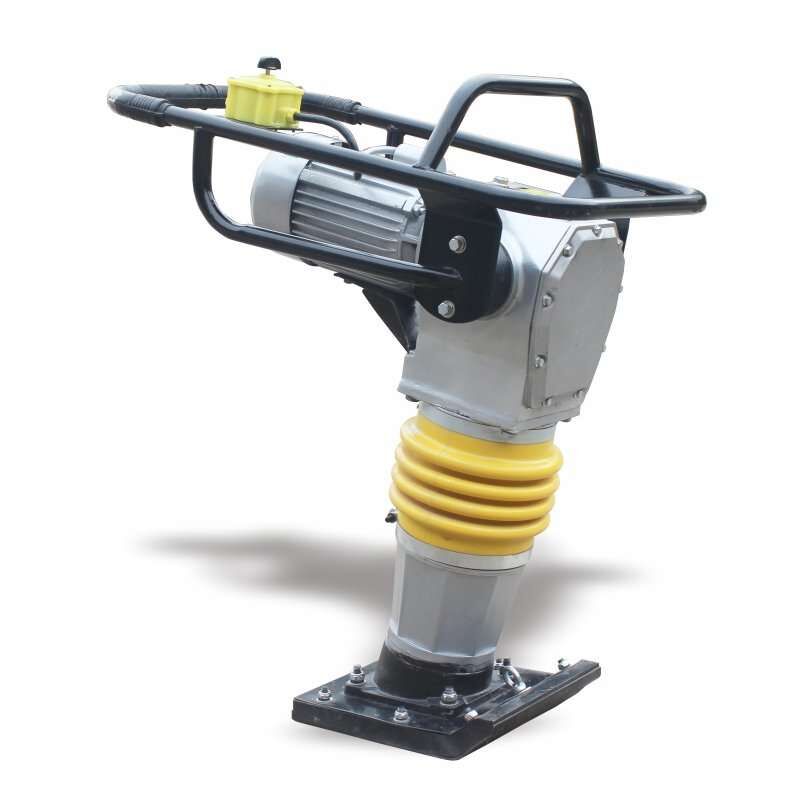

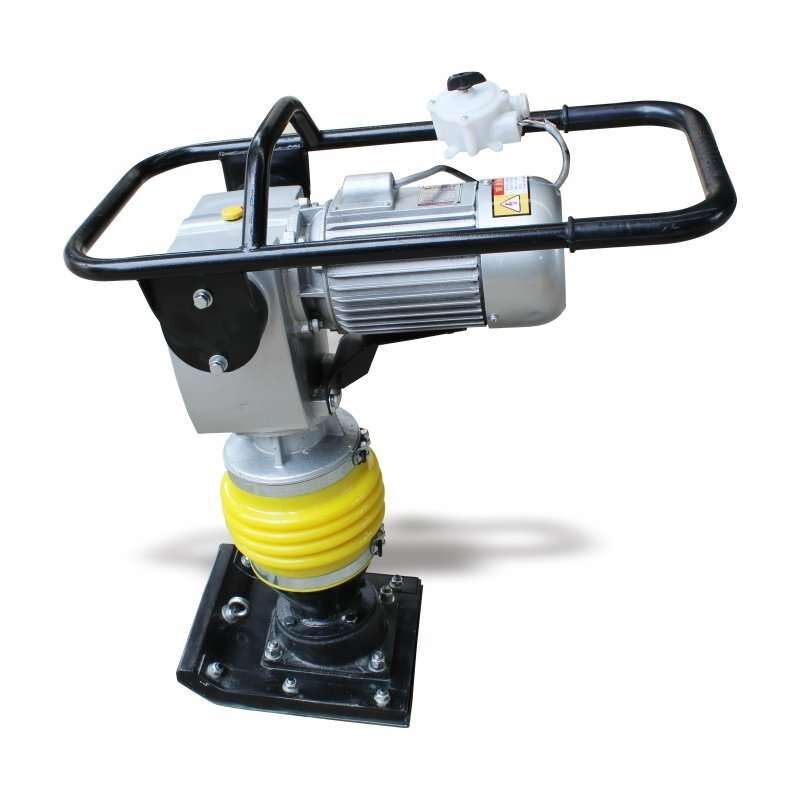

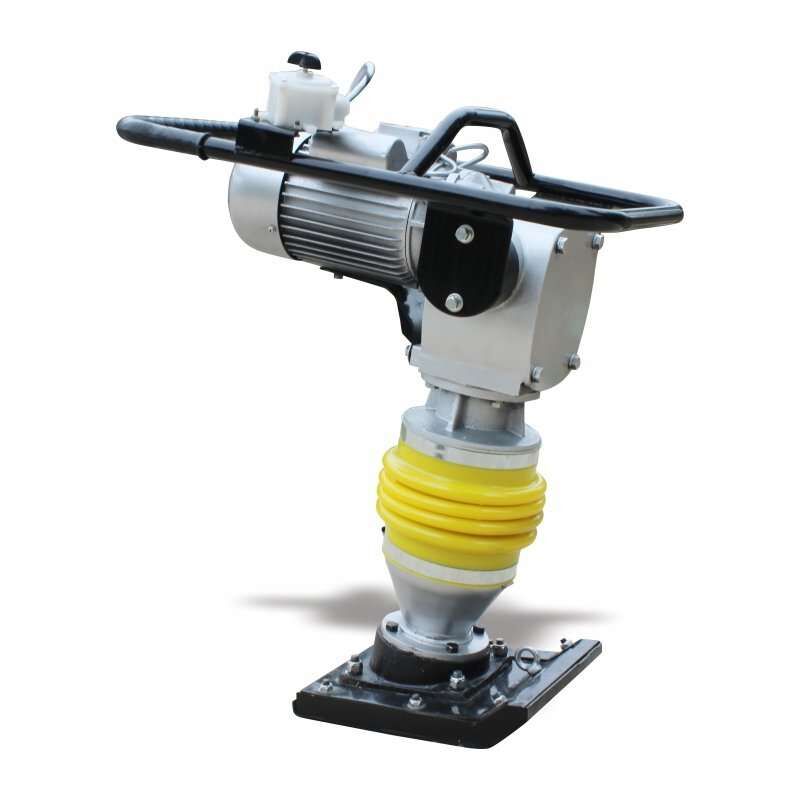

Electric Portable Vibrating Tamping Rammer
- Electric moto drove, strong adaptability to an open working environment.
- Compact structure, convenient operation.
| 重量 | 90 公斤 |
|---|---|
| 尺寸 | 100 × 53 × 53 厘米 |
| Impact Fre | 700t/min |
| Jump Height | 65-75mm |
| Walk Speed | 9-12m/min |
Details about Electric Portable Vibrating Tamping Rammer
|
Model |
HCD80 |
HCD90 |
HCD110 |
|
Input voltage |
3 phase 220v/380v/415v single phase 220 or customized |
||
|
Impact frequency |
700t/min |
||
|
Jump height |
65-75mm |
||
|
Plate size |
300*280mm |
||
|
Walking speed |
9-12m/min |
||
|
Motor power |
3kw |
||
|
Noise DB |
80B |
80A |
80A |
|
Impacting force |
13KN |
||
|
Gross weight |
80KG |
85KG |
90KG |
|
Package size |
1000*530*530mm |
||
Electric Tamping Rammers are designed to deal with the tough site condition, well balanced, easy to operate, and excellent maneuverability in trenches and around pipes. Additionally, every rammer is performance tested before it is released from the factory, thus you can trust it at all.
Heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
Electric Motor Tamping rammer shoe made of steel plate with wooden insert offers economical usage.
Perfectly balanced while delivering ideal compaction with controlled jumping motions without affecting the impact force.
