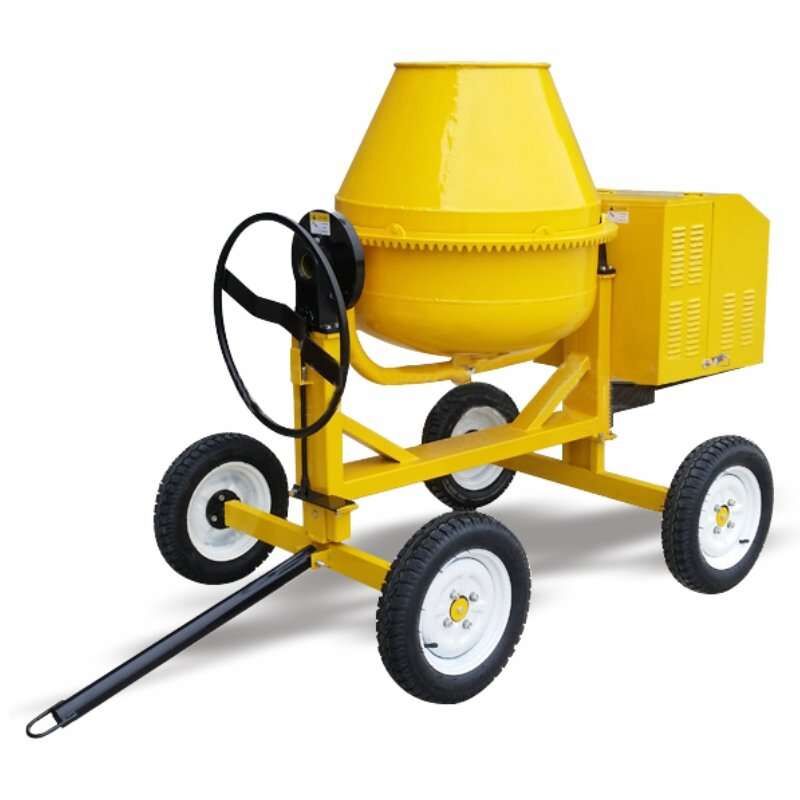

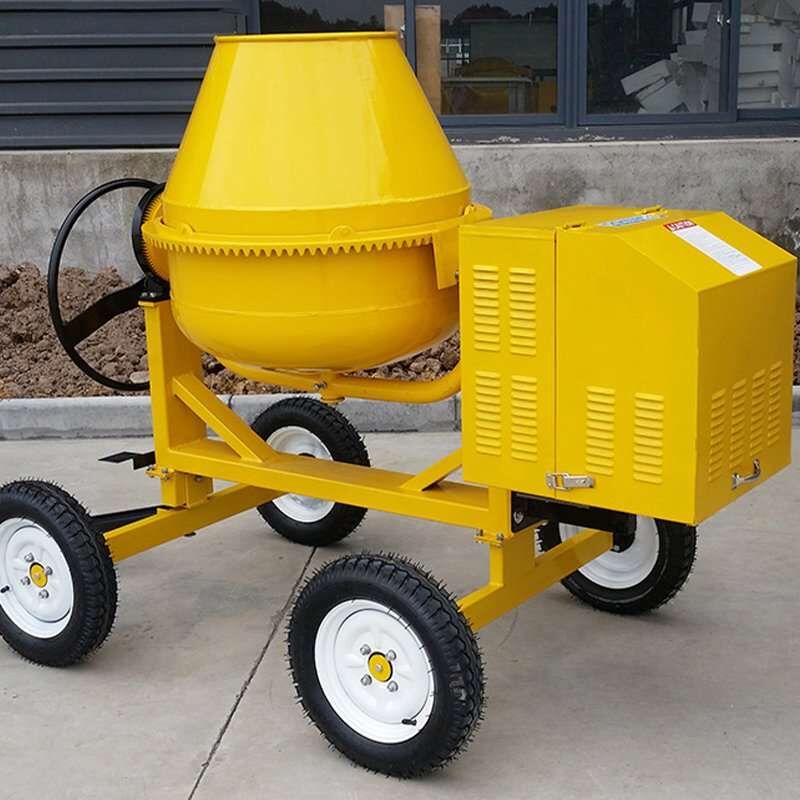

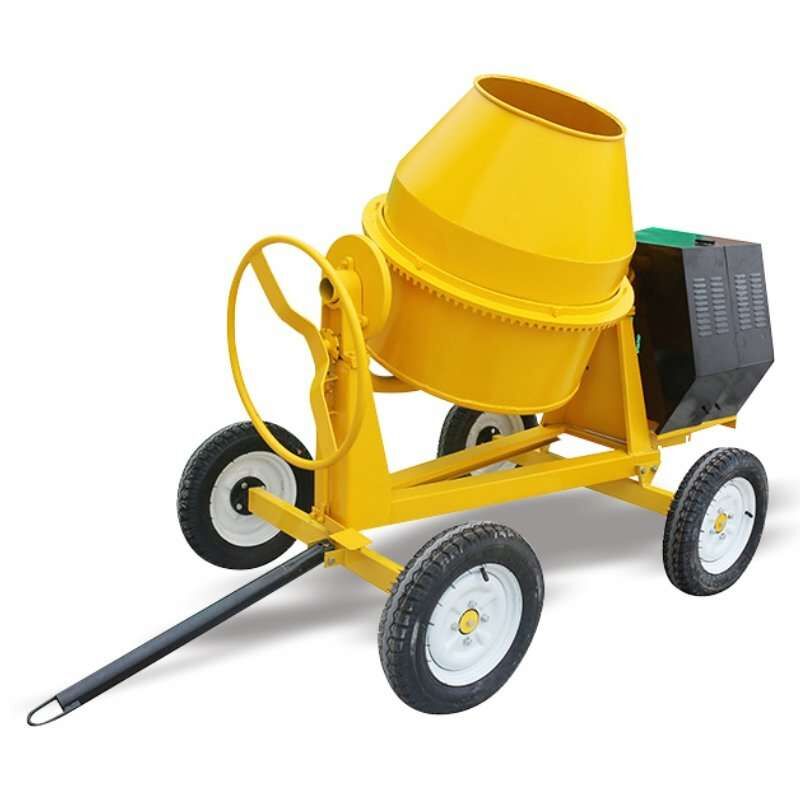

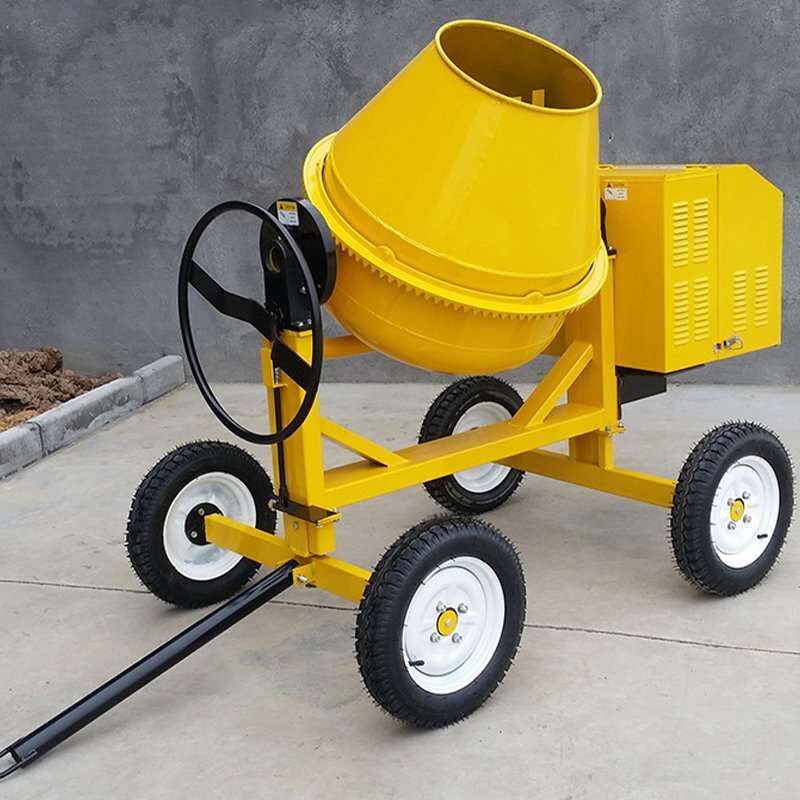

Durable diesel or gasoline engine used cement mini mixer
- The drum mixer has a novel structure and a beautiful appearance.
- It has high production efficiency, good mixing quality, and is lightweight.
- The type of gasoline/diesel drum mixer.
- Easy to move, simple to operate, and small in size.
| Weight | 280 kg |
|---|---|
| Dimensions | 186 × 86 × 110 cm |
| Drum capacity | 350L |
| Mixing capacity | 280L |
| Productivity | 4-5m³/h |
| Drum rotation speed | Drum rotation speed |
Details about Durable diesel or gasoline engine used cement mini mixer
A concrete mixer can be used for mixing plastic and semi-dry concrete. The mixing drum rotates forward to stir and reverse to discharge, and it can produce 4 to 5 cubic meters per hour. It is suitable for construction sites, roads, bridge projects, and small and medium-sized concrete component factories without electricity.
| Model | ID350-4A ID350-4C |
| Drum capacity | 350L |
| Mixing capacity | 280L |
| Productivity | 4-5m³/h |
| Bags of cement per batch | 1 Bag cement(50KG/BAG) |
| Drum rotation speed | 25-30rpm |
| Drum thickness | 3mm/4mm(Upper/Bottom) |
| Drum size | Φ800*900mm |
| Tyre size and QTY | 4x(4.00-12) |
| Overall size | 1960*1100*1700mm |
| Packing size | 1860*860*1100mm |
| Container Loading Plan | 14 Sets with Assembled in 20GP Container, 24 Sets in CKD condition in 20GP Container 28 Sets with Assembled in 40HQ Container, 60 Sets in CKD condition in 40HQ Container |
| Power Option | Weight |
| Air-cooled Diesel Engine 178FS(6HP) | 260 kg |
| Air-cooled Diesel Engine 186FS(10HP) | 280 kg |
| Water-cooled Diesel Engine R180(8HP) | 290 kg |
| HONDA Gasoline Engine | 250 kg |
| Electric Motor (3 kW) | 260 kg |
ADVANTAGE:
All-steel construction, Mini Concrete Mixer has a long life span.
The powder-coat finish on the drum and frame adds durability cement mixer
260L-450L capacity well suits small to medium size projects cement mixer for big cement mixer.
One-piece cast iron ring gear for longer life cement mixer for big cement mixer
Equipped with 17inch large wheels cement mixer for big cement mixer
A towable handle ensures easier transportation
