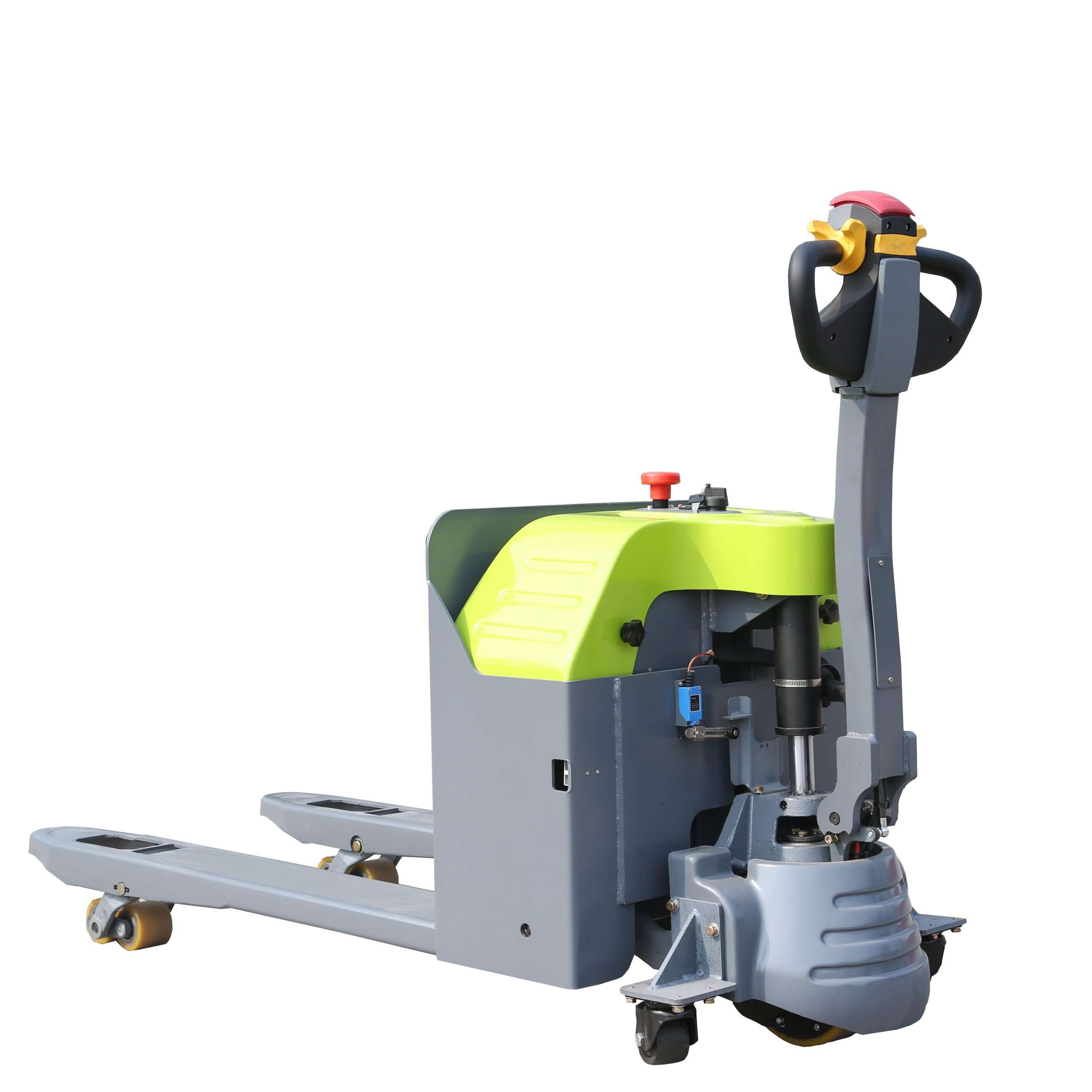

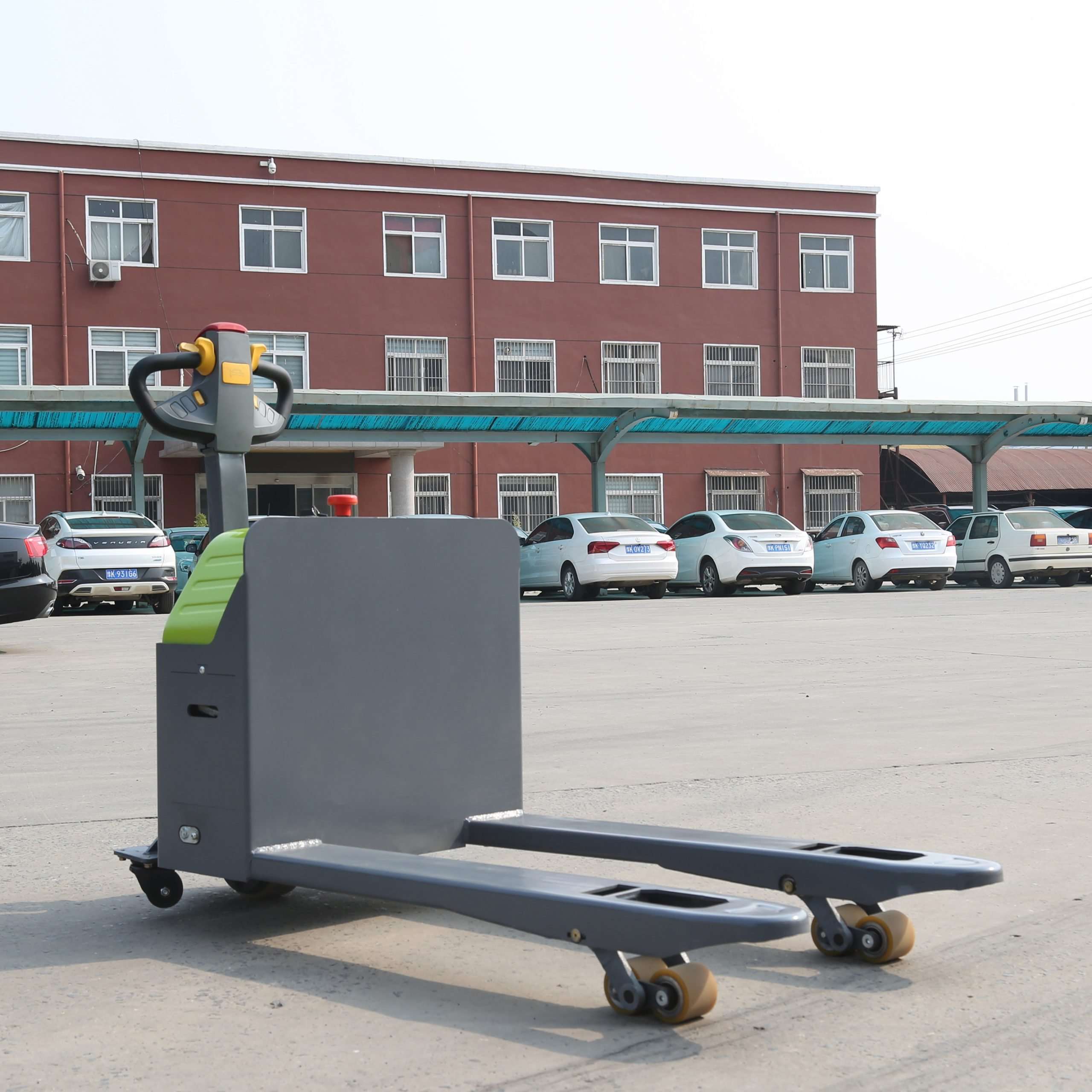

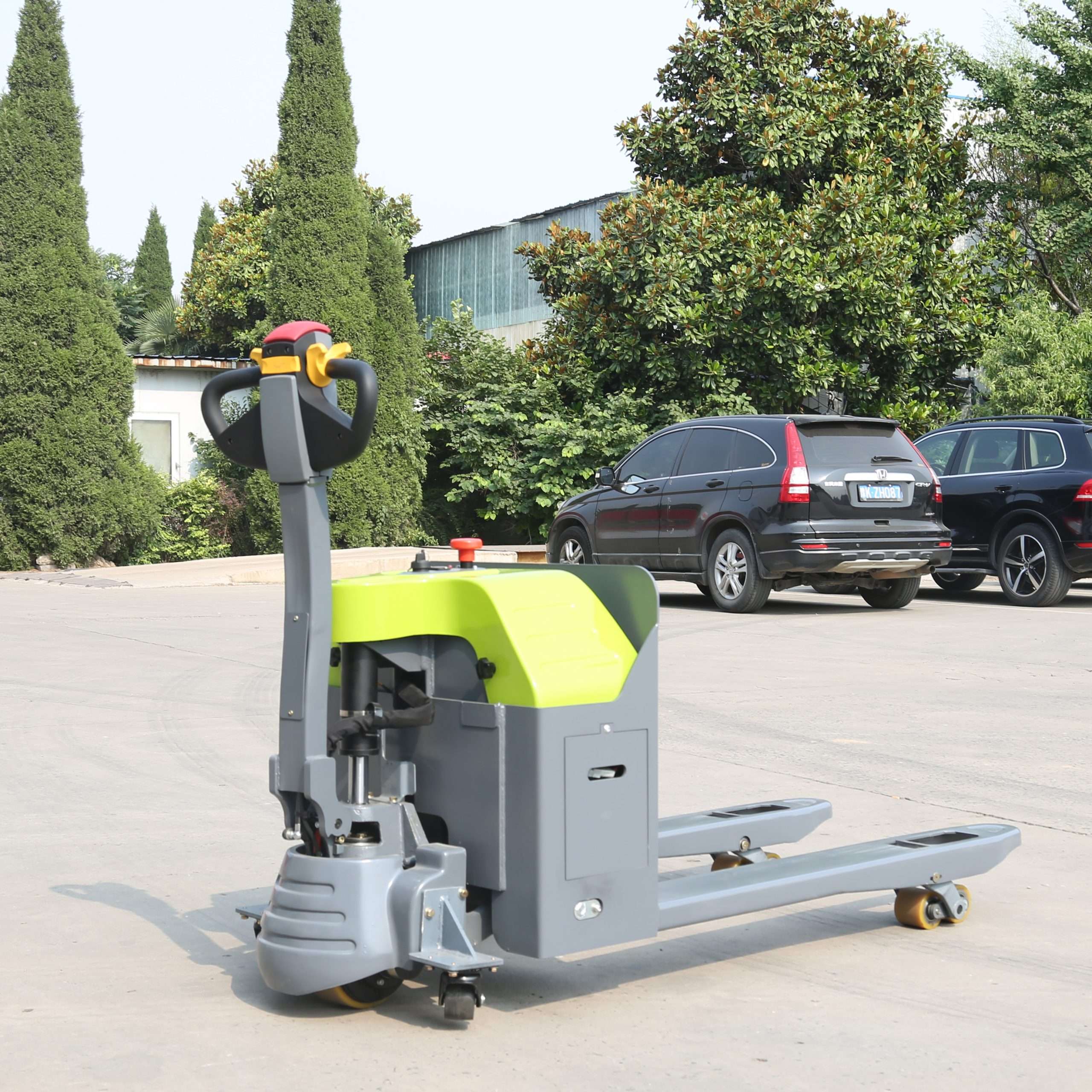

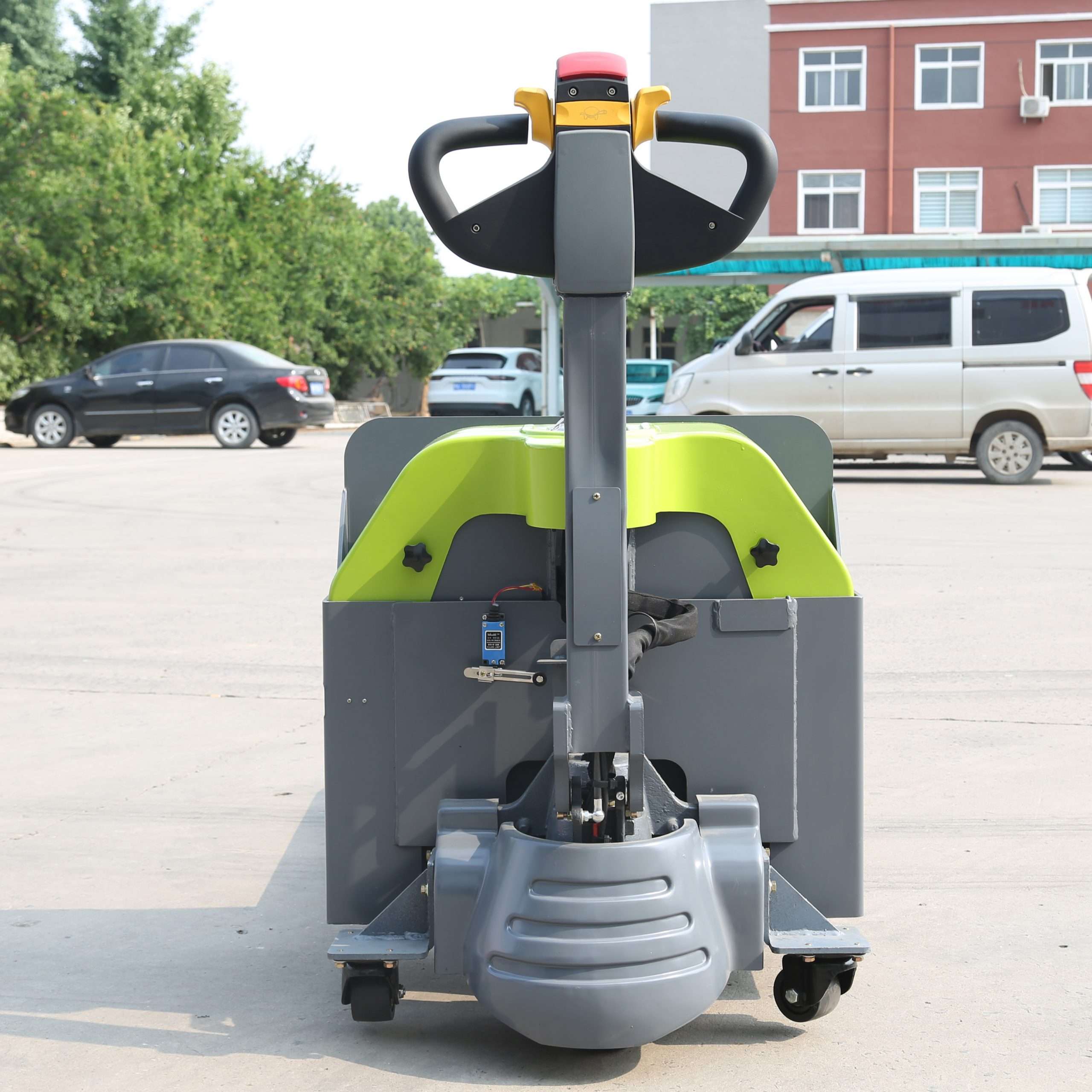

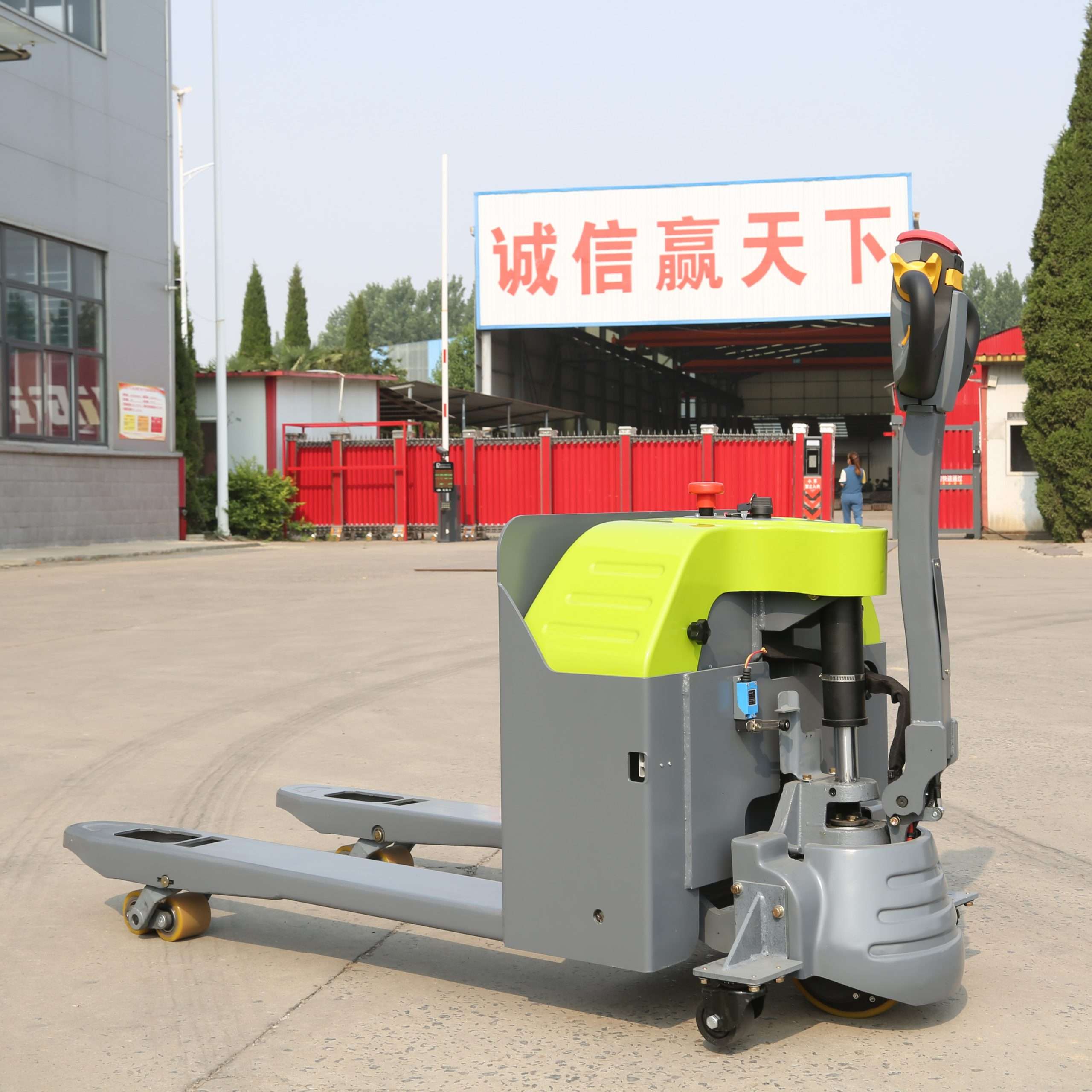

CTX-20 2Ton 2000kg Electric Pallet Truck

  • Electric pallet truck CTX-20 is a powered material handling tool used in supermarkets, ports, logistic centers, workshops, etc.
  • It is the perfect tool with a capacity of 2.0 tons and a speed of 4.5km/h.
  • Replace the hand pallet truck or semi-electric pallet truck, because of its cost-effective performance and low cost.
重量 295 公斤
尺寸 1710 × 700 × 1280 厘米
Rated Capacity

2000kg

Load Center

600mm

Lifting Height

200mm

Min. Ground Clearance

5mm

Details about CTX-20 2Ton 2000kg Electric Pallet Truck

Model CTX-20
Power Type  Lead Battery
Operation Type Walking
Rated Capacity kg 2000
Load Center mm 600
Lifting Height mm 200
Overall Dimension(L/W/H) mm 1710×700×1280
Fork Sizes mm 1150×160×50
Fork Width Min./Max. mm 550/688
Min. Ground Clearance mm 5
Turning Radius mm 1400
Min.Right Angle Channel Width mm 1560
Self-weight(with battery) kg 295
Battery Weight kg 20
Wheel Type
(driving/turning)
 Solid PU
Driving Wheel Sizes mm 210×70
Loading Wheel Sizes mm 85×70
Driving Motor kw(60min) 0.85
Lifting Motor kw(60min) 0.8
Battery Dimension mm 271×174×213
Battery Voltage/Capacity V/ah 2×12/60
Controller DC
Working Pressure mpa 14
Travel speed(laden/unladen) km/h 4.5/5
Lifting speed(laden/unladen) mm/s 30/34
Max Climbing Ability % 4
Braking electromagnetic induction
Driving Type  Electric
Steering System  Manual
Noise Level 63
Waterproof Grade IP54

Advantages

Electric pallet truck CTX-20 is a powered material handling tool used in supermarkets, ports, logistic centers, workshops, etc. It is the perfect tool with a capacity of 2.0 tons and a speed of 4.5km/h. Replace the hand pallet truck or semi-electric pallet truck, because of its cost-effective performance and low cost. (almost 2-5 electricity per day) convenient operation arm will help you lifting, lowering goods easily, forward and backward button on it is so easy to control that a young lady can deliver a 2.0-ton pallet without pressure. Stepless speed change function will take a feeling that you are on a bicycle. A powerful motor(0.75kw) means 2.0 tons is a piece of cake. The speed-limit function will ensure your safety. Maintenance-free lead-acid batteries bring a lot of conveniences.

Continuous work for 4 hours, larger battery capacity leads to longer work hours, the cost will be 2-5 electricity per day.0 emission and high performance, this is why almost every factory in this world need electric pallet truck.

Standard configuration

  • Solid PU tire
  • Electromagnetic brake
  • 24 voltage 60 Ampere Hour Battery
  • Working for 6-8 hours
  • Rated capacity 1.5 ton
  • Electric quantity display
  • Over-discharge protection
  • Lifting height 200 mm
  • Emergency power-off switch

Optional configuration

  • Fork dimension±300mm
  • Lithium battery
  • Remote control
  • Large battery capacity
