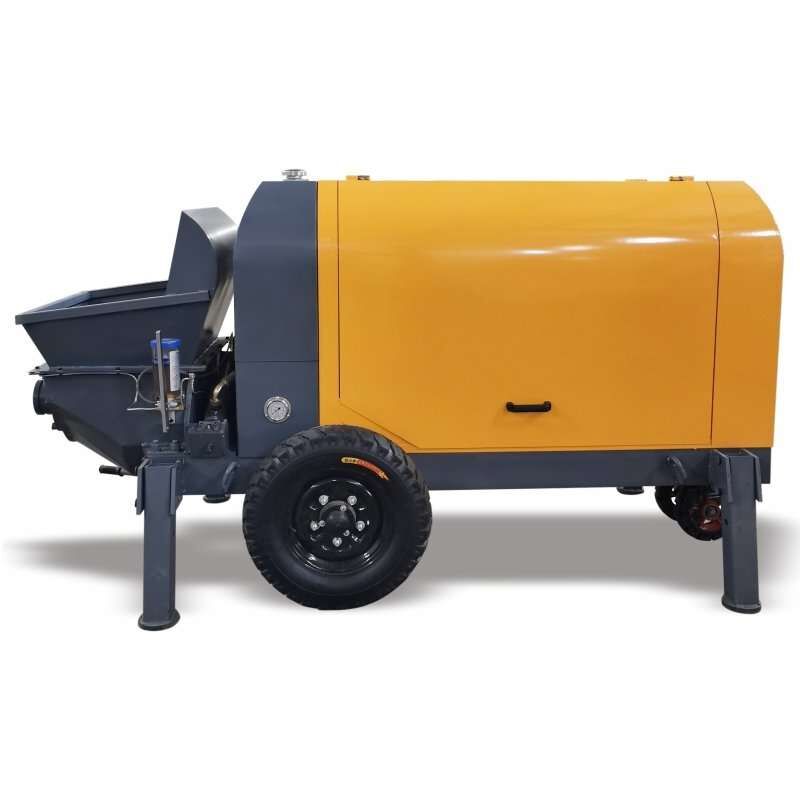

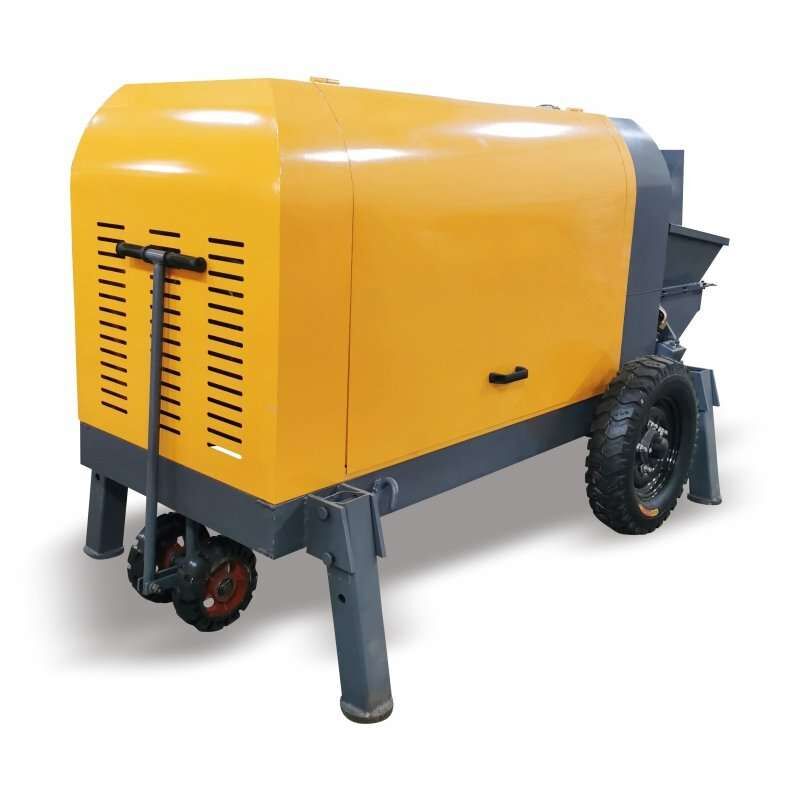

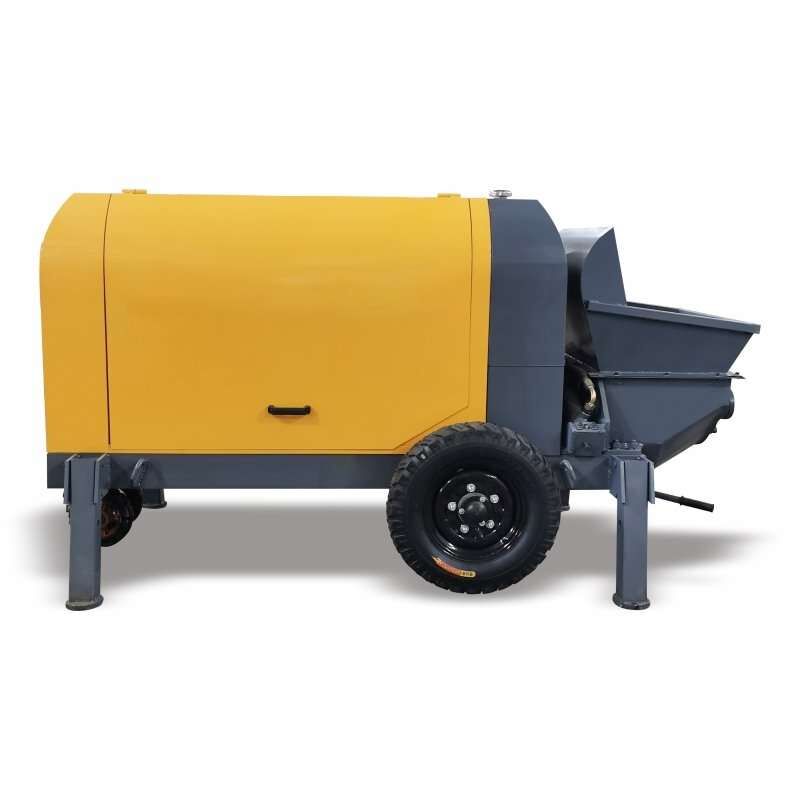

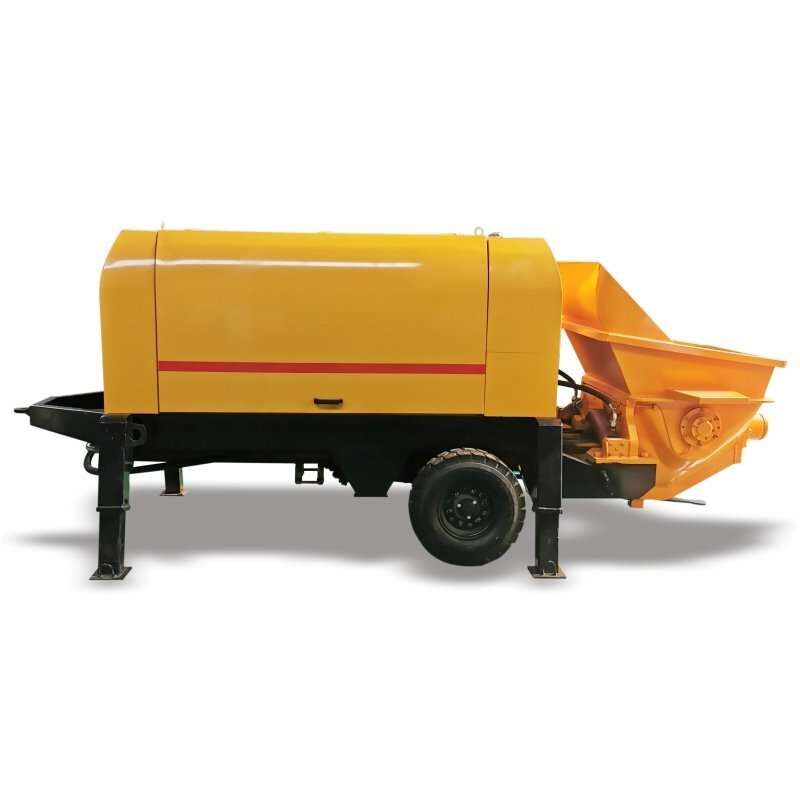

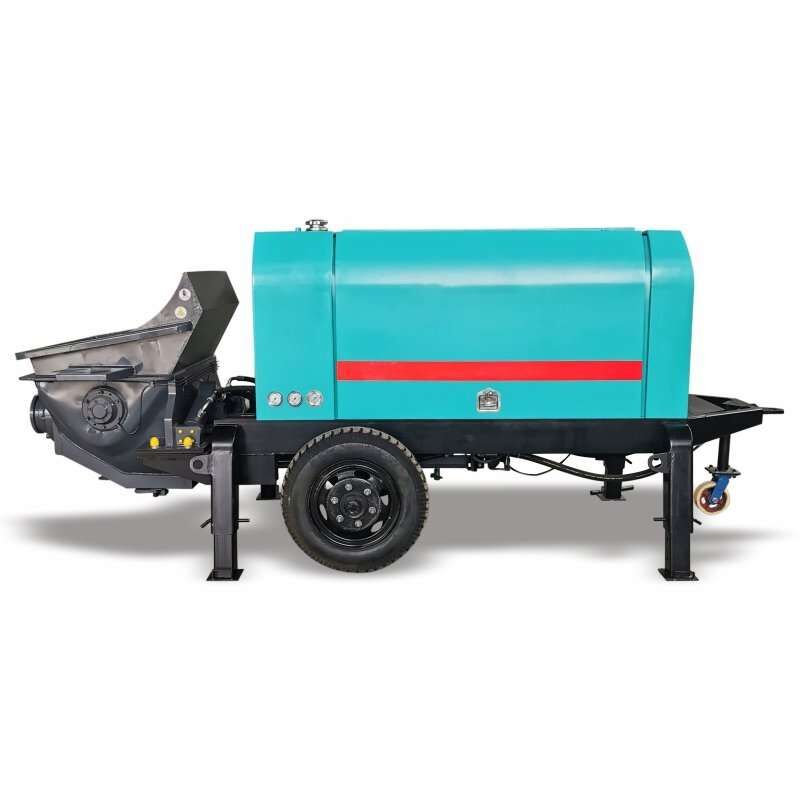

Diesel engine concrete stationary static pump
- The open-loop of the hydraulic system is air-cooled to keep the oil temperature below 60 °C so as to ensure the stability of the system.
- The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact.
| Weight | 2200 kg |
|---|---|
| Dimensions | 398 × 150 × 158 cm |
| Max. Aggregate diameter(mm) | ≤30 |
| Max. horizontal distance(m) | 200-400m |
| Max. vertical distance(m) | 50-100m |
| Productivity(M3/h) | 20-35 |
Details about Diesel engine concrete stationary static pump
| Model | CPD1803 | CPD30 | CPD40 |
| Engine brand | CHANGCHAI | HBE490 | HBEK4102D |
| Rated power | 18.3kw | 30kw | 40kw |
| Oil pump | 50 type | 63 type | 80/100type |
| Max. Particle dia | 15mm | 20mm | 10-30mm |
| Transfer capacity | 6m3/h | 10m3/h | 12m3/h |
| Vertical distance | 15m | 40m | 20-60m |
| Horizontal distance | 45m | 100m | 50-150m |
| Outlet port diameter | 100mm | 100mm | 125mm |
| Tube diameter | 80mm | 80/100mm | 80/100/125mm |
| Overall size | 2400*700*1270mm | 3200*1100*1400mm | 3500*1600*1550mm |
| Weight | 850kgs | 1200kgs | 1300kgs |
| Model | CPD47 | CPD66 | CPD75 |
| Engine brand | HBE ZH4102 | HBE4105 | HBE4108 |
| Rated power | 47kw | 66kw | 75kw |
| Oil pump | 80/100 type | 100/112 type | 112/140type |
| Max. Particle dia | 10-30mm | 10-30mm | 10-40mm |
| Transfer capacity | 15m3/h | 20m3/h | 25m3/h |
| Vertical distance | 20-80m | 30-120m | 30m |
| Horizontal distance | 70-180m | 60-300m | 80m |
| Outlet port diameter | 125mm | 150mm | 180mm |
| Tube diameter | 80/100/125mm | 80/100/125mm | 80/100/125mm |
| Overall size | 3900*1600*1500mm | 4100*1600*1550mm | 4400*1600*1500mm |
| Weight | 1400kgs | 1900kgs | 2270kgs |
