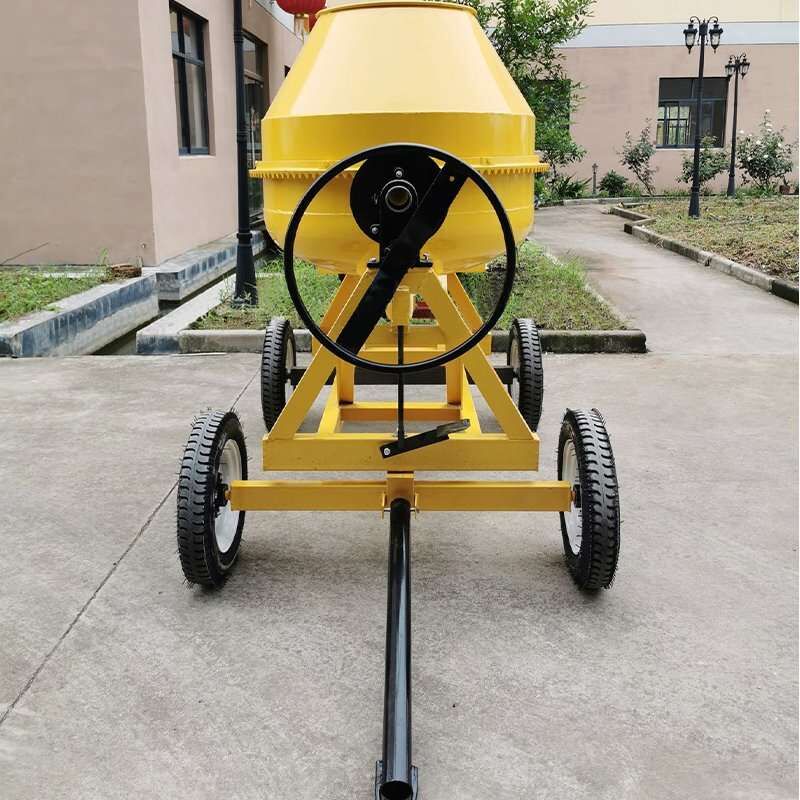

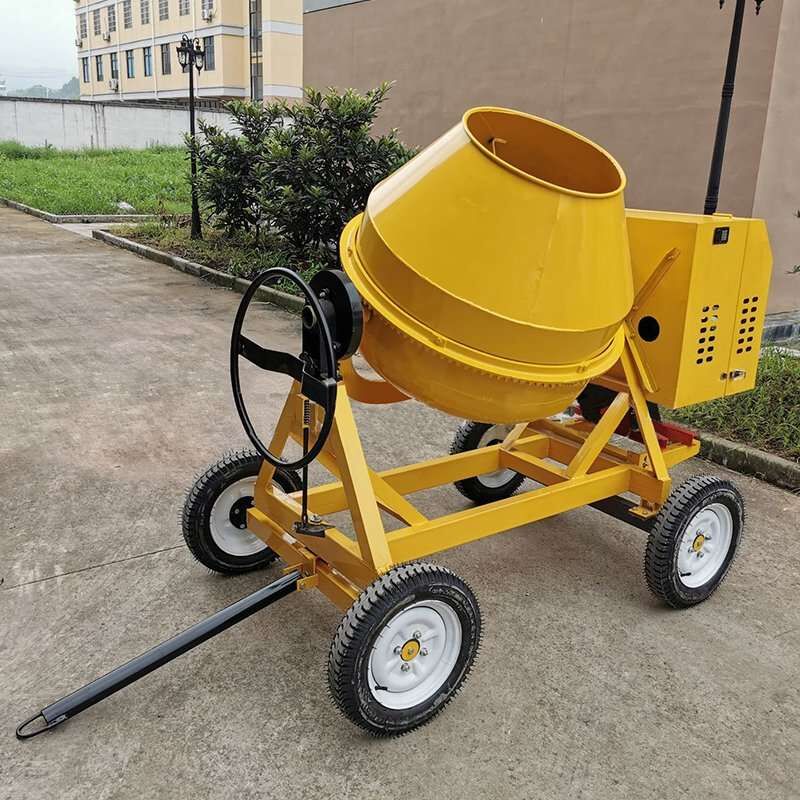

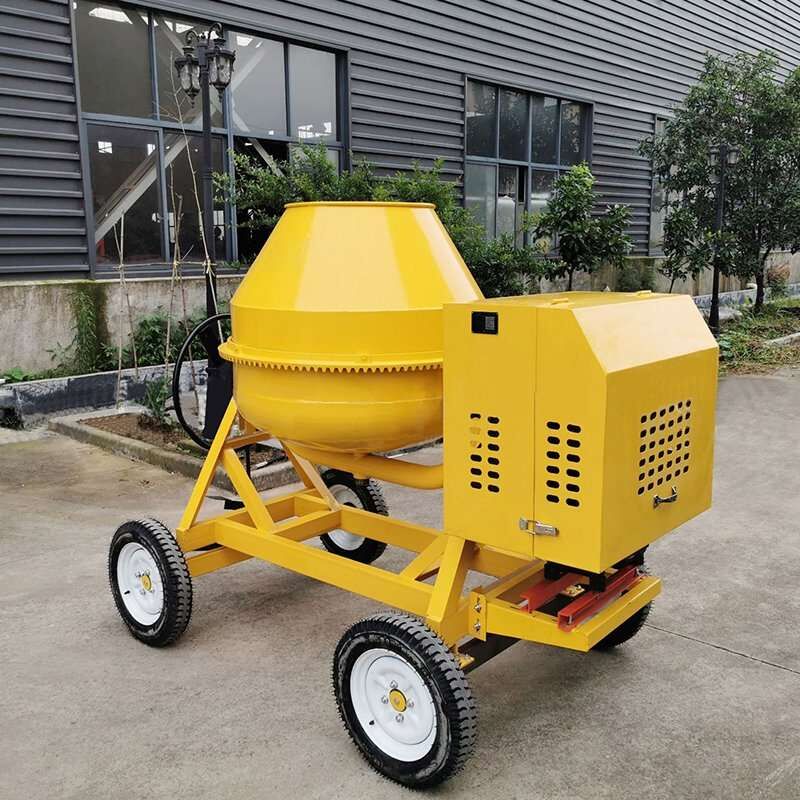

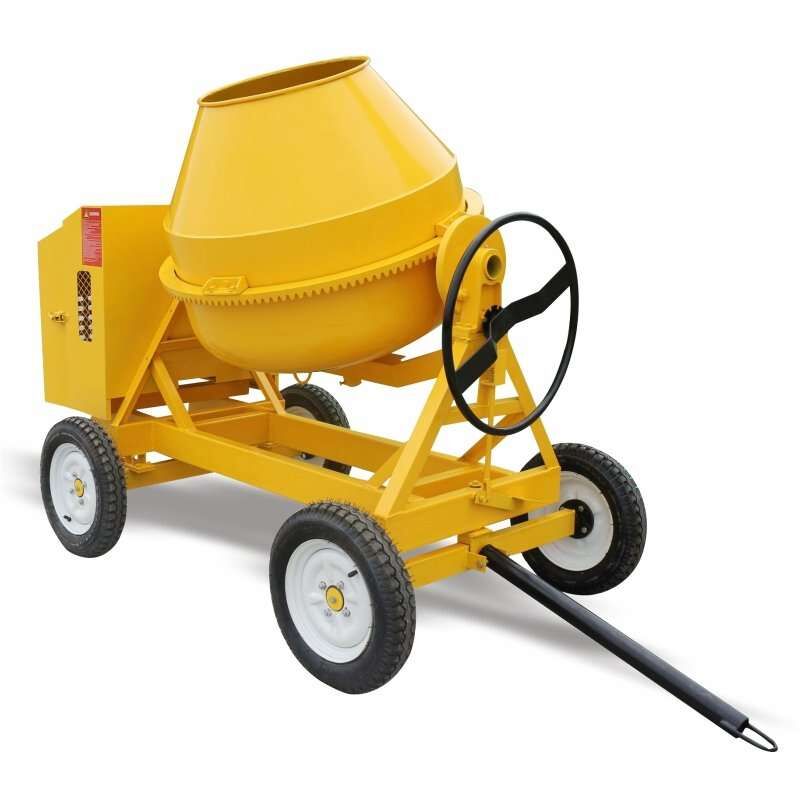

China portable electric concrete mixer for sale
- One-piece cast iron ring gear for longer life cement mixer for big cement mixer
- Equipped with 17inch large wheels cement mixer for big cement mixer
- A towable handle ensures easier transportation
| 重量 | 370 公斤 |
|---|---|
| 尺寸 | 206 × 106 × 125 厘米 |
| Drum capacity | 500L |
| Mixing capacity | 400L |
| Productivity | 6-8m³/h |
| Drum size | Φ950*900mm |
Details about China portable electric concrete mixer for sale
A concrete mixer can be used for mixing plastic and semi-dry concrete. The mixing drum rotates forward to stir and reverse to discharge, and it can produce 4 to 5 cubic meters per hour. It is suitable for construction sites, roads, bridge projects, and small and medium-sized concrete component factories without electricity.
|
Model
|
ID500-4D
|
|
Drum capacity
|
500L
|
|
Mixing capacity
|
400L
|
|
Productivity
|
6-8m³/h
|
|
Bags of cement per batch
|
1.5 Bag cement(50KG/BAG)
|
|
Drum rotation speed
|
20-25rpm
|
|
Drum thickness
|
3mm/4mm(Upper/Bottom)
|
|
Drum size
|
Φ950*900mm
|
|
Tyre size and QTY
|
4x(4.00-12)
|
|
Overall size
|
2160x1200x1750 mm
|
|
Packing size
|
2060x1060x1250 mm
|
|
Container Loading Plan
|
10 Sets Assembled in 20GP Container, 24 Sets Assembled in 40HQ Container
|
|
Model
|
ID500-4D
|
|
Drum capacity
|
500L
|
|
Mixing capacity
|
400L
|
|
Productivity
|
6-8m³/h
|
|
Bags of cement per batch
|
1.5 Bag cement(50KG/BAG)
|
|
Drum rotation speed
|
20-25rpm
|
|
Drum thickness
|
3mm/4mm(Upper/Bottom)
|
|
Drum size
|
Φ950*900mm
|
|
Tyre size and QTY
|
4x(4.00-12)
|
|
Overall size
|
2160x1200x1750 mm
|
|
Packing size
|
2060x1060x1250 mm
|
|
Container Loading Plan
|
10 Sets Assembled in 20GP Container, 24 Sets Assembled in 40HQ Container
|
Advantage:
1. The drum mixer has a novel structure and a beautiful appearance.
2. It has high production efficiency, good mixing quality, and lightweight.
3. The type of gasoline/diesel drum mixer.
4. Easy to move, simple to operate, and small in size.
