50mm Rebar Threading Machine Manufacturer

  • The height of the electric motor and reducer is lower than before so that it could reduce the center of gravity of the whole machine.
  • With spiral lead angle technology, easy to roll thread, and ensure higher thread accuracy.
Weight550 kg
Dimensions150 × 110 × 80 cm
Processing Range

Φ16-Φ50mm

Certification

CE ISO

Main Motor Power

5.5KW

Power

3PH 380V 50HZ

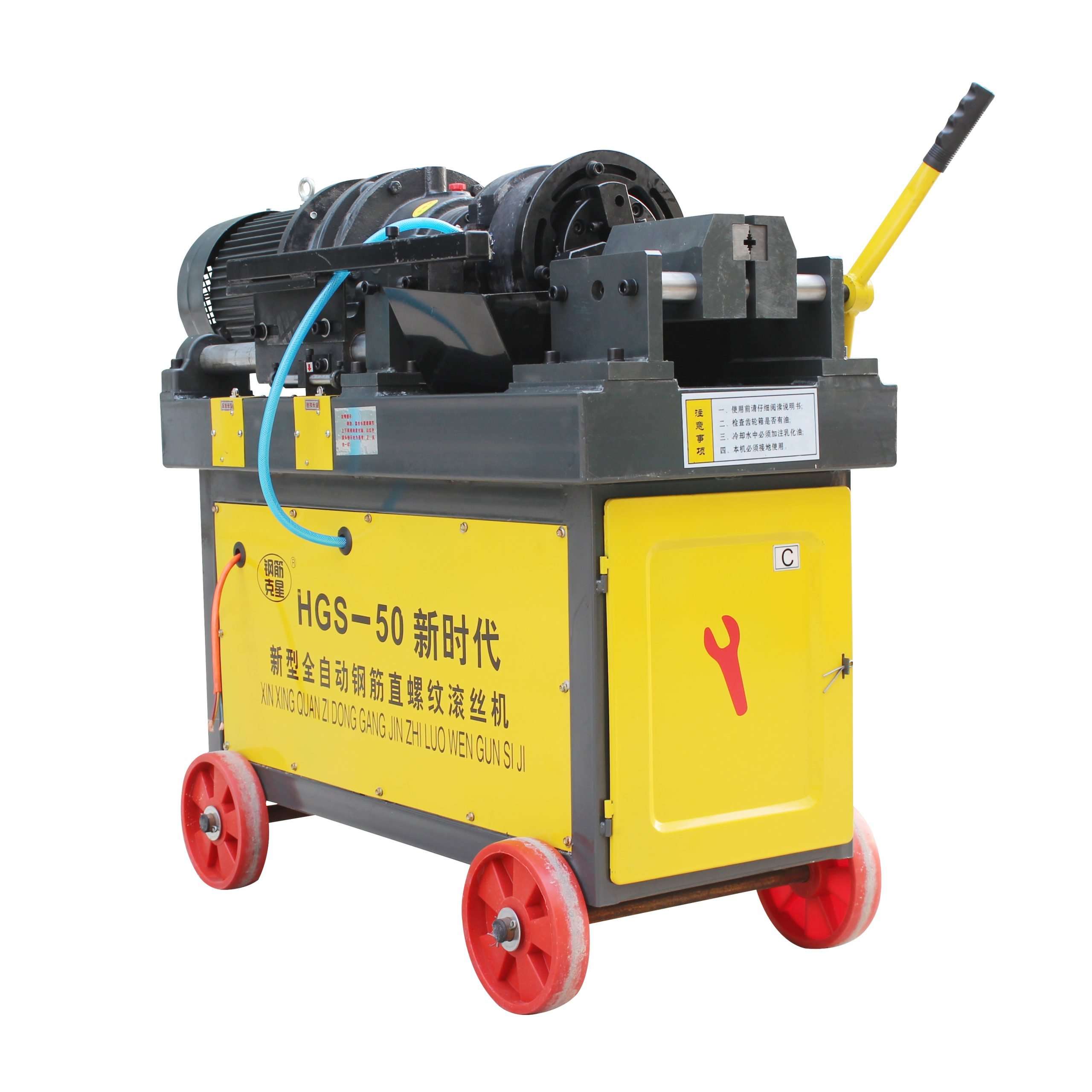

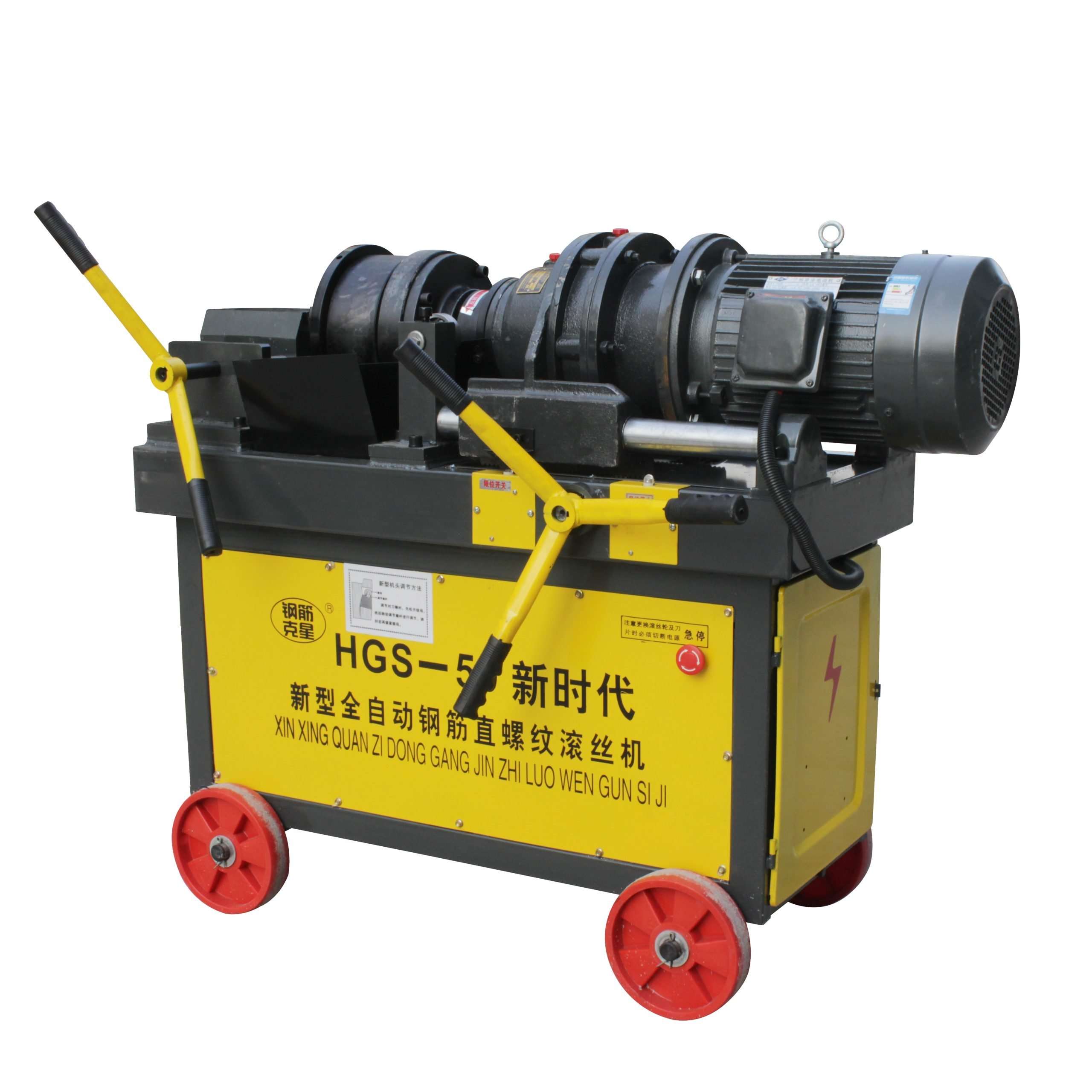

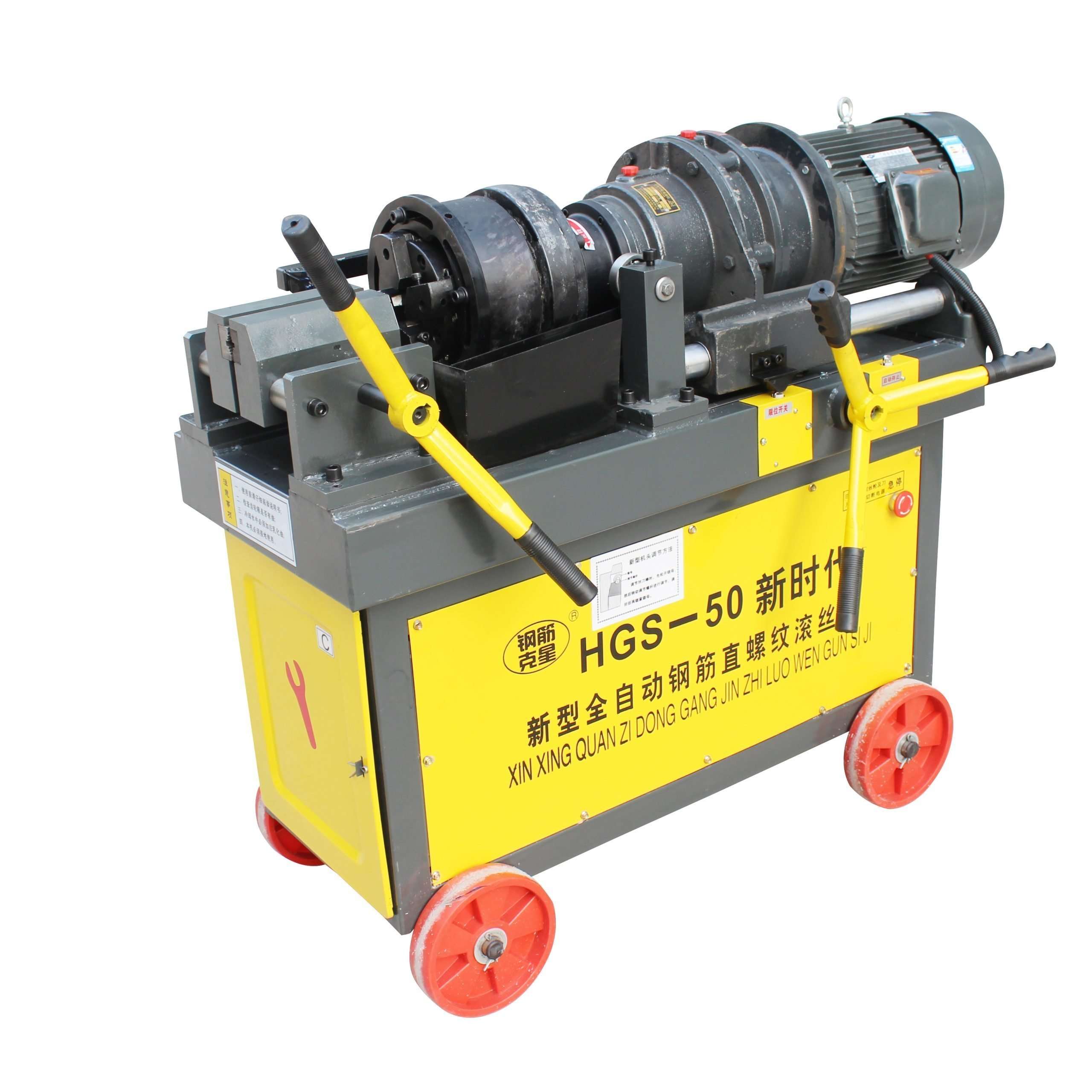

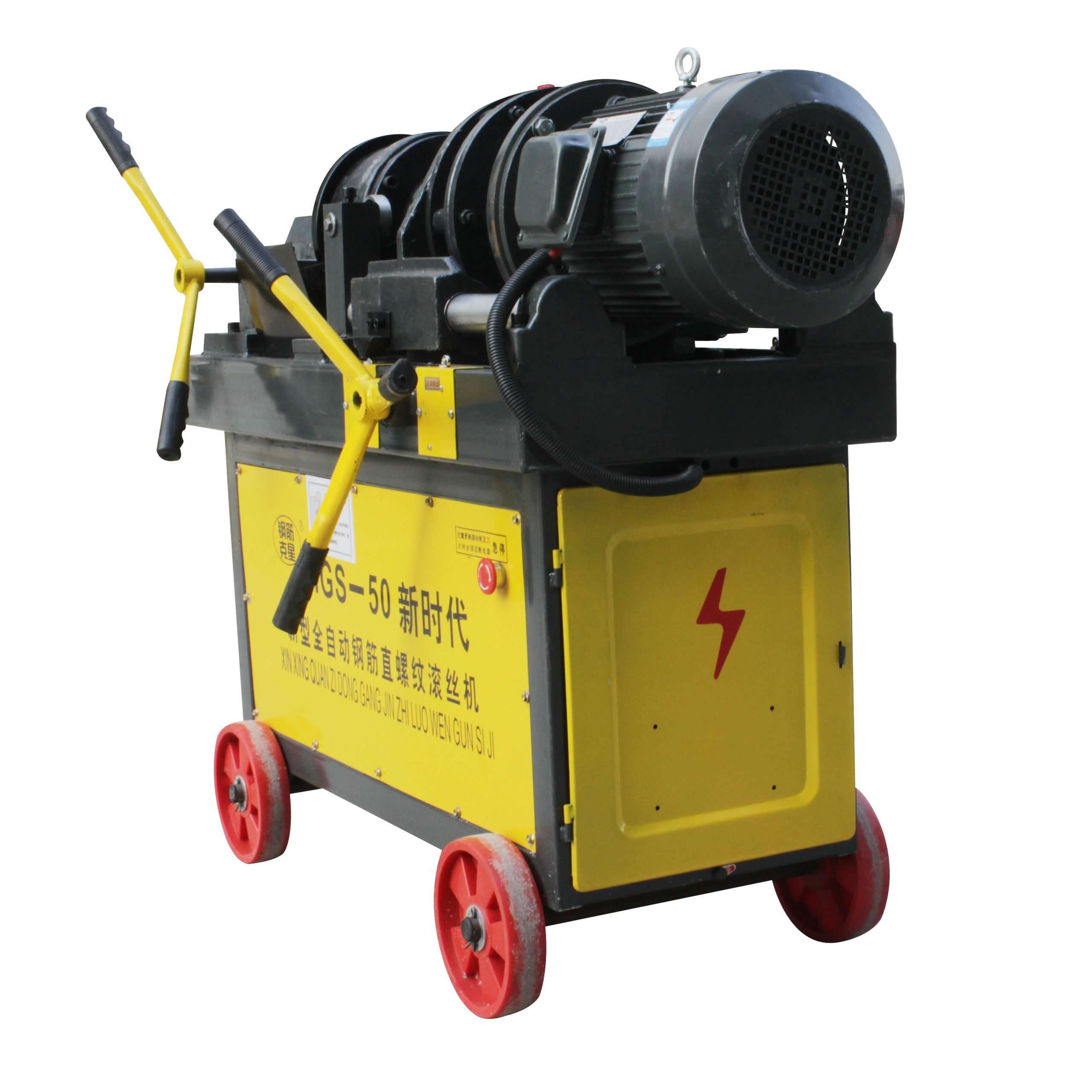

Details about 50mm Rebar Threading Machine Manufacturer

After the modification, the screw angle increases, and the manual wire feeding saves labor. The fuselage is enlarged, the fuselage structure is solid, and the fuselage will not twist when processing large-diameter steel bars, so as to ensure the accuracy of the thread, the processing thread is full, and there will be no broken teeth. Motor power and reducer quality are different. HGS-40 is suitable for pure copper motor and national standard reducer. The maximum processing length is 80mm. Other lengths can be customized.
Assembly parameters:  5.5kv motor, 7.5kv motor, the reducer can be assembled: 1:17 reducer, 1:19 reducer, these parameters need to be assembled according to the processing diameter range.

ModelHGS50
Capacity16-50mm
Motor power5.5kw
Input voltage380VAC three phase
Shaft speed62-80r/min
Max length80mm or customized
Weight550kgs
