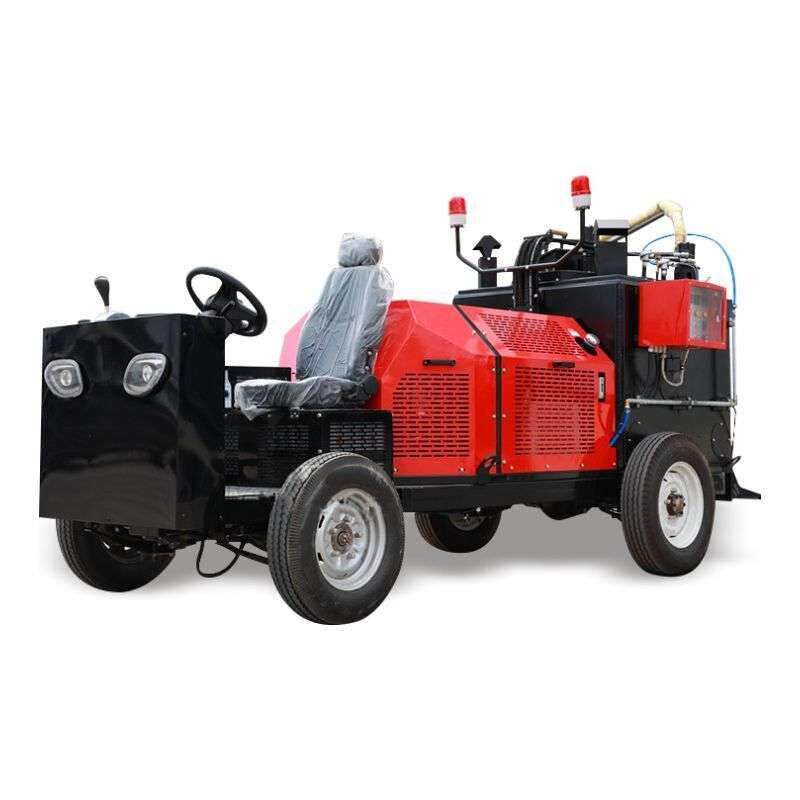

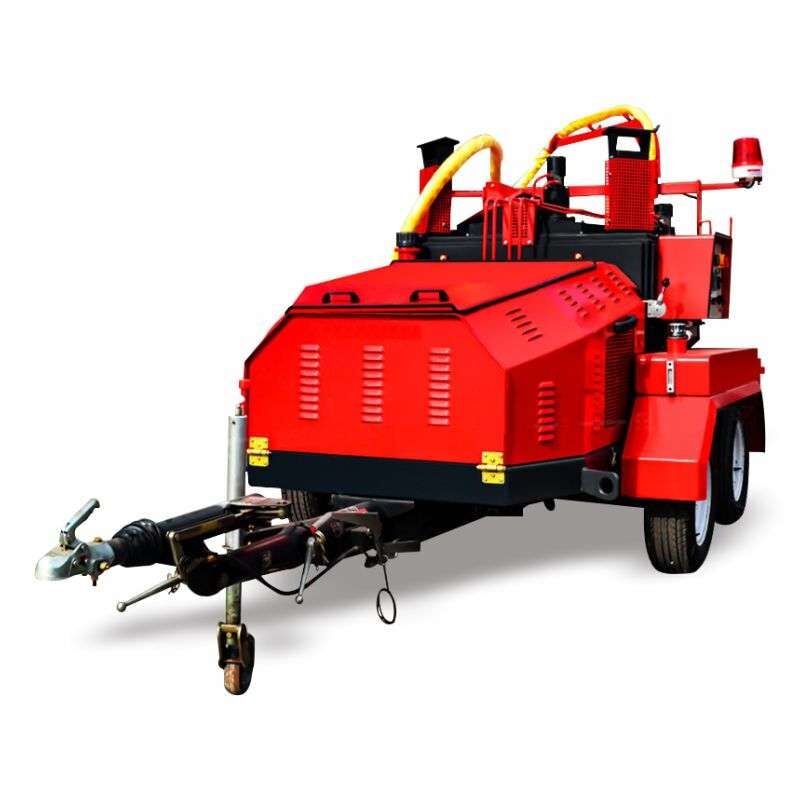

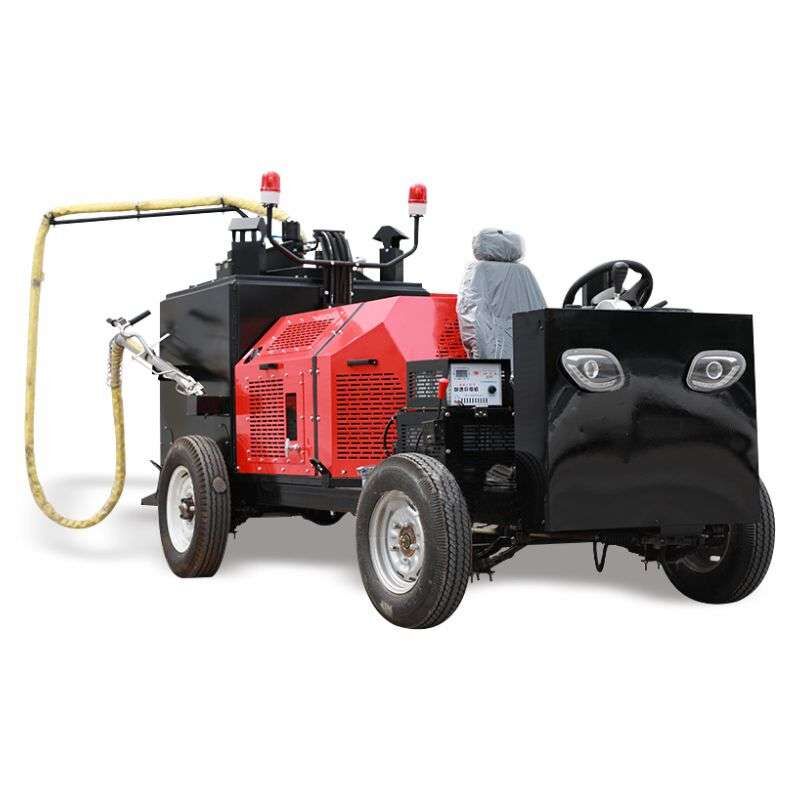

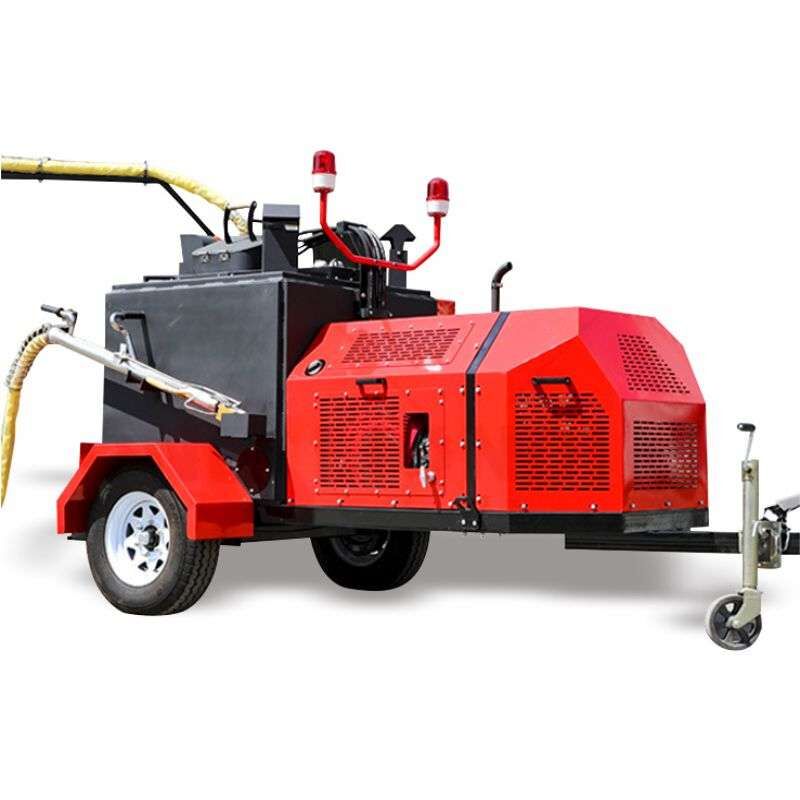

350 Liters Ride on Road Joint Filling Machine
An asphalt crack filler machine is a kind of asphalt crack repair machine that is suitable for filling the cracks in roads, expressways, asphalt, and concrete pavement of municipal, airports, squares, and industrial parks, as well as filling cracks of complicated and irregular pavement. As an indispensable road maintenance machine, it is mainly used for preventive maintenance of road surface diseases and in conjunction with road grooving machines and air blowers.
| Weight | 2000 kg |
|---|---|
| Dimensions | 420 × 175 × 210 cm |
| Power | 15KW |
| Temperature control range | 0-280ºC |
| Electric heating tube | 6-8m Hose |
Details about 350 Liters Ride on Road Joint Filling Machine
A pavement caulking machine is a new type of asphalt pavement caulking equipment. The equipment uses a thermal oil circulation to indirectly heat and melt the asphalt to ensure that the asphalt does not scorch, discolor, and paste the barrel. Hose caulking, manual forward and reverse stirring, uniform mixing, high melting efficiency, electronic ignition mode, automatic heating temperature control, automatic sensor temperature detection, automatic small fire insulation, high-temperature heating molten material, energy saving and time-saving, Ensuring long-term work.
| Model | GF-350A |
| Tank volume | 350L |
| Heating time | 45min |
| Temperature control range | 0-280ºC |
| Discharge capacity | Adjustable |
| Walking style | Automatic |
| Burners | Diesel 445T1 |
| Control System | Full electronic thermostat control |
| Electric heating tube | 6-8m Hose |
| Model | GF-350B |
| Tank volume | 350L |
| Power | 15KW |
| Power Source | Honda GX630 |
| Diesel power | 12-15KW |
| Optional | Hydraulic travel system/Integrated hot air gun system |
| Driving Style | Towing / self-propelled walking |
| Dimension | 4200*1750*2100mm |
| Model | GF-350C |
| Tank volume | 350L |
| Power | 15KW |
| Power Source | Honda GX630 |
| Burners | Diesel 445T1 |
| Vibration damping system | Spring steel vibration damping system |
| Weight | 2400KGS |
| Dimension | 4200*1750*2100mm |
Hand-push light use of flexible and easy to operate, discharge port with a scraper
Strong power: brand engine, strong power, long life, more than 1 time than ordinary products, more than 5 years than ordinary products
Equipped with an Italian imported engine which improves the heat efficiency two or three times and shortens the working time.
Adopt the most advanced technology, which improves the quality of the pouring joint and reduces the cost.
Nine Notes for the Operation of the Asphalt Crack Filling Machine:
1. The operator of the asphalt crack sealing machine must be trained.
2. Workers should wear reflective overalls when working on the road.
3. Before starting working, workers should check the oil circuit and pipeline connection to ensure no leakage when the crack sealing machine is working.
4. Be careful of the high-temperature part of the asphalt crack sealing equipment to avoid burns.
5. When adding the cracking sealing material, pay attention to avoiding the asphalt splash.
6. There should be no water and air when adding heat conduction oil.
7. When operating the road crack sealing machine, please keep an eye on the condition of the furnace and temperature thermometer.
8. If an emergency happens, please turn off the power supply engine in time.
9. Don’t put stones and other debris into the oil tank of the hot asphalt crack filler machine.
