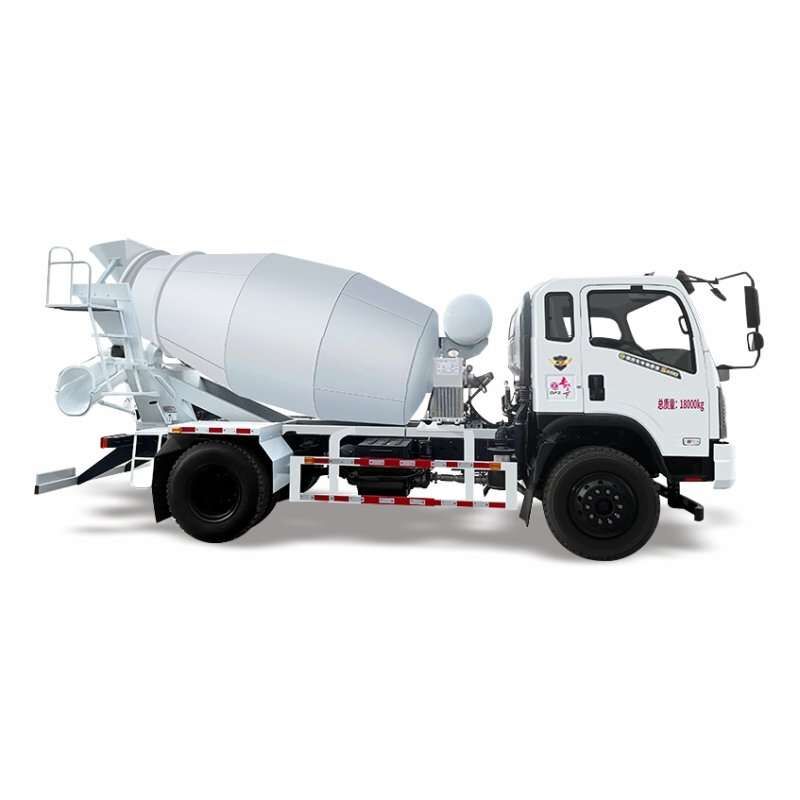

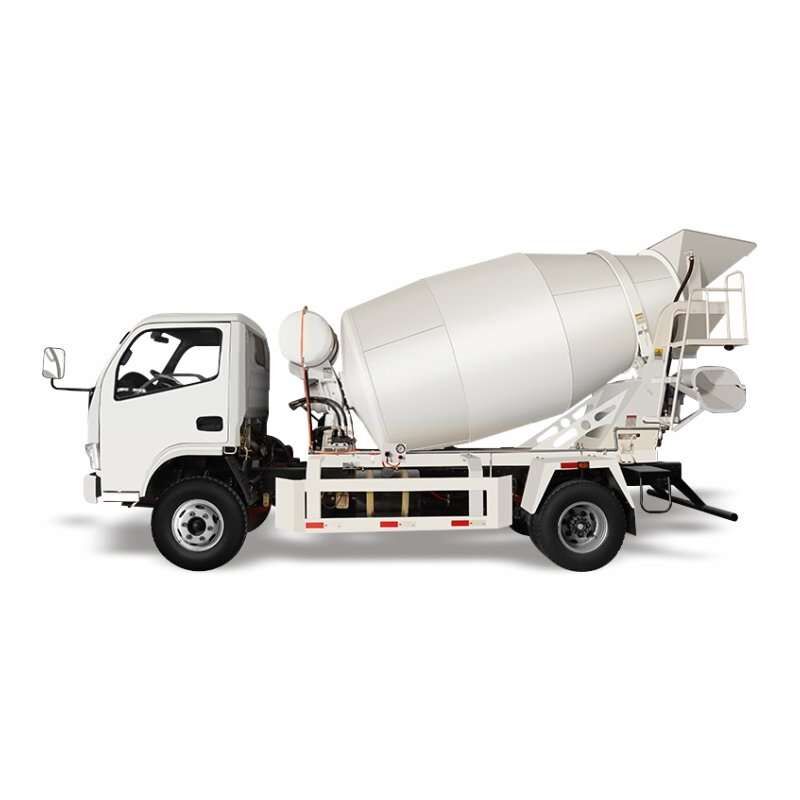

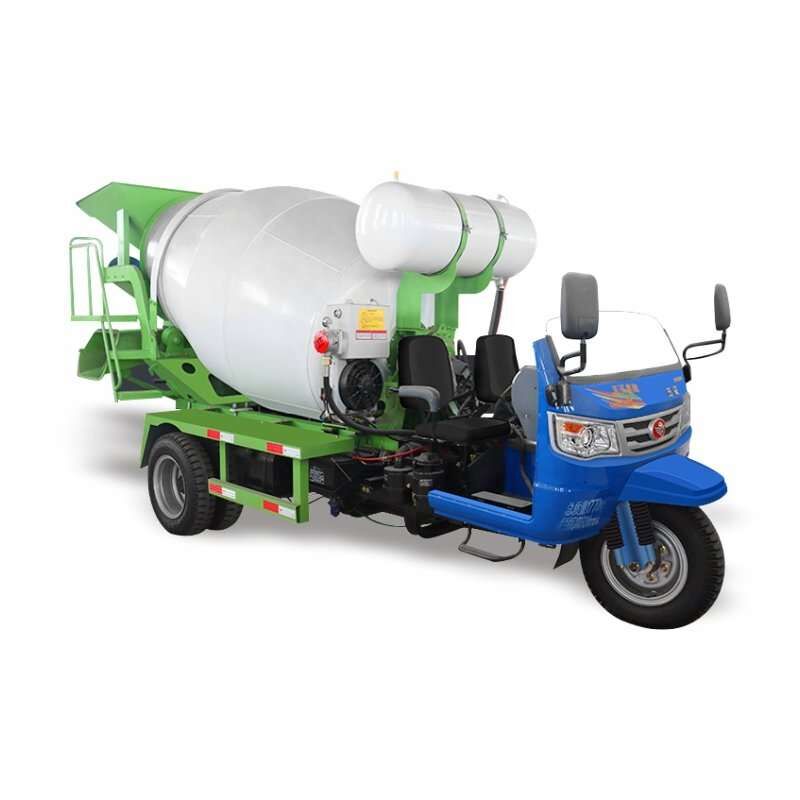

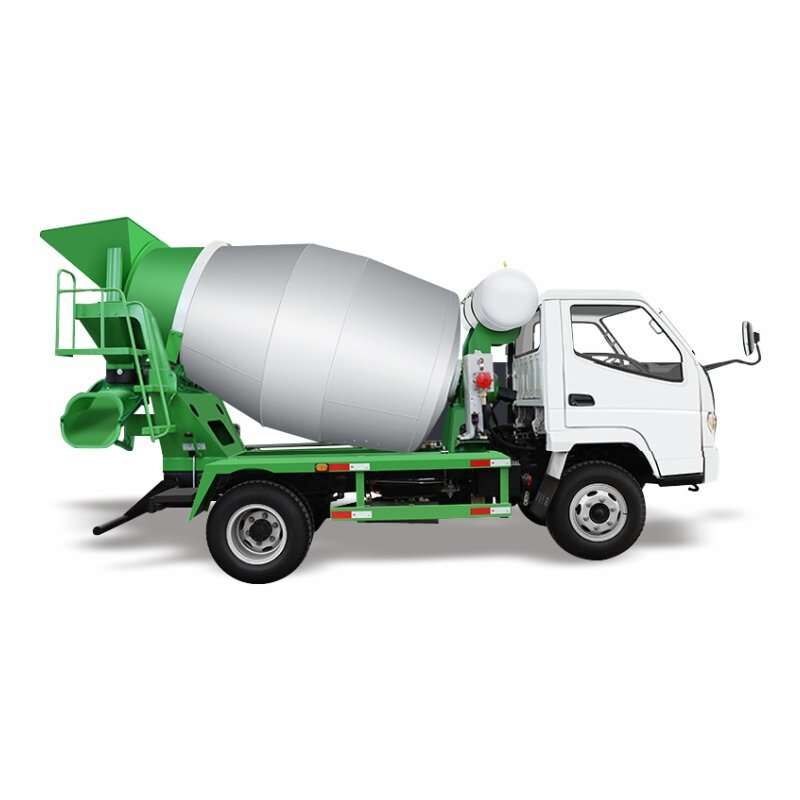

The concrete mixer truck can be widely used in the construction of mines, tunnels, township, village, town highways, water conservancy projects in the tail end of large projects, short-term, small projects, micro, and small mixing plants, subways, national defense, and other projects.
| Weight | 2000 kg |
|---|---|
| Dimensions | 600 × 200 × 300 cm |
| Wheelbase | 3850mm |
| Outer Wheel Width | 2360mm |
| Transmission | 5-Speed Shifting |
Products Description：
| Model | CMT-500 | CMT-300 |
| Power | 32HP-LAIDONG173 | 28HP-CHANGCHAI1125 |
| Rear Axle | 4*2+2+Air Brake | 4*2+2 |
| Front Tire | 650-16 | 650-16 |
| Rear Tire | 700-16Double Tires | 825-16 |
| Battery | 80AH | 80AH |
| Vibration damping | Triple shock absorption | Triple shock absorption |
| Steering Machine | Recirculating ball steering machine | Recirculating ball steering machine |
| Braking | Air brake cut | Oil brake |
| Mixing volume | 1-3m³ | 0.8-1.5m³ |
| Water tank volume | 300L | 300L |
| Dimension | 5500*1900*2700mm | 4800*1800*2500mm |
Adopting welding jigs for overall welding, making the tank more standard and stable operation. Internal and external sandblasting treatment, making the tank more wear-resistant and corrosion-resistant. Adopt thicker steel plate, longer service life.
Product Overview：
Mixing capacity: 2-10m3/batch
Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
Low mobility: The machine is usually fixed in place or pulled at a close distance.
Specialized in mixing slurry, mortar, and flexible concrete. Combined with trucks to transport concrete over long
Feeding: using an excavator
Discarding: the concrete mixture is discharged by reversing the mixing tank
