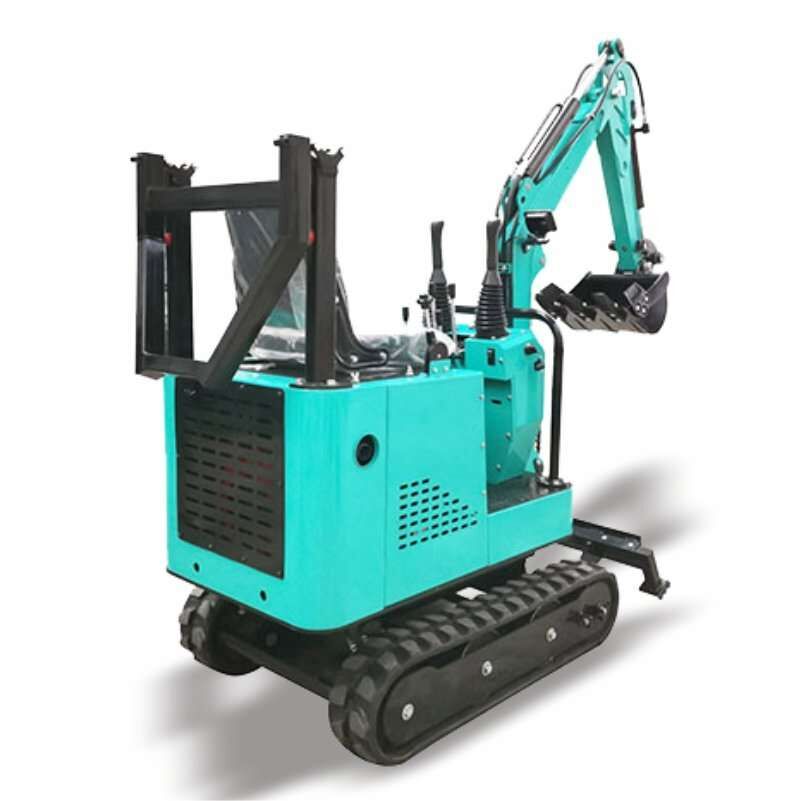

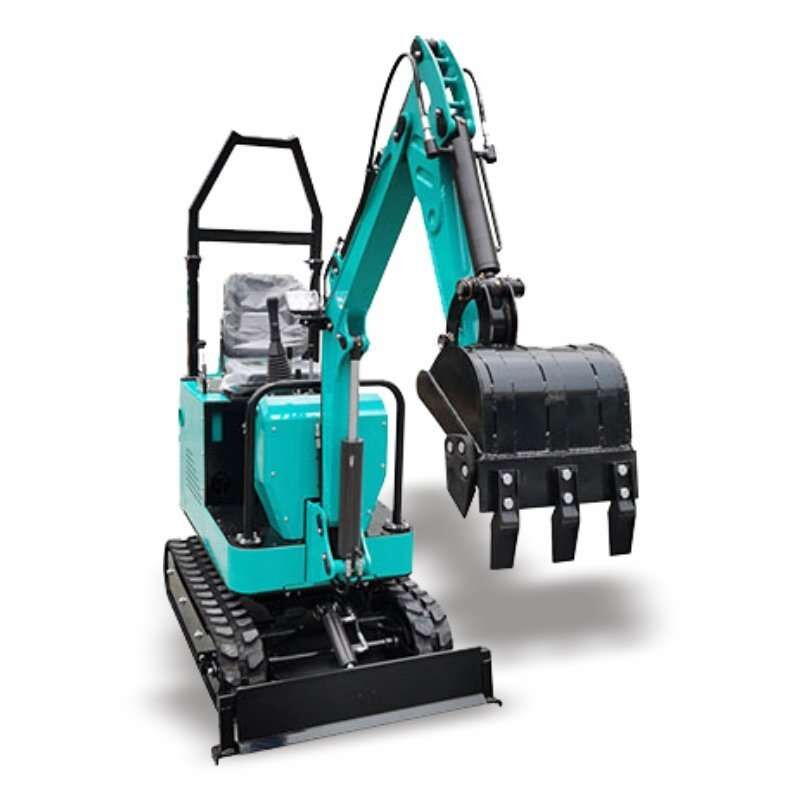

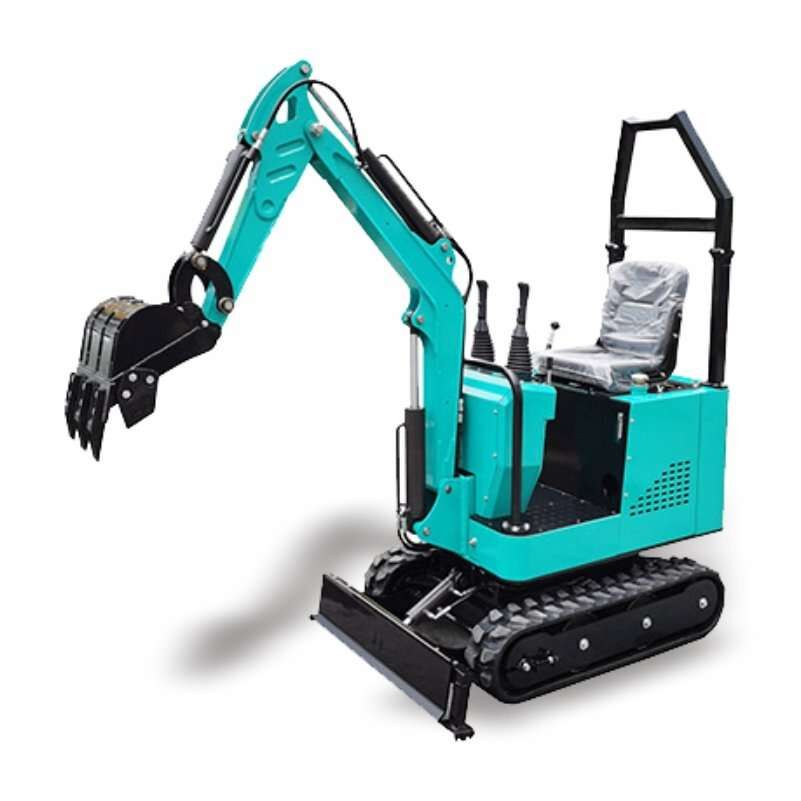

1 Ton Mini Crawler Small Excavator

  • The operation front pipeline is clear. The protective cover protects the pipeline from being destroyed.
  • Unique big arm structure design, not easy to break.Thickened steel plate, stronger bearing capacity.
  • For rubber track which uses Jin Lilong/Yuanchuang brand,a well-known crawler brand in China.
Weight800 kg
Dimensions260 × 88 × 198 cm
Bucket Capacity

0.025 m3

Engine Model

CHANGCHAI 192F

Max. digging force

7.5KN

Travel speed

2.2Km/h

Price Range: $3,599.00 - $1000,Stock:More than 100 units in stock

Details about 1 Ton Mini Crawler Small Excavator

Main Features:

The PC-10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

  1. Engine: CHANGCHAI-192 engine, single-cylinder air-cooled, 12HP, 9KW

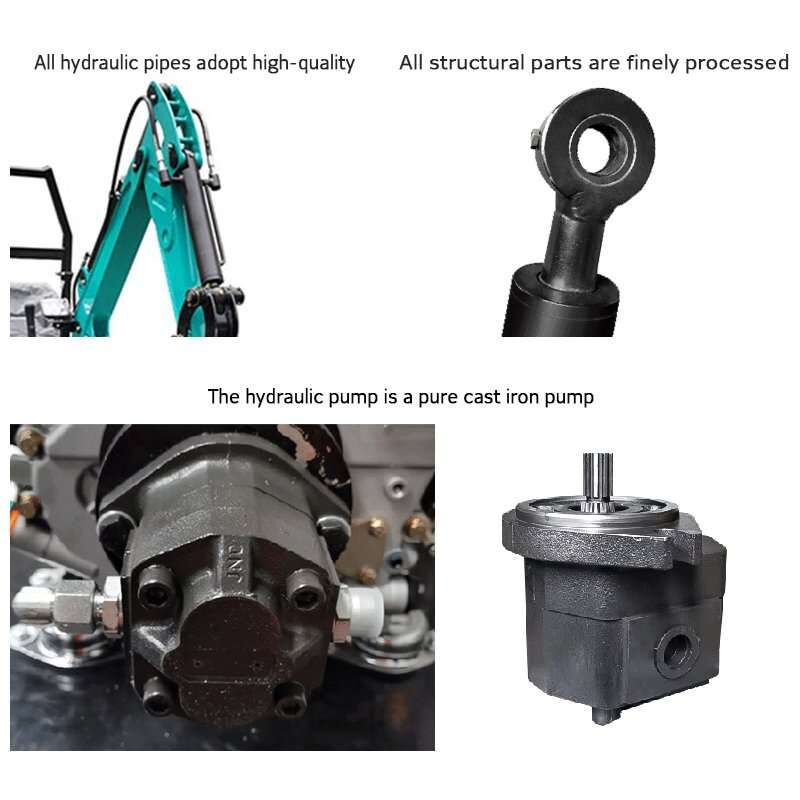

  2. Hydraulic pump (gear pump) is easy to maintain, long life
  3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
  4. Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
  5. Rubber track no damage to cement, tile floor
  6. Diesel level gauge: Check engine oil when it is not easy to start
Model
PC10
Rated power
12HP
Bucket Capacity
0.025 m3
Engine Model
CHANGCHAI 192F
Weight
800 kg
Max. digging force
7.5KN
Pump form
Single gear pump
Working pressure
14Mpa
Swing speed
12 rpm
Travel speed
2.2Km/h
Gradeability
30°
Ground pressure
19Kpa
Total width
880mm
Total height
1380- 1980mm(Folding safety frame)
Total length
2600mm
Min. ground clearance
100mm
Track ground length
1140mm
Track width
150mm
Bulldozer is retractable from
820-1150mm
Max. digging distance
2750mm
Max. digging depth
1450mm
Max. digging height
2600mm
Max. dumping height
1760mm
Min. Swing radius
1100mm
Max. ground clearance of bulldozer
120mm
Max. support depth of bulldozer
120mm

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.

Compact Dimensions
With an overall width of only 880mm, the PC-10 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 800 kg (1,764 lb) weight making easy trailer transportation between sites possible.
Convenient repairs and maintenances.
Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces maintenance costs.

Packing & Shipping

If you need 1-3 units would be a Wooden box package, More than 4 units will loading by the container.

After 3-7 days we will ship your goods when we received the advance payment.

The 20GP can hold 4 (ID-08)mini excavators
