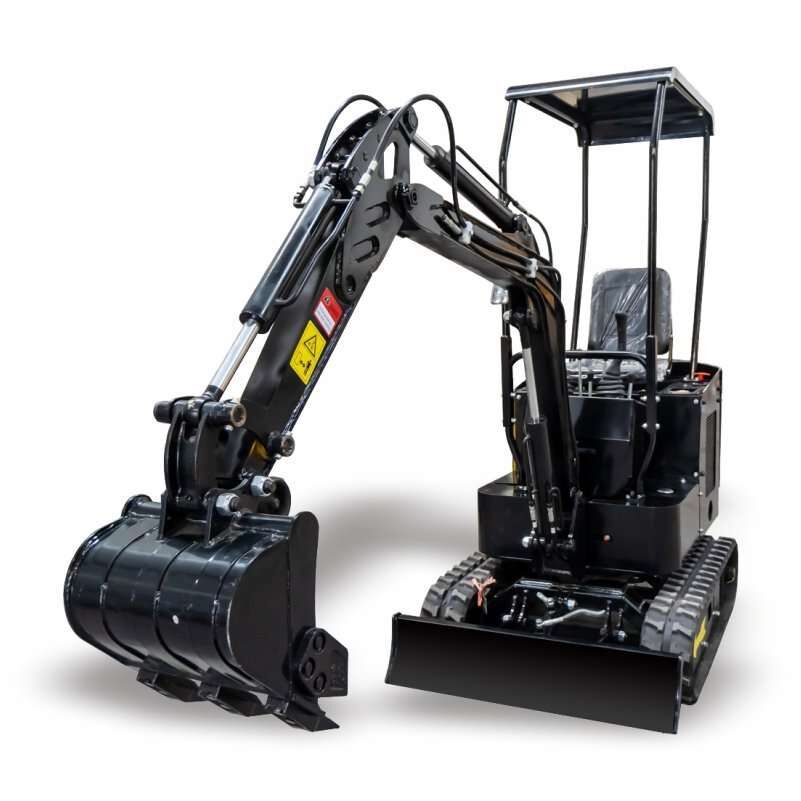

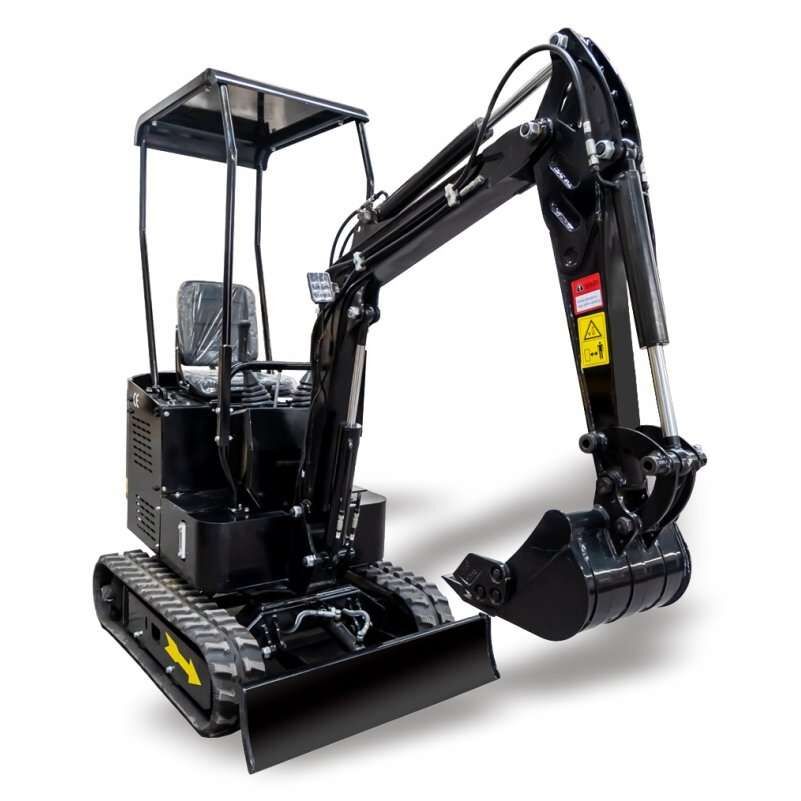

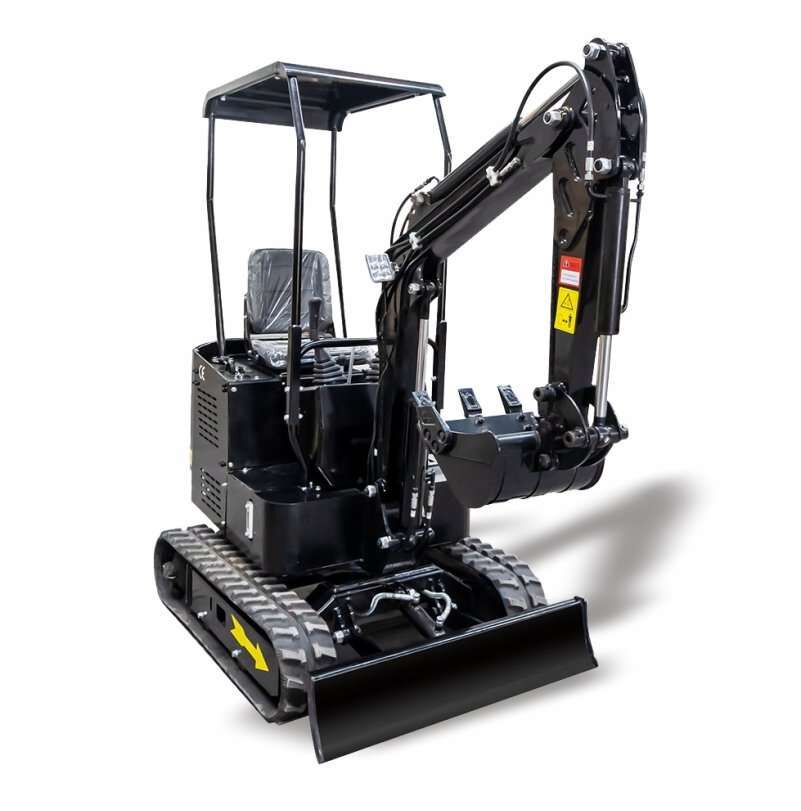

1.2 Ton Mini Excavator Price

  • The important components of the machine from developed countries: are Japan’s main hydraulic pump, Italy’s main valve, Italy’s swing motor, and traveling motor.
  • The operation front pipeline is clear. The protective cover protects the pipeline from being destroyed.
  • 100 kg counterweight is added to the rear of the machine which makes the machine work more stable and powerful




Weight 1200 kg
Dimensions 277 × 90 × 150 cm
Bucket capacity


Bucket width


Rated power


Travel speed


Price Range: $4,899.00 - $1000,Stock:More than 100 units in stock

Details about 1.2 Ton Mini Excavator Price

Main Features:

The ID-12 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

  1. Engine: Kubota engine, single-cylinder air-cooled, 12HP, 9KW
  2. Hydraulic pump (gear pump) is easy to maintain, long life
  3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dozer float features allow for easy clean-up.
  4. Multiple valves under the operating handle, The benefit of less effort and improved control is in your hands!
  5. Rubber track no damage to cement, tile floor
  6. Diesel level gauge: Check engine oil when it is not easy to start
Digging bucket capacity
Bucket width
Kubota D722
Bore stroke
Three cylinders, water cool
Rated power
Main pump
Swing motor
China brand
Traveling motor
China brand USA EATON motor(optional)
Travel speed
12V 60A
Overall dimension( LxWxH)
2770x896x1490 mm
910 mm
The total length of the track
Platform ground clearance
380 mm
Platform back turning radius
784 mm
Chassis width
896 mm
Track width
180 mm
Chassis ground clearance
132 mm
Track height
320 mm
Max Digging depth
1650 mm
Max. Vertical digging depth
1375 mm
Max Digging height
2610 mm
Max. Dumping height
1850 mm
Max, Digging radius on ground
2850 mm
Min. Rotation radius
1330 mm
Max. Upgrade height of bulldozer blade
345 mm
Max. Digging depth of bulldozer blade
255 mm

We also could supply excavator attachment tools including 20mm bucket,40 mm bucket, 60 mm bucket, Breaker hammer, Log grappler, Auger drilling, Ripper, Rake, Tool kit. We also could supply mini digger attachment tools as customer requests.

Compact Dimensions
With an overall width of only 900mm, the ID-12 can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1200 kg (2,646 lb) weight making easy trailer transportation between sites possible.
Convenient repairs and maintenances.
Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces maintenance costs.

Packing & Shipping

If you need 1-3 units would be a Wooden box package, More than 4 units will loading by the container.

After 3-7 days we will ship your goods when we received the advance payment.

The 20GP can hold 4 (ID-08)mini excavators
